- Premium hotwork steel
- Commonly used to actuate slides
- 2-3 week delivery on standard non-stock items
- Custom sizes available upon request

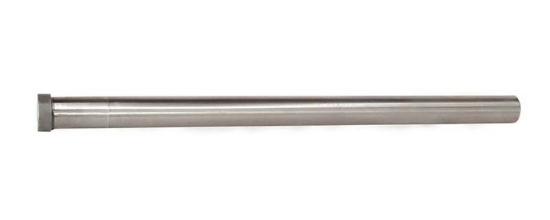

Metric DIN Angle Pins
PCS Metric DIN Angle Pins are manufactured from precision ground hotwork steel and case-hardened 58 - 62 Rc. These pins are commonly used to actuate slides.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | D Pin Diameter | H Head Diameter | L Overall Length | T Head Thickness | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| APD10100 | 10 | 12 | 100 | 3 | $4.94 | ||
| APD10120 | 10 | 12 | 120 | 3 | $6.18 | ||
| APD10140 | 10 | 12 | 140 | 3 | $8.12 | ||
| APD1060 | 10 | 12 | 60 | 3 | $4.35 | ||
| APD1080 | 10 | 12 | 80 | 3 | $4.42 | ||
| APD12100 | 12 | 16 | 100 | 6 | $5.85 | ||
| APD12120 | 12 | 16 | 120 | 6 | $6.41 | ||
| APD12140 | 12 | 16 | 140 | 6 | $7.02 | ||
| APD12160 | 12 | 16 | 160 | 6 | $7.61 | ||
| APD1260 | 12 | 16 | 60 | 6 | $4.83 | ||
| APD1280 | 12 | 16 | 80 | 6 | $5.00 | ||
| APD14100 | 14 | 18 | 100 | 8 | $6.39 | ||
| APD14120 | 14 | 18 | 120 | 8 | $6.63 | ||
| APD14140 | 14 | 18 | 140 | 8 | $8.00 | ||
| APD14160 | 14 | 18 | 160 | 8 | $9.30 | ||
| APD14180 | 14 | 18 | 180 | 8 | $10.48 | ||
| APD14200 | 14 | 18 | 200 | 8 | $10.81 | ||
| APD14210 | 14 | 18 | 210 | 8 | $11.71 | ||
| APD14220 | 14 | 18 | 220 | 8 | $12.03 | ||
| APD14230 | 14 | 18 | 230 | 8 | $17.76 | ||
| APD14250 | 14 | 18 | 250 | 8 | $13.20 | ||
| APD1480 | 14 | 18 | 80 | 8 | $5.32 | ||
| APD16100 | 16 | 20 | 100 | 8 | $6.63 | ||
| APD16120 | 16 | 20 | 120 | 8 | $7.47 | ||
| APD16140 | 16 | 20 | 140 | 8 | $8.64 | ||
| APD16160 | 16 | 20 | 160 | 8 | $9.94 | ||
| APD16180 | 16 | 20 | 180 | 8 | $11.24 | ||
| APD16200 | 16 | 20 | 200 | 8 | $12.54 | ||
| APD16210 | 16 | 20 | 210 | 8 | $12.86 | ||
| APD16220 | 16 | 20 | 220 | 8 | $20.37 | ||
| APD16230 | 16 | 20 | 230 | 8 | $22.57 | ||
| APD16240 | 16 | 20 | 240 | 8 | $14.52 | ||
| APD1680 | 16 | 20 | 80 | 8 | $5.71 | ||
| APD18100 | 18 | 22 | 100 | 8 | $7.45 | ||
| APD18120 | 18 | 22 | 120 | 8 | $8.26 | ||
| APD18140 | 18 | 22 | 140 | 8 | $9.30 | ||
| APD18160 | 18 | 22 | 160 | 8 | $10.48 | ||
| APD18180 | 18 | 22 | 180 | 8 | $11.90 | ||
| APD18200 | 18 | 22 | 200 | 8 | $12.95 | ||
| APD18210 | 18 | 22 | 210 | 8 | $13.20 | ||
| APD18220 | 18 | 22 | 220 | 8 | $19.97 | ||
| APD18230 | 18 | 22 | 230 | 8 | $22.90 | ||
| APD18250 | 18 | 22 | 250 | 8 | $24.79 | ||
| APD1840 | 18 | 22 | 40 | 8 | $12.03 | ||
| APD1860 | 18 | 22 | 60 | 8 | $12.49 | ||
| APD1880 | 18 | 22 | 80 | 8 | $13.20 | ||
| APD20100 | 20 | 24 | 100 | 8 | $7.86 | ||
| APD20110 | 20 | 24 | 110 | 8 | $14.83 | ||
| APD20120 | 20 | 24 | 120 | 8 | $9.56 | ||
| APD20140 | 20 | 24 | 140 | 8 | $10.48 | ||
| APD20160 | 20 | 24 | 160 | 8 | $11.77 | ||
| APD20180 | 20 | 24 | 180 | 8 | $13.20 | ||
| APD20200 | 20 | 24 | 200 | 8 | $15.03 | ||
| APD20210 | 20 | 24 | 210 | 8 | $15.28 | ||
| APD20220 | 20 | 24 | 220 | 8 | $16.38 | ||
| APD20230 | 20 | 24 | 230 | 8 | $17.18 | ||
| APD20240 | 20 | 24 | 240 | 8 | $20.29 | ||
| APD2060 | 20 | 24 | 60 | 8 | $6.63 | ||
| APD22120 | 22 | 26 | 120 | 15 | $11.51 | ||
| APD22140 | 22 | 26 | 140 | 15 | $12.54 | ||
| APD22160 | 22 | 26 | 160 | 15 | $13.59 | ||
| APD22180 | 22 | 26 | 180 | 15 | $15.03 | ||
| APD22200 | 22 | 26 | 200 | 15 | $16.46 | ||
| APD22220 | 22 | 26 | 220 | 15 | $18.62 | ||
| APD22230 | 22 | 26 | 230 | 15 | $19.06 | ||
| APD22240 | 22 | 26 | 240 | 15 | $20.55 | ||
| APD22270 | 22 | 26 | 270 | 15 | $22.96 | ||
| APD22300 | 22 | 26 | 300 | 15 | $26.94 | ||
| APD2280 | 22 | 26 | 80 | 15 | $8.26 | ||
| APD24100 | 24 | 28 | 100 | 15 | $10.60 | ||
| APD24120 | 24 | 28 | 120 | 15 | $12.68 | ||
| APD24140 | 24 | 28 | 140 | 15 | $13.59 | ||
| APD24160 | 24 | 28 | 160 | 15 | $14.89 | ||
| APD24180 | 24 | 28 | 180 | 15 | $16.20 | ||
| APD24200 | 24 | 28 | 200 | 15 | $17.24 | ||
| APD24210 | 24 | 28 | 210 | 15 | $18.35 | ||
| APD24220 | 24 | 28 | 220 | 15 | $20.04 | ||
| APD24230 | 24 | 28 | 230 | 15 | $20.62 | ||
| APD24240 | 24 | 28 | 240 | 15 | $22.64 | ||
| APD24270 | 24 | 28 | 270 | 15 | $24.93 | ||
| APD24300 | 24 | 28 | 300 | 15 | $29.21 | ||
| APD30100 | 30 | 34 | 100 | 15 | $14.62 | ||
| APD30120 | 30 | 34 | 120 | 15 | $16.46 | ||
| APD30160 | 30 | 34 | 160 | 15 | $20.55 | ||
| APD30180 | 30 | 34 | 180 | 15 | $21.41 | ||
| APD30200 | 30 | 34 | 200 | 15 | $24.07 | ||
| APD30220 | 30 | 34 | 220 | 15 | $27.65 | ||
| APD30240 | 30 | 34 | 240 | 15 | $32.21 | ||
| APD30270 | 30 | 34 | 270 | 15 | $35.85 | ||
| APD30300 | 30 | 34 | 300 | 15 | $41.64 | ||
| APD40160 | 40 | 48 | 160 | 15 | $39.03 | ||
| APD40200 | 40 | 48 | 200 | 15 | $46.20 | ||
| APD40240 | 40 | 48 | 240 | 15 | $53.15 | ||
| APD40300 | 40 | 48 | 300 | 15 | $61.22 | ||
| APD42200 | 42 | 48 | 200 | 15 | $42.54 | ||
| APD50160 | 50 | 58 | 160 | 15 | $60.63 | ||
| APD50200 | 50 | 58 | 200 | 15 | $67.27 | ||
| APD50240 | 50 | 58 | 240 | 15 | $75.15 | ||
| APD50300 | 50 | 58 | 300 | 15 | $86.78 | ||
| APD50360 | 50 | 58 | 360 | 15 | $100.85 |
