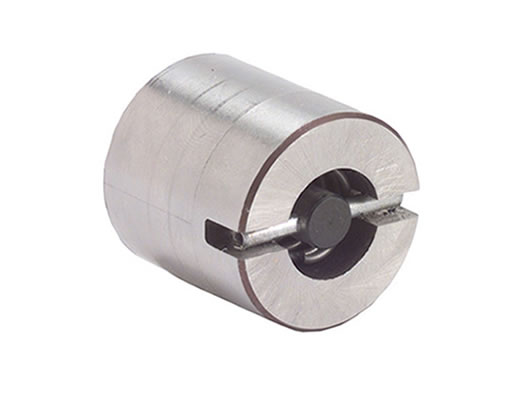

Air Poppet Valves Inch

Air Poppet Valves are designed to break the vacuum that is created when molding thin-walled or deep-drawn parts, such as flower pots, trays and containers. They are precision ground to prevent flash from entering the assembly during injection and manufactured from stainless steel. The center spool is keyed to prevent rotation. Multiple air poppet valves can be used for large or heavy slides as needed.

Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
Item NumberA Body O.D.B Poppet Disc DiameterC Overall LengthNominal DiameterCAD FilesPrice (USD)Quantity
PV-0250.25040.2150.3751/4$116.82
PV-0370.37540.3250.3753/8$116.82
PV-0500.50050.4370.51/2$122.21
PV-0750.75050.6560.753/4$132.97
PV-1001.00060.87511$159.81
PV-1501.50061.3121.51-1/2$213.48
