- Bushings are stocked to dimensions & tolerances shown
- Precision Ground
- Perfect for mold alignment
- Contains internal grease grooves
- Bronze Plated Steel
- For use with leader pins
- Reduce friction
- Made in the U.S.A.

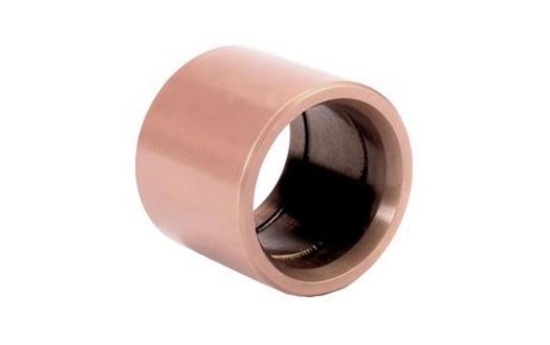

Straight Bushing - Bronze Plated
PCS Bronze-Plated Straight Bushings are precision ground. Nominal diameters ranging from 3/4" to 2-1/2" are available. PCS Bronze-Plated Straight Bushings reduce friction on leader pins and are press-fit into place. Included internal grease grooves help prevent galling which aids in a smooth operation.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Nominal I.D. | I.D. | O.D. | L Overall Length | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| STB 06-07 | 3/4 | 0.7505 | 1.1255 | 7/8 | $21.96 | ||
| STB 06-13 | 3/4 | 0.7505 | 1.1255 | 1-3/8 | $23.18 | ||
| STB 07-13 | 7/8 | 0.8755 | 1.2505 | 1-3/8 | $23.19 | ||
| STB 08-13 | 1 | 1.0005 | 1.3755 | 1-3/8 | $23.99 | ||
| STB 10-13 | 1-1/4 | 1.2505 | 1.6255 | 1-3/8 | $25.60 | ||
| STB 10-17 | 1-1/4 | 1.2505 | 1.6255 | 1-7/8 | $28.86 | ||
| STB 12-13 | 1-1/2 | 1.5005 | 2.0005 | 1-3/8 | $28.46 | ||
| STB 12-17 | 1-1/2 | 1.5005 | 2.0005 | 1-7/8 | $31.32 | ||
| STB 16-37 | 2 | 2.0005 | 2.5005 | 3-7/8 | $56.95 | ||
| STB 20-47 | 2-1/2 | 2.5005 | 3.2505 | 4-7/8 | $99.98 | ||
| STB 24-47 | 3 | 3.0005 | 3.7505 | 4-7/8 | $132.76 |
