- Unit of Measure - Inch
- Plating thickness .008 - .010
- One-piece construction
- Available with or without mounting holes
- Graphite plugs for greaseless applications
- Made in the U.S.A.

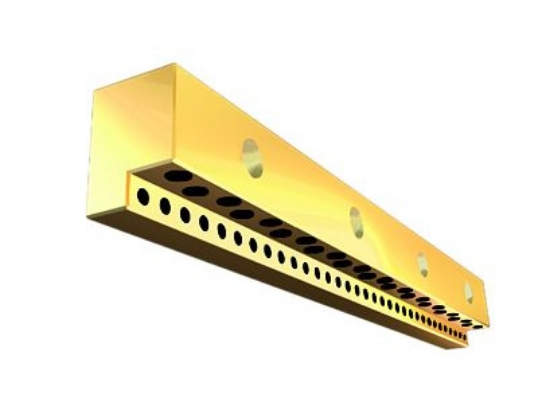

L-Gib Self-Lubricating
PCS Self-Lubricating L-Gibs are used to make custom cams and slides. These L-Gibs are made of aluminum bronze and contain graphite plugs. The graphite plugs eliminate the need for grease which makes these L-Gibs perfect for medical, food grade or high speed applications.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | GH Gib Height | GW Gib Width | H Overall Height | L Overall Length | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| SLL-10-12-5-NH | 0.75 | 0.5 | 0.86 | 15 | $327.09 | ||
| SLL-12-16-6-NH | 0.875 | 0.625 | 1.47 | 24 | $682.62 | ||
| SLL-16-20-8-NH | 1.25 | 0.75 | 1.97 | 32 | $1,032.62 | ||
| SLL-20-24-8-NH | 1.5 | 1 | 2.47 | 48 | $2,182.46 | ||
| SLL-4-6-5 | 0.3125 | 0.1875 | 0.485 | 8.75 | $232.45 | ||
| SLL-4-6-5-NH | 0.3125 | 0.1875 | 0.485 | 8.75 | $232.45 | ||
| SLL-5-8-5-NH | 0.375 | 0.25 | 0.61 | 10 | $230.36 | ||
| SLL-7-10-5-NH | 0.5 | 0.375 | 0.86 | 12.5 | $232.45 |
