- Unit of Measure - Inch
- Increased inlet area allows for higher flow rate
- Eliminates leaks with off set deisgn and prevents flow restriction
- Thin-wall stainless steel tubes
- Made in the U.S.A.

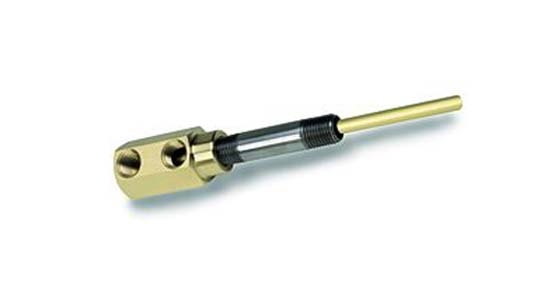

High Flow Cascade Assemblies
High-Flow Cascade Assemblies offer 35% - 65% higher flow rates than standard nipple type cascades. The offset design provides more sealing threads without any pipe interference. Assemblies include brass head, 12" high flow stainless tube and 2" pipe nipples.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Mold Nipple | L Head Length | C Outlet Hole Spread | E Inlet Hole Location | Hex Key Size | Actual Flow Increase % | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| HF141N-4 | 1/4 | 2-3/16 | 1 | 11/32 | 1 | 48 | $20.81 | ||
| HF146N-4 | 1/4 | 1-7/8 | 11/16 | 11/32 | 1 | 48 | $20.50 | ||
| HF16N | 1/16 | 1-1/4 | 1/2 | 1/4 | 5/8 | N/A | $19.87 | ||
| HF181N | 1/8 | 1-15/16 | 1 | 5/16 | 3/4 | 64 | $19.70 | ||
| HF186N | 1/8 | 1-5/8 | 11/16 | 5/16 | 3/4 | 64 | $19.38 | ||
| HF381N-4 | 3/8 | 2-1/4 | 1 | 11/32 | 1-1/8 | 38 | $22.66 |
