- Available in sizes 5/16 to 2
- Clear identification of working load limit (WLL) rated at 90 from thread on body of eyebolt
- Pivots 360 to the direction of the load lift so that the WLL is always at the direction of the load
- Complies with the US-Standard (ASME B30.26)
- Forged material (1.6541) alloy steel wrenched and tempered
- Body and bolt 100% electromagnetic crack tested
- Distinct Florescent pink powder-coating changes its color when temperatures exceed 437F (200C). If the StarPoint reaches temperatures of 752F (400C), the color changes to a deep black with small bubbles, indicating that it has been over-heated and should
- Safety factor of 4:1 in all directions
- Includes RFID Tag

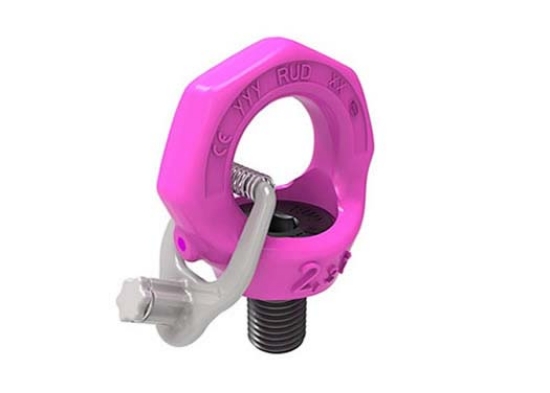

VRS-F StarPoint® Swivel Eyebolt
The VRS-F StarPoint Swivel Eyebolt offers the highest level of safety available with its swivel capability that adjusts to the direction of the load ensuring that the Working Load Limit (WLL) is never diminished. The StarPoint is supplied with an annealed easy-fit key for simple assembly and dissassembly. Simply engage the hexagon socket bolt with the annealed key to tighten or untighten the arrangement. Disengage the key and the StarPoint is rotatable
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Thread Size | WLL ( lbs ) | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|
| VRSF-1126-15430 | 1 1/2 -6UNC | 15430 | $582.61 | ||
| VRSF-1147-9920 | 1 1/4 -7UNC | 9920 | $333.70 | ||
| VRSF-1187-7050 | 1 1/8 -7UNC | 7050 | $256.52 | ||
| VRSF-1213-1650 | 1/2 -13UNC | 1650 | $111.96 | ||
| VRSF-1345-19480 | 1 3/4 -5UNC | 19480 | $710.87 | ||
| VRSF-18-7050 | 1 -8UNC | 7050 | $234.78 | ||
| VRSF-245-26450 | 2 -4.5UNC | 26450 | $983.70 | ||
| VRSF-3410-5070 | 3/4 -10UNC | 5070 | $189.13 | ||
| VRSF-3816-880 | 3/8 -16UNC | 880 | $101.09 | ||
| VRSF-51618-660 | 5/16 -18UNC | 660 | $110.87 | ||
| VRSF-5811-3300 | 5/8 -11UNC | 3300 | $132.61 | ||
| VRSF-71614-880 | 7/16 -14UNC | 880 | $118.48 | ||
| VRSF-789-5070 | 7/8 -9UNC | 5070 | $181.52 | ||
| VRSF-M10 | M10 | 880 | $101.09 | ||
| VRSF-M12 | M12 | 1650 | $111.96 | ||
| VRSF-M14 | M14 | 1650 | $135.87 | ||
| VRSF-M16 | M16 | 3300 | $132.61 | ||
| VRSF-M18 | M18 | 3300 | $151.09 | ||
| VRSF-M20 | M20 | 5070 | $171.74 | ||
| VRSF-M22 | M22 | 5070 | $197.83 | ||
| VRSF-M24 | M24 | 5070 | $234.78 | ||
| VRSF-M30 | M30 | 9920 | $333.70 | ||
| VRSF-M36 | M36 | 15430 | $515.22 | ||
| VRSF-M42 | M42 | 19840 | $718.48 | ||
| VRSF-M48 | M48 | 26450 | $892.39 | ||
| VRSF-M6 | M6 | 220 | $106.52 | ||
| VRSF-M8 | M8 | 660 | $96.74 |
