- 3/4", 1", and 1-1/2" inlet sizes ( NPT )
- 1/4", 3/8" and 1/2" port sizes ( NPT )
- Red & Blue Anodized to identify Supply and Return circuits
- Port spacing for quick disconnect and hose barb fittings
- 150 psi - Max operating pressure
- 210°F - Max operating temperature
- Body Material - Anodized Aluminum
- Divider - Stainless Steel
- O-Rings - EPDM
- Port Location - Sides 1 and 3
- Made in the U.S.A.
Smartflow® Duoflow® Aluminum Manifolds

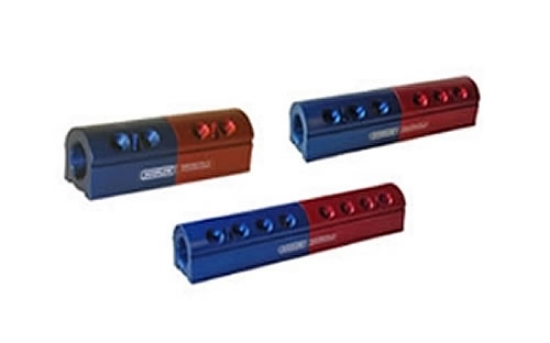

PCS Company provides Smartflow® Duoflow® Aluminum Manifolds that are divided internally with a stainless steel plug and O-rings. The anodized red and blue colors protect the manifold from corrosion and denotes the coolant supply and return sides. This easy identification of the manifold also helps with consistent and repeatable coolant connections for faster mold changes. The Duoflow® manifolds have a short footprint to help mount in small areas and on the mold. The narrow port spacing will only accommodate hose barbs or quick connection fitting.
*NEW* - Use the Manifold Builder for the Duoflow® Aluminum Manifolds to easily configure your manifold plus create interactive 3D visualization and CAD downloads. Once you have configured your manifold, simply contact PCS Company for your quotation.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Inlet Size NPT | Total Ports | Port Size NPT | Ports Per End | A | B | C | D | Overall Length L | Weight (lb) | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12SDA-12-4-13-YZ | 1 1/2" | 12 | 1/2" | 6 | 1.75" | 1.5" | 2.5" | 2.5" | 12" | 6.2 | $262.00 | ||
| 12SDA-16-4-13-YZ | 1 1/2" | 16 | 1/2" | 8 | 1.75" | 1.5" | 2.5" | 2.5" | 15" | 7.5 | $308.00 | ||
| 12SDA-8-4-13-YZ | 1 1/2" | 8 | 1/2" | 4 | 1.75" | 1.5" | 2.5" | 2.5" | 9" | 4.9 | $215.00 | ||
| 6SDA-12-2-13-YZ | 3/4" | 12 | 1/4" | 6 | 1" | 1" | 1.5" | 2" | 8" | 1.4 | $153.00 | ||
| 6SDA-16-2-13-YZ | 3/4" | 16 | 1/4" | 8 | 1" | 1" | 1.5" | 2" | 10" | 1.7 | $177.00 | ||
| 6SDA-8-2-13-YZ | 3/4" | 8 | 1/4" | 4 | 1" | 1" | 1.5" | 2" | 6" | 1.1 | $124.00 | ||
| 8SDA-12-3-13-YZ | 1" | 12 | 3/8" | 6 | 1.25" | 1.25" | 1.875" | 2.25" | 9.75" | 3 | $184.00 | ||
| 8SDA-16-3-13-YZ | 1" | 16 | 3/8" | 8 | 1.25" | 1.25" | 1.875" | 2.25" | 12.25" | 3.7 | $219.00 | ||
| 8SDA-8-3-13-YZ | 1" | 8 | 3/8" | 4 | 1.25" | 1.25" | 1.875" | 2.25" | 7.25" | 2.4 | $151.00 |
