- Provide initial alignment of cavity and core halves
- Press-Fit installation
- Tolerances allow for mating with any standard PCS bushings
- Case hardended steel

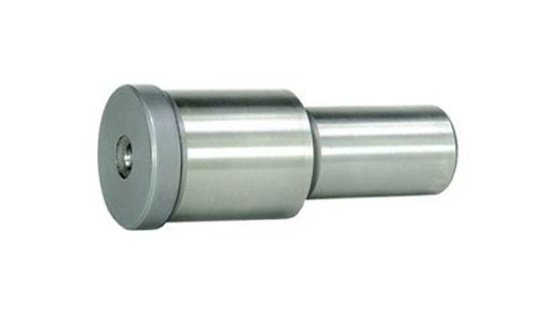

Shoulder Leader Pins - Small Mold Assemblies
Leader Pins provide initial alignment of cavity and core halves. PCS Shoulder Leader Pins for Small Mold Assemblies are manufactured from 4150 steel. Pins come standard with a diameter of 1/2". These leader pins can be used with PCS standard bushings.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | H Head Diameter | L Overall Length | D Nominal Pin Diameter | Actual Pin Diameter | O Press Fit Length | P Pin Length | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| A-0707 | 0.853 | 1-3/4 | 1/2 | 0.499 | 7/8 | 7/8 | $24.25 | ||
| A-0713 | 0.853 | 2-1/4 | 1/2 | 0.499 | 7/8 | 1-3/8 | $24.60 | ||
| A-0717 | 0.853 | 2-3/4 | 1/2 | 0.499 | 7/8 | 1-7/8 | $25.73 | ||
| A-0723 | 0.853 | 3-1/4 | 1/2 | 0.499 | 7/8 | 2-3/8 | $26.09 | ||
| A-1307 | 0.853 | 2-1/4 | 1/2 | 0.499 | 1-3/8 | 7/8 | $24.60 | ||
| A-1313 | 0.853 | 2-3/4 | 1/2 | 0.499 | 1-3/8 | 1-3/8 | $25.39 | ||
| A-1317 | 0.853 | 3-1/4 | 1/2 | 0.499 | 1-3/8 | 1-7/8 | $26.09 | ||
| A-1707 | 0.853 | 2-3/4 | 1/2 | 0.499 | 1-7/8 | 7/8 | $25.03 | ||
| A-1713 | 0.853 | 3-1/4 | 1/2 | 0.499 | 1-7/8 | 1-3/8 | $24.76 | ||
| A-1717 | 0.853 | 3-3/4 | 1/2 | 0.499 | 1-7/8 | 1-7/8 | $24.82 | ||
| A-2307 | 0.853 | 3-1/4 | 1/2 | 0.499 | 2-3/8 | 7/8 | $25.73 | ||
| A-2317 | 0.853 | 4-1/4 | 1/2 | 0.499 | 2-3/8 | 1-7/8 | $22.39 | ||
| A-2713 | 0.853 | 4-1/4 | 1/2 | 0.499 | 2-7/8 | 1-3/8 | $25.11 | ||
| A-2717 | 0.853 | 4-3/4 | 1/2 | 0.499 | 2-7/8 | 1-7/8 | $23.28 |
