- Can be used as an ejector or core pin
- No secondary machining required
- Pins 6” and longer have annealed heads to minimize brittleness and allow for easier machining
- Reduces “dishing” effect common to nitrided pins
- Precision ground to 4 - 10 micro-inch finish
- Surface is hardened to 65-74 Rc
- Core is hardened to 48-55 Rc
- Material Type - H13
- All pins of diameter 3/32" and greater are etched for easy identification
- Unit of Measure - Inch

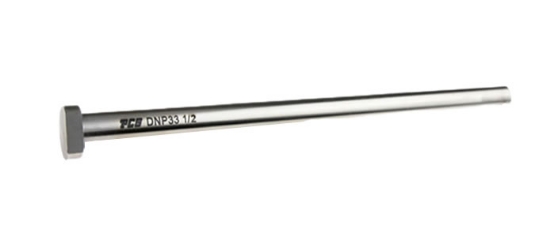

Hardened Throughout® Ejector Pins - D-Head
PCS Company offers Hardened Throughout® D-Head Straight Ejector Pins. Utilizing premium quality hot work steel and a propriety heat treat process, PCS Company's Hardened Throughout® D-Head ejector pins resist chipping like no other pin can. This makes formwork easier, preventing flash and resin waste. When quality is important, choose PCS Company's D-Head or Keyed Ejector pins for industry-standard selections.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | D Nominal Pin Diameter | Actual Pin Diameter | Actual Pin Diameter Tolerance | L Overall Length | H Head Diameter | Annealed Head | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| DHP10-10 | 9/64 | 0.1401 | +.0000 / -.0003 | 10 | 1/4 | Yes | $5.12 | ||
| DHP10-10T | 9/64 | 0.1401 | +.0000 / -.0003 | 10 | 1/4 | Yes | $5.39 | ||
| DHP10-4 | 9/64 | 0.1401 | +.0000 / -.0003 | 4 | 1/4 | No | $4.80 | ||
| DHP10-6 OS | 9/64 | 0.1451 | +.0000 / -.0003 | 6 | 1/4 | Yes | $5.60 | ||
| DHP11-10 | 5/32 | 0.1557 | +.0000 / -.0003 | 10 | 9/32 | Yes | $5.43 | ||
| DHP11-10T | 5/32 | 0.1557 | +.0000 / -.0003 | 10 | 9/32 | Yes | $5.43 | ||
| DHP11-14 | 5/32 | 0.1557 | +.0000 / -.0003 | 14 | 9/32 | Yes | $5.57 | ||
| DHP11-14T | 5/32 | 0.1557 | +.0000 / -.0003 | 14 | 9/32 | Yes | $5.57 | ||
| DHP11-6 | 5/32 | 0.1557 | +.0000 / -.0003 | 6 | 9/32 | Yes | $4.69 | ||
| DHP11-6T | 5/32 | 0.1557 | +.0000 / -.0003 | 6 | 9/32 | Yes | $4.69 | ||
| DHP11-8 | 5/32 | 0.1557 | +.0000 / -.0003 | 8 | 9/32 | Yes | $5.00 | ||
| DHP13-10 | 3/16 | 0.187 | +.0000 / -.0003 | 10 | 3/8 | Yes | $5.15 | ||
| DHP13-10T | 3/16 | 0.187 | +.0000 / -.0003 | 10 | 3/8 | Yes | $5.15 | ||
| DHP13-12 | 3/16 | 0.187 | +.0000 / -.0003 | 12 | 3/8 | Yes | $5.35 | ||
| DHP13-14 | 3/16 | 0.187 | +.0000 / -.0003 | 14 | 3/8 | Yes | $5.61 | ||
| DHP13-14T | 3/16 | 0.187 | +.0000 / -.0003 | 14 | 3/8 | Yes | $5.61 | ||
| DHP13-4 | 3/16 | 0.187 | +.0000 / -.0003 | 4 | 3/8 | No | $4.67 | ||
| DHP13-6 | 3/16 | 0.187 | +.0000 / -.0003 | 6 | 3/8 | Yes | $4.77 | ||
| DHP13-6T | 3/16 | 0.187 | +.0000 / -.0003 | 6 | 3/8 | Yes | $4.77 | ||
| DHP13-8 | 3/16 | 0.187 | +.0000 / -.0003 | 8 | 3/8 | Yes | $5.03 | ||
| DHP14-10T | 13/64 | 0.2026 | +.0000 / -.0003 | 10 | 3/8 | Yes | $5.31 | ||
| DHP15-10 | 7/32 | 0.2183 | +.0000 / -.0003 | 10 | 13/32 | Yes | $5.80 | ||
| DHP15-10T | 7/32 | 0.2183 | +.0000 / -.0003 | 10 | 13/32 | Yes | $5.80 | ||
| DHP15-14 | 7/32 | 0.2183 | +.0000 / -.0003 | 14 | 13/32 | Yes | $5.92 | ||
| DHP15-14T | 7/32 | 0.2183 | +.0000 / -.0003 | 14 | 13/32 | Yes | $5.92 | ||
| DHP15-6 | 7/32 | 0.2183 | +.0000 / -.0003 | 6 | 13/32 | Yes | $6.18 | ||
| DHP15-6T | 7/32 | 0.2183 | +.0000 / -.0003 | 6 | 13/32 | Yes | $6.18 | ||
| DHP15-8 | 7/32 | 0.2183 | +.0000 / -.0003 | 8 | 13/32 | Yes | $6.41 | ||
| DHP17-10 | 1/4 | 0.2495 | +.0000 / -.0003 | 10 | 7/16 | Yes | $6.72 | ||
| DHP17-10T | 1/4 | 0.2495 | +.0000 / -.0003 | 10 | 7/16 | Yes | $6.72 | ||
| DHP17-14 | 1/4 | 0.2495 | +.0000 / -.0003 | 14 | 7/16 | Yes | $7.62 | ||
| DHP17-14T | 1/4 | 0.2495 | +.0000 / -.0003 | 14 | 7/16 | Yes | $7.62 | ||
| DHP17-4 | 1/4 | 0.2495 | +.0000 / -.0003 | 4 | 7/16 | No | $5.03 | ||
| DHP17-6 | 1/4 | 0.2495 | +.0000 / -.0003 | 6 | 7/16 | Yes | $5.88 | ||
| DHP17-6T | 1/4 | 0.2495 | +.0000 / -.0003 | 6 | 7/16 | Yes | $9.72 | ||
| DHP17-8 | 1/4 | 0.2495 | +.0000 / -.0003 | 8 | 7/16 | Yes | $6.51 | ||
| DHP19-10 | 9/32 | 0.2807 | +.0000 / -.0003 | 10 | 7/16 | Yes | $5.96 | ||
| DHP19-10T | 9/32 | 0.2807 | +.0000 / -.0003 | 10 | 7/16 | Yes | $5.96 | ||
| DHP21-10 | 5/16 | 0.312 | +.0000 / -.0003 | 10 | 1/2 | Yes | $7.88 | ||
| DHP21-10T | 5/16 | 0.312 | +.0000 / -.0003 | 10 | 1/2 | Yes | $7.88 | ||
| DHP21-12 | 5/16 | 0.312 | +.0000 / -.0003 | 12 | 1/2 | Yes | $8.58 | ||
| DHP21-14 | 5/16 | 0.312 | +.0000 / -.0003 | 14 | 1/2 | Yes | $9.14 | ||
| DHP21-14T | 5/16 | 0.312 | +.0000 / -.0003 | 14 | 1/2 | Yes | $9.14 | ||
| DHP21-4 | 5/16 | 0.312 | +.0000 / -.0003 | 4 | 1/2 | No | $5.48 | ||
| DHP21-6 | 5/16 | 0.312 | +.0000 / -.0003 | 6 | 1/2 | Yes | $6.75 | ||
| DHP21-6T | 5/16 | 0.312 | +.0000 / -.0003 | 6 | 1/2 | Yes | $6.75 | ||
| DHP21-8 | 5/16 | 0.312 | +.0000 / -.0003 | 8 | 1/2 | Yes | $6.15 | ||
| DHP21-8T | 5/16 | 0.312 | +.0000 / -.0003 | 8 | 1/2 | Yes | $6.15 | ||
| DHP23-10 | 11/32 | 0.3433 | +.0000 / -.0003 | 10 | 9/16 | Yes | $8.59 | ||
| DHP23-10T | 11/32 | 0.3433 | +.0000 / -.0003 | 10 | 9/16 | Yes | $8.59 | ||
| DHP25-10 | 3/8 | 0.3745 | +.0000 / -.0003 | 10 | 5/8 | Yes | $9.33 | ||
| DHP25-10T | 3/8 | 0.3745 | +.0000 / -.0003 | 10 | 5/8 | Yes | $9.33 | ||
| DHP25-14 | 3/8 | 0.3745 | +.0000 / -.0003 | 14 | 5/8 | Yes | $10.87 | ||
| DHP25-14T | 3/8 | 0.3745 | +.0000 / -.0003 | 14 | 5/8 | Yes | $10.87 | ||
| DHP25-6 | 3/8 | 0.3745 | +.0000 / -.0003 | 6 | 5/8 | Yes | $7.56 | ||
| DHP25-6T | 3/8 | 0.3745 | +.0000 / -.0003 | 6 | 5/8 | Yes | $7.56 | ||
| DHP25-8 | 3/8 | 0.3745 | +.0000 / -.0003 | 8 | 5/8 | Yes | $7.70 | ||
| DHP27-10 | 13/32 | 0.4057 | +.0000 / -.0003 | 10 | 11/16 | Yes | $10.03 | ||
| DHP27-10T | 13/32 | 0.4057 | +.0000 / -.0003 | 10 | 11/16 | Yes | $10.03 | ||
| DHP27-4 | 13/32 | 0.4057 | +.0000 / -.0003 | 4 | 11/16 | No | $7.56 | ||
| DHP27-6 | 13/32 | 0.4057 | +.0000 / -.0003 | 6 | 11/16 | Yes | $9.15 | ||
| DHP29-10 | 7/16 | 0.437 | +.0000 / -.0003 | 10 | 11/16 | Yes | $10.82 | ||
| DHP29-10T | 7/16 | 0.437 | +.0000 / -.0003 | 10 | 11/16 | Yes | $10.82 | ||
| DHP29-6 | 7/16 | 0.437 | +.0000 / -.0003 | 6 | 11/16 | Yes | $8.61 | ||
| DHP29-6T | 7/16 | 0.437 | +.0000 / -.0003 | 6 | 11/16 | Yes | $8.61 | ||
| DHP33-10 | 1/2 | 0.4995 | +.0000 / -.0003 | 10 | 3/4 | Yes | $13.54 | ||
| DHP33-10T | 1/2 | 0.4995 | +.0000 / -.0003 | 10 | 3/4 | Yes | $13.54 | ||
| DHP33-12 | 1/2 | 0.4995 | +.0000 / -.0003 | 12 | 3/4 | Yes | $14.87 | ||
| DHP33-14 | 1/2 | 0.4995 | +.0000 / -.0003 | 14 | 3/4 | Yes | $16.47 | ||
| DHP33-14T | 1/2 | 0.4995 | +.0000 / -.0003 | 14 | 3/4 | Yes | $16.47 | ||
| DHP33-4 | 1/2 | 0.4995 | +.0000 / -.0003 | 4 | 3/4 | No | $8.22 | ||
| DHP33-6 | 1/2 | 0.4995 | +.0000 / -.0003 | 6 | 3/4 | Yes | $10.96 | ||
| DHP33-6T | 1/2 | 0.4995 | +.0000 / -.0003 | 6 | 3/4 | Yes | $10.96 | ||
| DHP33-8 | 1/2 | 0.4995 | +.0000 / -.0003 | 8 | 3/4 | Yes | $11.40 | ||
| DHP35-10 | 9/16 | 0.562 | +.0000 / -.0005 | 10 | 13/16 | Yes | $13.12 | ||
| DHP35-12 | 9/16 | 0.562 | +.0000 / -.0005 | 12 | 13/16 | Yes | $16.12 | ||
| DHP35-6 | 9/16 | 0.562 | +.0000 / -.0003 | 6 | 13/16 | Yes | $8.28 | ||
| DHP35-6T | 9/16 | 0.562 | +.0000 / -.0003 | 6 | 13/16 | Yes | $8.19 | ||
| DHP35-8 | 9/16 | 0.562 | +.0000 / -.0005 | 8 | 13/16 | Yes | $11.90 | ||
| DHP37-10 | 5/8 | 0.6245 | +.0000 / -.0005 | 10 | 7/8 | Yes | $20.69 | ||
| DHP37-10T | 5/8 | 0.6245 | +.0000 / -.0005 | 10 | 7/8 | Yes | $17.70 | ||
| DHP37-14 | 5/8 | 0.6245 | +.0000 / -.0005 | 14 | 7/8 | Yes | $26.48 | ||
| DHP37-14T | 5/8 | 0.6245 | +.0000 / -.0005 | 14 | 7/8 | Yes | $26.48 | ||
| DHP37-4 | 5/8 | 0.6245 | +.0000 / -.0005 | 4 | 7/8 | No | $10.72 | ||
| DHP37-6 | 5/8 | 0.6245 | +.0000 / -.0005 | 6 | 7/8 | Yes | $13.46 | ||
| DHP37-6T | 5/8 | 0.6245 | +.0000 / -.0005 | 6 | 7/8 | Yes | $13.82 | ||
| DHP41-10 | 3/4 | 0.7495 | +.0000 / -.0005 | 10 | 1 | Yes | $29.18 | ||
| DHP41-10T | 3/4 | 0.7495 | +.0000 / -.0005 | 10 | 1 | Yes | $29.18 | ||
| DHP41-14 | 3/4 | 0.7495 | +.0000 / -.0005 | 14 | 1 | Yes | $39.42 | ||
| DHP41-14T | 3/4 | 0.7495 | +.0000 / -.0005 | 14 | 1 | Yes | $28.28 | ||
| DHP41-6 | 3/4 | 0.7495 | +.0000 / -.0005 | 6 | 1 | Yes | $18.68 | ||
| DHP41-6T | 3/4 | 0.7495 | +.0000 / -.0005 | 6 | 1 | Yes | $17.82 | ||
| DHP4-4 | 3/64 | 0.0464 | +.0000 / -.0003 | 4 | 5/32 | No | $10.28 | ||
| DHP45-6 | 7/8 | 0.8745 | +.0000 / -.0005 | 6 | 1.125 | Yes | $24.90 | ||
| DHP45-8 | 7/8 | 0.8745 | +.0000 / -.0005 | 8 | 1.125 | Yes | $31.86 | ||
| DHP47-10 | 1 | 0.9995 | +.0000 / -.0005 | 10 | 1.25 | Yes | $50.70 | ||
| DHP47-10T | 1 | 0.9995 | +.0000 / -.0005 | 10 | 1.25 | Yes | $35.63 | ||
| DHP47-12 | 1 | 0.9995 | +.0000 / -.0005 | 12 | 1.25 | Yes | $43.66 | ||
| DHP47-14 | 1 | 0.9995 | +.0000 / -.0005 | 14 | 1.25 | Yes | $68.68 | ||
| DHP47-14T | 1 | 0.9995 | +.0000 / -.0005 | 14 | 1.25 | Yes | $46.62 | ||
| DHP47-6 | 1 | 0.9995 | +.0000 / -.0005 | 6 | 1.25 | Yes | $32.69 | ||
| DHP47-6T | 1 | 0.9995 | +.0000 / -.0005 | 6 | 1.25 | Yes | $26.39 | ||
| DHP47-8 | 1 | 0.9995 | +.0000 / -.0005 | 8 | 1.25 | Yes | $31.46 | ||
| DHP7-4 | 3/32 | 0.0933 | +.0000 / -.0003 | 4 | 7/32 | No | $6.17 | ||
| DHP7-4T | 3/32 | 0.0933 | +.0000 / -.0003 | 4 | 7/32 | No | $6.17 | ||
| DHP7-6 | 3/32 | 0.0933 | +.0000 / -.0003 | 6 | 7/32 | Yes | $7.68 | ||
| DHP7-6T | 3/32 | 0.0933 | +.0000 / -.0003 | 6 | 7/32 | Yes | $7.68 | ||
| DHP9-10 | 1/8 | 0.1245 | +.0000 / -.0003 | 10 | 1/4 | Yes | $4.46 | ||
| DHP9-10T | 1/8 | 0.1245 | +.0000 / -.0003 | 10 | 1/4 | Yes | $4.46 | ||
| DHP9-12 | 1/8 | 0.1245 | +.0000 / -.0003 | 12 | 1/4 | Yes | $5.07 | ||
| DHP9-14 | 1/8 | 0.1245 | +.0000 / -.0003 | 14 | 1/4 | Yes | $4.82 | ||
| DHP9-14T | 1/8 | 0.1245 | +.0000 / -.0003 | 14 | 1/4 | Yes | $4.82 | ||
| DHP9-6 | 1/8 | 0.1245 | +.0000 / -.0003 | 6 | 1/4 | Yes | $4.09 | ||
| DHP9-6T | 1/8 | 0.1245 | +.0000 / -.0003 | 6 | 1/4 | Yes | $4.09 | ||
| DHP9-8 | 1/8 | 0.1245 | +.0000 / -.0003 | 8 | 1/4 | Yes | $4.89 |
