DHP27-10T

$10.03

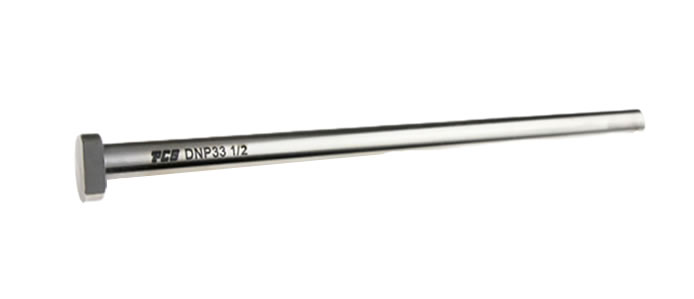

PCS Companys Tangent, D-Head, Hardened Throughout® Ejector Pin, Straight - 13/32" diameter

Qty:

Can be used as an ejector or core pin
No secondary machining required
Pins 6” and longer have annealed heads to minimize brittleness and allow for easier machining
Reduces “dishing” effect common to nitrided pins
Precision ground to 4 - 10 micro-inch finish
Surface is hardened to 65-74 Rc
Core is hardened to 48-55 Rc
Material Type - H13
All pins of diameter 3/32" and greater are etched for easy identification
Unit of Measure - Inch

The actual product may differ slightly from the image displayed on the website.

Product specifications

D Nominal Pin Diameter	13/32
Actual Pin Diameter	0.4057
Actual Pin Diameter Tolerance	+.0000 / -.0003
L Overall Length	10
H Head Diameter	11/16
Annealed Head	Yes
