- 7 ANGLE OPTIONS (7°,10°,12°,15°,18°,20° and 22°)
- Hardness: 58-60 HRc
- ASSEMBLE FROM THE FACE OF THE MOLD PLATE
- Unit of Measure - millimeters

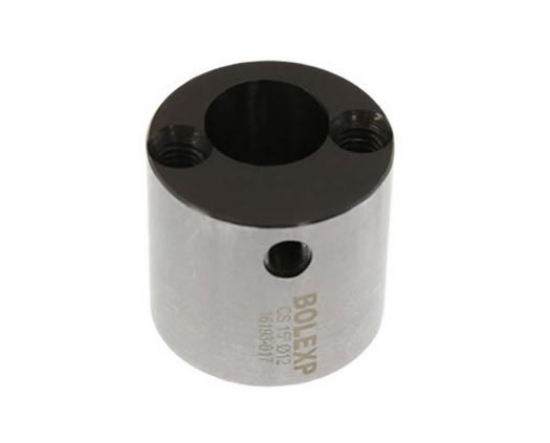

Bolexp Metric DIN Angle Pin Inserts
PCS Company offers Bolexp Metric DIN Angle Pin Inserts in 7 different angles ranging from 7° to 22°. Mounting and unmounting operations are made through the front side of the mold plate, which makes it easy to exchange when needed, improving its mechanization agility. By using the BOLEXP angle pin assembly, we minimize the risk of mold cooling circuit interference.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | d1 Pin Diameter | a Angle | d2 Insert O.D. | L2 Insert Length | h Pin Hole Offset Distance | j Mounting Hole Spread | M Mounting Screw | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| CS0712 | 12 | 7 | 24 | 22 | 2.5 | 17.5 | M4 | $104.53 | ||
| CS0716 | 16 | 7 | 30 | 28 | 3 | 22.5 | M5 | $107.66 | ||
| CS0720 | 20 | 7 | 38 | 36 | 4 | 28 | M6 | $115.40 | ||
| CS0725 | 25 | 7 | 48 | 45 | 5 | 36 | M8 | $136.06 | ||
| CS0730 | 30 | 7 | 58 | 55 | 6 | 43 | M10 | $154.47 | ||
| CS1012 | 12 | 10 | 24 | 22 | 2.5 | 17.5 | M4 | $104.53 | ||
| CS1016 | 16 | 10 | 30 | 28 | 3 | 22.5 | M5 | $107.66 | ||
| CS1020 | 20 | 10 | 38 | 36 | 4 | 28 | M6 | $115.40 | ||
| CS1025 | 25 | 10 | 48 | 45 | 5 | 36 | M8 | $136.06 | ||
| CS1030 | 30 | 10 | 58 | 55 | 6 | 43 | M10 | $154.47 | ||
| CS1212 | 12 | 12 | 24 | 22 | 2.5 | 17.5 | M4 | $104.53 | ||
| CS1216 | 16 | 12 | 30 | 28 | 3 | 22.5 | M5 | $107.66 | ||
| CS1220 | 20 | 12 | 38 | 36 | 4 | 28 | M6 | $115.40 | ||
| CS1225 | 25 | 12 | 48 | 45 | 5 | 36 | M8 | $136.06 | ||
| CS1230 | 30 | 12 | 58 | 55 | 6 | 43 | M10 | $154.47 | ||
| CS1512 | 12 | 15 | 24 | 22 | 2.5 | 17.5 | M4 | $104.53 | ||
| CS1516 | 16 | 15 | 30 | 28 | 3 | 22.5 | M5 | $107.66 | ||
| CS1520 | 20 | 15 | 38 | 36 | 4 | 28 | M6 | $115.40 | ||
| CS1525 | 25 | 15 | 48 | 45 | 5 | 36 | M8 | $136.06 | ||
| CS1530 | 30 | 15 | 58 | 55 | 6 | 43 | M10 | $154.47 | ||
| CS1812 | 12 | 18 | 24 | 22 | 2.5 | 17.5 | M4 | $104.53 | ||
| CS1816 | 16 | 18 | 30 | 28 | 3 | 22.5 | M5 | $107.66 | ||
| CS1820 | 20 | 18 | 38 | 36 | 4 | 28 | M6 | $115.40 | ||
| CS1825 | 25 | 18 | 48 | 45 | 5 | 36 | M8 | $136.06 | ||
| CS1830 | 30 | 18 | 58 | 55 | 6 | 43 | M10 | $154.47 | ||
| CS2012 | 12 | 20 | 24 | 22 | 2.5 | 17.5 | M4 | $104.53 | ||
| CS2016 | 16 | 20 | 30 | 28 | 3 | 22.5 | M5 | $107.66 | ||
| CS2020 | 20 | 20 | 38 | 36 | 4 | 28 | M6 | $115.40 | ||
| CS2025 | 25 | 20 | 48 | 45 | 5 | 36 | M8 | $136.06 | ||
| CS2030 | 30 | 20 | 58 | 55 | 6 | 43 | M10 | $154.47 | ||
| CS2212 | 12 | 22 | 24 | 22 | 2.5 | 17.5 | M4 | $104.53 | ||
| CS2216 | 16 | 22 | 30 | 28 | 3 | 22.5 | M5 | $107.66 | ||
| CS2220 | 20 | 22 | 38 | 36 | 4 | 28 | M6 | $115.40 | ||
| CS2225 | 25 | 22 | 48 | 45 | 5 | 36 | M8 | $136.06 | ||
| CS2230 | 30 | 22 | 58 | 55 | 6 | 43 | M10 | $154.47 |
