- Unit of Measure - Inch
- Replacement blocks available
- Replacement hardware available
- 90° inlet available
- Maximum operating temperature – 400F/204C
- Made in the U.S.A.

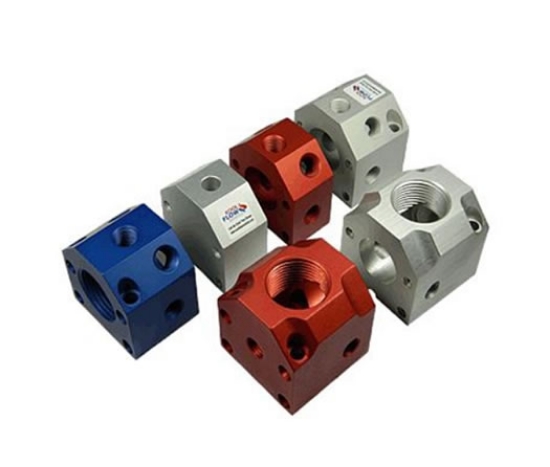

FB2 Individual Components
The modular design of the Kool Flow Manifold™ allows for changes to be made at any time according to your needs. FB2 Series manifolds have a 1" inlet hole size with the option of either a 1/4" or 3/8" outlet hole size. Brass Kool Flow Manifolds are available for pH levels above 7.8. Send all Kool Flow Manifold requests for quote to customcomponents@pcs-company.com.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Description | Inlet Hole Size | Outlet Hole Size | Block Color | No. of Outlets | Mounting Hole Size | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| FB2-FB-1-4-B | First Block-Straight | 1 | 1/4 | Blue | 5 | 1/4 | $42.98 | ||
| FB2-FB-1-4-R | First Block-Straight | 1 | 1/4 | Red | 5 | 1/4 | $42.98 | ||
| FB2-FB-1-6-B | First Block-Straight | 1 | 3/8 | Blue | 5 | 1/4 | $42.98 | ||
| FB2-FB-1-6-R | First Block-Straight | 1 | 3/8 | Red | 5 | 1/4 | $42.98 | ||
| FB2-FB90-1-4-B | First Block-90° | 1 | 1/4 | Blue | 3 | 1/4 | $53.78 | ||
| FB2-FB90-1-4-R | First Block-90° | 1 | 1/4 | Red | 3 | 1/4 | $53.78 | ||
| FB2-FB90-1-6-B | First Block-90° | 1 | 3/8 | Blue | 3 | 1/4 | $53.78 | ||
| FB2-FB90-1-6-R | First Block-90° | 1 | 3/8 | Red | 3 | 1/4 | $53.78 | ||
| FB2-MIDB-1 | Mid Block | N/A | N/A | Silver | N/A | N/A | $30.30 | ||
| FB2-MOD-4-B | Mod Block | 1 | 1/4 | Blue | 5 | N/A | $30.49 | ||
| FB2-MOD-4-R | Mod Block | 1 | 1/4 | Red | 5 | N/A | $30.49 | ||
| FB2-MOD-6-B | Mod Block | 1 | 3/8 | Blue | 5 | N/A | $30.49 | ||
| FB2-MOD-6-R | Mod Block | 1 | 3/8 | Red | 5 | N/A | $30.49 | ||
| FB2-OR-1 | Viton O-Ring | N/A | N/A | N/A | N/A | N/A | $0.99 | ||
| FB2-SHCS-05 | #10-32 X 3/4” SS SHCS | N/A | N/A | N/A | N/A | N/A | $0.57 | ||
| FB2-SHCS-1 | #10-32 x 1" SS SHCS | N/A | N/A | N/A | N/A | N/A | $0.60 | ||
| FB2-SHCS-2 | #10-32 x 1-1/4" SS SHCS | N/A | N/A | N/A | N/A | N/A | $1.53 | ||
| FB2-SHCS-MNT | 1/4"-20 x 2" SS SHCS | N/A | N/A | N/A | N/A | N/A | $0.50 | ||
| FB2-TR-1 | #10-32 Tie Rod (Single Block) | N/A | N/A | N/A | N/A | N/A | $1.04 |
