- Unit of Measure - Inch
- Made from solid brass
- Brass pipe plug included
- Must be used with standard brass tubes
- Made in the U.S.A.

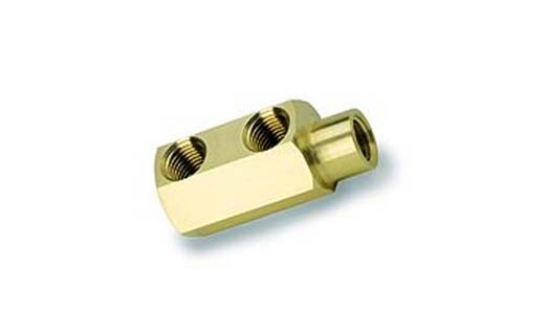

Brass Tube Replacement Heads
Replacement Heads for Brass Tubes come standard in solid brass. These heads must be used with standard brass tubes.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Close | Head Length | Hex Size | Outlet Hole Spread | Pilot Diameter | Pipe Tap Size (NPT) | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| HC130 | 21/64 | 1-11/32 | 7/8 | 11/16 | 9/32 | 1/8 | $8.88 | ||
| HC130A | 21/64 | 1-21/32 | 7/8 | 1 | 9/32 | 1/8 | $8.99 | ||
| HC131 | 21/64 | 1-11/32 | 1 | 11/16 | 7/32 | 1/8 | $8.55 | ||
| HC131A | 21/64 | 1-11/32 | 1 | 11/16 | 7/32 | 1/4 | $9.39 | ||
| HC132 | 21/64 | 1-21/32 | 1 | 1 | 7/16 | 1/8 | $9.51 | ||
| HC132A | 21/64 | 1-21/32 | 1 | 1 | 7/16 | 1/4 | $9.50 | ||
| HC136A | 11/32 | 1-11/16 | 1 | 1 | 13/32 | 1/4 | $9.57 | ||
| HC138A | 13/32 | 1-13/16 | 1-1/4 | 1 | 9/16 | 1/4 | $21.61 | ||
| HC140A | 1/2 | 2-1/4 | 1-1/2 | 1/14 | 3/4 | 3/8 | $28.30 |
