- Connection Sizes - 1" & 2"NPT(F)
- Housing Material - Brass
- Pall Ring Material - Stainless Steel
- Venting Unit Materials - Stainless Steel, EPDM, Viton, Engineered Plastics
- Operating Pressure Max - 150psi (10bar)
- Operating Temperature Max. - 240°F (115°C)
- Operating Temperature Min. - 25°F(-4°C)
- Media - Water or Water/Glycol
- Max. Velocity - 5ft/sec
- Made in the U.S.A.

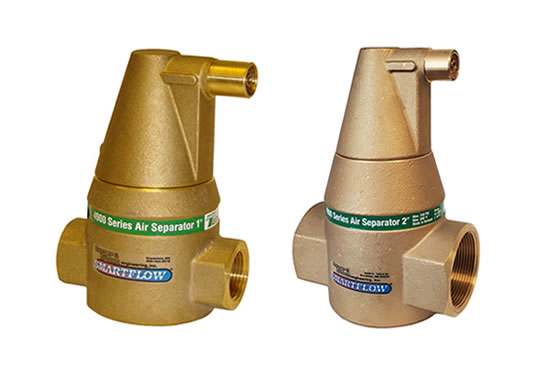

SWAP®Valve TACO Air Seperator
PCS Company offers the TACO® 4900 Series Air Separators which are designed for the complete elimination of air from closed loop water circulating systems. Small air bubbles and micro-bubbles adhere to surfaces on pall rings in the water path and join together to form larger air bubbles. The combined bubbles travel up through the water and into the conical air chamber to be released by the vent at the top. Recommended for use with SMARTFLOW® SWAP®Valves in a closed loop cooling water system.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Connection Size | A | B Height | C Width | Weight | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|
| 49-100 | 1" | 5-1/2" | 6-3/4" | 4-3/8" | 4.5 lbs | $197.00 | ||
| 49-200 | 2" | 6-5/8" | 8-7/16" | 5-3/16" | 6.0 lbs | $465.00 |
