- Unit of Measure: Inch
- BSPT Threads
- Divert the flow of water or coolant
- Separates waterlines into multiple channels
- Flush-seal (7/8" taper) brass pipe plug standard
- 300% more wrenching power from solderless joint
- Spiral design creates turbulent water flow for more efficient cooling
- BSPT Identification Ring
- Made in U.S.A.

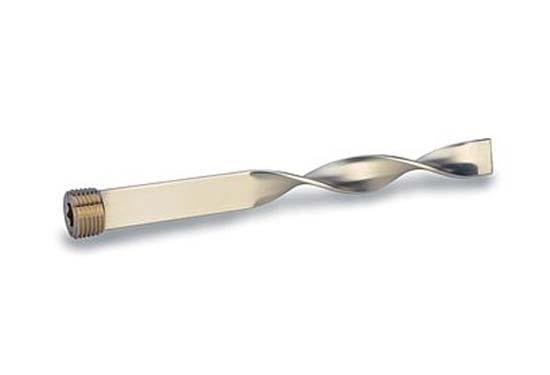

BSPT Brass Spiral Baffles
PCS Company's Brass Spiral Baffles are designed to divert the flow of water or coolant in the mold. The spiral design lengthens the cooling path which keeps the baffle centered, creates turbulent flow and provides up to an 11% greater flow rate. Constructed with a solid brass solderless joint allows for more wrenching power. Select from standard lengths ranging from 4" to 24". Threads are BSPT.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Overall Length | Straight Length | Plug Size (BSPT) | Drill Diameter | Blade Width | Blade Thickness | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| SB-1000-16-BSP | 16 | 5 | 1-11 | 1-1/8 | 1.125 | 0.093 | $25.57 | ||
| SB-1000-24-BSP | 24 | 8 | 1-11 | 1-1/8 | 1.125 | 0.093 | $29.46 | ||
| SB-125-12-BSP | 12 | 6 | 1/8-28 | 5/16 | 0.312 | 0.057 | $7.00 | ||
| SB-125-4-BSP | 4 | 2 | 1/8-28 | 5/16 | 0.312 | 0.057 | $5.45 | ||
| SB-125-8-BSP | 8 | 4 | 1/8-28 | 5/16 | 0.312 | 0.057 | $6.21 | ||
| SB-250-10-BSP | 10 | 4 | 1/4-19 | 27/64 | 0.421 | 0.085 | $7.33 | ||
| SB-250-15-BSP | 15 | 6 | 1/4-19 | 27/64 | 0.421 | 0.085 | $8.86 | ||
| SB-250-5-BSP | 5 | 2 | 1/4-19 | 27/64 | 0.421 | 0.085 | $6.18 | ||
| SB-375-12-BSP | 12 | 4 | 3/8-19 | 9/16 | 0.562 | 0.093 | $9.95 | ||
| SB-375-18-BSP | 18 | 6 | 3/8-19 | 9/16 | 0.562 | 0.093 | $12.12 | ||
| SB-375-6-BSP | 6 | 2 | 3/8-19 | 9/16 | 0.562 | 0.093 | $7.99 | ||
| SB-500-16-BSP | 16 | 5 | 1/2-14 | 11/16 | 0.687 | 0.093 | $12.53 | ||
| SB-500-8-BSP | 8 | 3 | 1/2-14 | 11/16 | 0.687 | 0.093 | $9.43 | ||
| SB-750-12-BSP | 12 | 4 | 3/4-14 | 29/32 | 0.906 | 0.093 | $15.10 | ||
| SB-750-20-BSP | 20 | 6 | 3/4-14 | 29/32 | 0.906 | 0.093 | $19.88 |
