- Eliminate Stringing and Drooling
- Eliminate the Need for Excessive MeltDecompression
- Operate the Clamp and Screw Simultaneously
- Fits on Most Nozzle Bodies
- Easy to Install and Remove
- Made in USA
- 1/2" or 3/4" Radius
- 7/8"-14 or M24-1.5 Threads

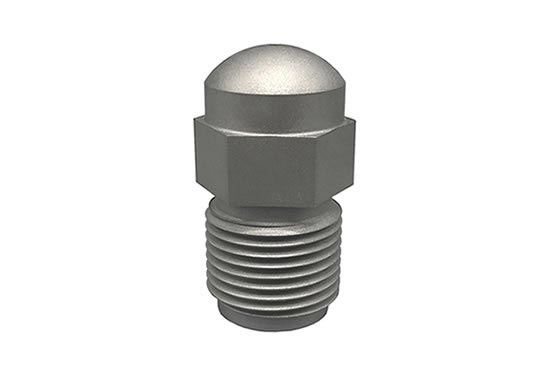

Mini-Shut™ Nozzle Tips
PCS Company offers the Mini-Shut™ Nozzle Tip which is the World's Smallest Shut Off nozzle tip. Designed to replace a standard tip in a removable tip style nozzle body, the Mini-Shut™ nozzle tip converts your standard open nozzle into an efficient shut off nozzle in seconds. Easy to install and remove and fits in virtually all nozzle bodies. Offered in both 1/2" or 3/4" radius with either 7/8"-14 or M24-1.5 threads.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Radius (inch) | Thread | Orifice (inch or mm) | Overall Length (inch) | Rear Opening (inch or mm) | Hex Size (inch) | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| MS50.50.063 | 1/2" | 7/8"-14 | 1/16 | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.50.094 | 1/2" | 7/8"-14 | 3/32 | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.50.125 | 1/2" | 7/8"-14 | 1/8 | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.50.156 | 1/2" | 7/8"-14 | 5/32 | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.50.188 | 1/2" | 7/8"-14 | 3/16 | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.50.219 | 1/2" | 7/8"-14 | 7/32 | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.50.250 | 1/2" | 7/8"-14 | 1/4 | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.50.281 | 1/2" | 7/8"-14 | 9/32 | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.50.2mm | 1/2" | 7/8"-14 | 2mm | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.50.313 | 1/2" | 7/8"-14 | 5/16 | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.50.375 | 1/2" | 7/8"-14 | 3/8 | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.50.3mm | 1/2" | 7/8"-14 | 3mm | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.50.4mm | 1/2" | 7/8"-14 | 4mm | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.50.5mm | 1/2" | 7/8"-14 | 5mm | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.50.6mm | 1/2" | 7/8"-14 | 6mm | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.50.7mm | 1/2" | 7/8"-14 | 7mm | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.50.8mm | 1/2" | 7/8"-14 | 8mm | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.50.9mm | 1/2" | 7/8"-14 | 9mm | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.75.063 | 3/4" | 7/8"-14 | 1/16 | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.75.094 | 3/4" | 7/8"-14 | 3/32 | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.75.125 | 3/4" | 7/8"-14 | 1/8 | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.75.156 | 3/4" | 7/8"-14 | 5/32 | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.75.188 | 3/4" | 7/8"-14 | 3/16 | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.75.219 | 3/4" | 7/8"-14 | 7/32 | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.75.250 | 3/4" | 7/8"-14 | 1/4 | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.75.281 | 3/4" | 7/8"-14 | 9/32 | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.75.2mm | 3/4" | 7/8"-14 | 2mm | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.75.313 | 3/4" | 7/8"-14 | 5/16 | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.75.375 | 3/4" | 7/8"-14 | 3/8 | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.75.3mm | 3/4" | 7/8"-14 | 3mm | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.75.4mm | 3/4" | 7/8"-14 | 4mm | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.75.5mm | 3/4" | 7/8"-14 | 5mm | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.75.6mm | 3/4" | 7/8"-14 | 6mm | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.75.7mm | 3/4" | 7/8"-14 | 7mm | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.75.8mm | 3/4" | 7/8"-14 | 8mm | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MS50.75.9mm | 3/4" | 7/8"-14 | 9mm | 1.77" (45mm) | .500" | .866" | $320.57 | ||
| MSEU.50.063 | 1/2" | M24 x 1.5 | 1/16 | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.50.094 | 1/2" | M24 x 1.5 | 3/32 | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.50.125 | 1/2" | M24 x 1.5 | 1/8 | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.50.156 | 1/2" | M24 x 1.5 | 5/32 | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.50.188 | 1/2" | M24 x 1.5 | 3/16 | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.50.219 | 1/2" | M24 x 1.5 | 7/32 | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.50.250 | 1/2" | M24 x 1.5 | 1/4 | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.50.281 | 1/2" | M24 x 1.5 | 9/32 | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.50.2mm | 1/2" | M24 x 1.5 | 2mm | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.50.313 | 1/2" | M24 x 1.5 | 5/16 | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.50.375 | 1/2" | M24 x 1.5 | 3/8 | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.50.3mm | 1/2" | M24 x 1.5 | 3mm | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.50.4mm | 1/2" | M24 x 1.5 | 4mm | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.50.5mm | 1/2" | M24 x 1.5 | 5mm | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.50.6mm | 1/2" | M24 x 1.5 | 6mm | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.50.7mm | 1/2" | M24 x 1.5 | 7mm | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.50.8mm | 1/2" | M24 x 1.5 | 8mm | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.50.9mm | 1/2" | M24 x 1.5 | 9mm | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.75.063 | 3/4" | M24 x 1.5 | 1/16 | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.75.094 | 3/4" | M24 x 1.5 | 3/32 | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.75.125 | 3/4" | M24 x 1.5 | 1/8 | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.75.156 | 3/4" | M24 x 1.5 | 5/32 | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.75.188 | 3/4" | M24 x 1.5 | 3/16 | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.75.219 | 3/4" | M24 x 1.5 | 7/32 | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.75.250 | 3/4" | M24 x 1.5 | 1/4 | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.75.281 | 3/4" | M24 x 1.5 | 9/32 | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.75.2mm | 3/4" | M24 x 1.5 | 2mm | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.75.313 | 3/4" | M24 x 1.5 | 5/16 | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.75.375 | 3/4" | M24 x 1.5 | 3/8 | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.75.3mm | 3/4" | M24 x 1.5 | 3mm | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.75.4mm | 3/4" | M24 x 1.5 | 4mm | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.75.5mm | 3/4" | M24 x 1.5 | 5mm | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.75.6mm | 3/4" | M24 x 1.5 | 6mm | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.75.7mm | 3/4" | M24 x 1.5 | 7mm | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.75.8mm | 3/4" | M24 x 1.5 | 8mm | 2.09" (53mm) | 8mm | 1.064" | $342.28 | ||
| MSEU.75.9mm | 3/4" | M24 x 1.5 | 9mm | 2.09" (53mm) | 8mm | 1.064" | $342.28 |
