- For flat parting surfaces, including vestige with integrated cutting edge
- Ready to use, no adjustments necessary
- Available in hardness 60HRC
- Highly wear resistant hot working steel M2 (1.3343)
- Supplied with vestige
- Unit of Measure - Millimeters

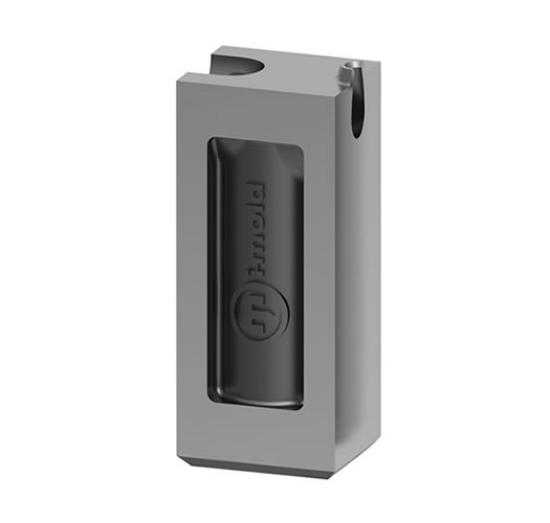

i-mold Standard Version S2 - Square
PCS Company offers i-mold Standard Version 2 - Square tunnel gate inserts. These inserts are ready to use with no adjustments required. The gate point diameter of "Standard" tunnel gate inserts is already completely constructed. Due to the special manufacturing method, all gate point diameters from 0.6 to 2.8 are repeatable from insert to insert. Request technical assistance for your application. Include the 3D data of the part in assembly with core and cavity splits, drawing or image clearly indicating your gate location requirement plus specific resin grade technical datasheet.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | h Height | d1 Gate | d3 Runner | d2 Dimple Dia. | M Thread | Shot Wt.(g) - High flow | Shot Wt.(g) - Med flow | Shot Wt.(g) - Low flow | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TGS10-08-S2-H | 22 | 0.8 | 4 | 2.2 | 5 | 5 | 4 | 3 | $153.27 | ||
| TGS10-12-S2-H | 22 | 1.2 | 4 | 2.6 | 5 | 20 | 12 | 8 | $153.27 | ||
| TGS10-16-S2-H | 22 | 1.6 | 4 | 3 | 5 | 30 | 20 | 12 | $153.27 | ||
| TGS12-12-S2-H | 22 | 1.2 | 5 | 2.6 | 5 | 20 | 12 | 8 | $167.22 | ||
| TGS12-16-S2-H | 22 | 1.6 | 5 | 3 | 5 | 30 | 20 | 12 | $167.22 | ||
| TGS12-20-S2-H | 22 | 2 | 5 | 3.4 | 5 | 50 | 35 | 25 | $167.22 | ||
| TGS14-16-S2-H | 22 | 1.6 | 6 | 3 | 6 | 30 | 20 | 10 | $179.97 | ||
| TGS14-20-S2-H | 22 | 2 | 6 | 3.4 | 6 | 50 | 35 | 25 | $179.97 | ||
| TGS14-24-S2-H | 22 | 2.4 | 6 | 3.8 | 6 | 100 | 70 | 45 | $179.97 | ||
| TGS14-28-S2-H | 22 | 2.8 | 6 | 4.2 | 6 | 200 | 120 | 75 | $179.97 | ||
| TGS8-06-S2-H | 22 | 0.6 | 3 | 1.9 | 4 | 3 | 2 | 1 | $148.62 | ||
| TGS8-08-S2-H | 22 | 0.8 | 3 | 2.1 | 4 | 5 | 4 | 3 | $148.62 |
