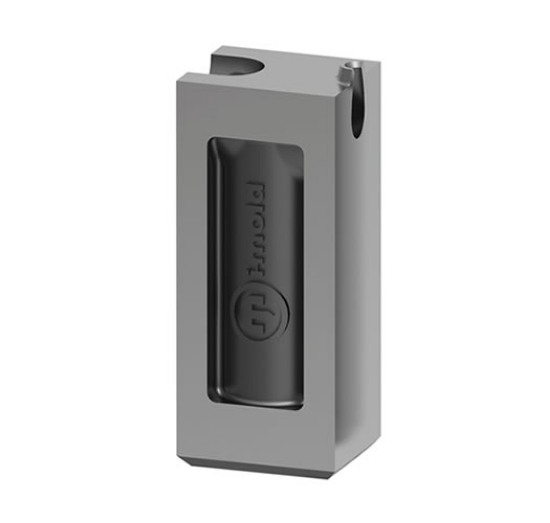

Picture of TGS14-20-S2-H Picture of TGS14-20-S2-H Picture of TGS14-20-S2-H Picture of TGS14-20-S2-H Picture of TGS14-20-S2-H

TGS14-20-S2-H

$179.97
PCS Company offers i-mold TGS Sub-Gate Tunnel Inserts, Square, Version S2, 60 HRC, Gate point 2.0mm
The actual product may differ slightly from the image displayed on the website.
14x12x22+0.8, GTE14-20, E1685/14/2.0
Product specifications
h Height 22
d1 Gate 2
d3 Runner 6
d2 Dimple Dia. 3.4
M Thread 6
Shot Wt.(g) - High flow 50
Shot Wt.(g) - Med flow 35
Shot Wt.(g) - Low flow 25
