- For contouring up to 10mm
- Individually adjustable
- Available in 2 degrees of hardness (60 HRC / 40 HRC)
- Unit of Measure - Millimeters

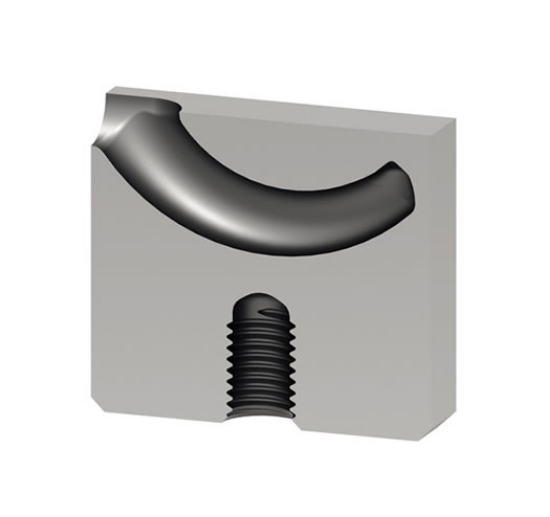

i-mold Contourable TGC
PCS Company offers i-mold Contourable TGC tunnel gate inserts. The TGC tunnel gate inserts are individually adjustable, allowing contouring up to 10mm. Highly suitable for rigid and filled resins. The TGC inserts are offered in either 40HRC or 60HRC. Request technical assistance for your application. Include the 3D data of the part in assembly with core and cavity splits, drawing or image clearly indicating your gate location requirement plus specific resin grade technical datasheet.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | H Height | b Length | b1 Width | M Thread | Hardness | d1 Gate | d3 Runner | Shot Wt.(g) - High flow | Shot Wt.(g) - Med flow | Shot Wt.(g) - Low flow | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TGC-1-H | 22 | 18 | 8 | 5 | 60 HRC | 0.6-1.6 | 4 | 35 | 25 | 15 | $164.91 | ||
| TGC-1-U | 22 | 18 | 8 | 5 | 40 HRC | 0.6-1.6 | 4 | 35 | 25 | 15 | $145.89 | ||
| TGC-2-H | 22 | 25 | 10 | 5 | 60 HRC | 0.8-1.8 | 6 | 120 | 75 | 50 | $183.94 | ||
| TGC-2-U | 22 | 25 | 10 | 5 | 40 HRC | 0.8-1.8 | 6 | 120 | 75 | 50 | $164.91 | ||
| TGC-3-H | 27 | 30 | 12 | 6 | 60 HRC | 0.5x4.5-1.5x5.5 | 8 | 1000 | 500 | 300 | $218.20 | ||
| TGC-3-U | 27 | 30 | 12 | 6 | 40 HRC | 0.5x4.5-1.5x5.5 | 8 | 1000 | 500 | 300 | $199.16 | ||
| TGC-4-H | 36 | 45 | 12 | 6 | 60 HRC | 0.5x4.5-1.5x5.5 | 8 | 1000 | 500 | 300 | $268.94 | ||
| TGC-4-U | 36 | 45 | 12 | 6 | 40 HRC | 0.5x4.5-1.5x5.5 | 8 | 1000 | 500 | 300 | $249.91 | ||
| TGC-S-H | 18 | 15 | 6 | 4 | 60 HRC | 0.4-0.8 | 2.5 (max.3.5) | 12 | 7 | 5 | $152.22 | ||
| TGC-S-U | 18 | 15 | 6 | 4 | 40 HRC | 0.4-0.8 | 2.5 (max.3.5) | 12 | 7 | 5 | $133.21 | ||
| TGC-XS-H | 12 | 10 | 5 | 4 | 60 HRC | 0.4-0.6 | 2.5 (max.3.5) | 5 | 4 | 3 | $150.55 | ||
| TGC-XS-U | 12 | 10 | 5 | 4 | 40 HRC | 0.4-0.6 | 2.5 (max.3.5) | 5 | 4 | 3 | $131.16 |
