- Unit of Measure - Inch
- For longer reach applications or where a steel pipe nipple assembly is required
- Exclusive angular connecting hole allows pipes to be torqued tight without choking off flow
- Easy socket wrench installation requires minimum turning clearance
- Zinc plated to resist rust and corrosion
- One piece construction insures complete removal
- Made in the U.S.A.

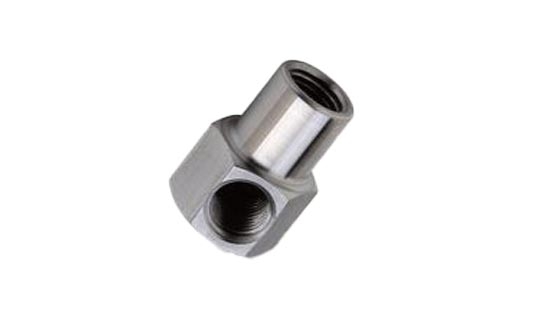

Zinc Plated Hex Elbows
Zinc Elbows require minimal clearance for installation and removal. Full flow path allows connecting fittings to be torqued tight without restricting flow.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | A Input Pipe Size | B Output Pipe Size | D Wrench Clearance | E Input Pipe Location | Hex Size | L Overall Length | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| HS-0 | 1/16 | 1/16 | 1 | 7/32 | 9/16 | 13/16 | $4.68 | ||
| HS-1 | 1/8 | 1/8 | 1-1/4 | 9/32 | 3/4 | 1 | $3.72 | ||
| HS-2 | 1/8 | 1/4 | 1-1/4 | 9/32 | 3/4 | 1-1/4 | $4.23 | ||
| HS-3 | 1/4 | 1/4 | 1-3/8 | 11/32 | 7/8 | 1-3/8 | $4.34 | ||
| HS-4 | 1/4 | 3/8 | 1-3/8 | 11/32 | 7/8 | 1-3/8 | $4.94 | ||
| HS-5 | 3/8 | 3/8 | 1-1/2 | 1/2 | 1 | 1-5/8 | $5.57 | ||
| HS-6 | 1/2 | 1/2 | 1-7/8 | 9/16 | 1-1/4 | 1-7/8 | $8.49 | ||
| HS-7 | 3/4 | 3/4 | 2-1/4 | 5/8 | 1-1/2 | 2-1/4 | $11.70 |
