- Unit of Measure: Inch
- Material: Tool Steel or BeCu
- Tool Steel Hardness: 34-36 HRC
- BeCu Hardness: 12-25 HRC
- Lengths: 1.5" to 8"
- Orifice: 1/16" to 3/8"
- Thread: 7/8"-14
- Rear Opening: 1/2"

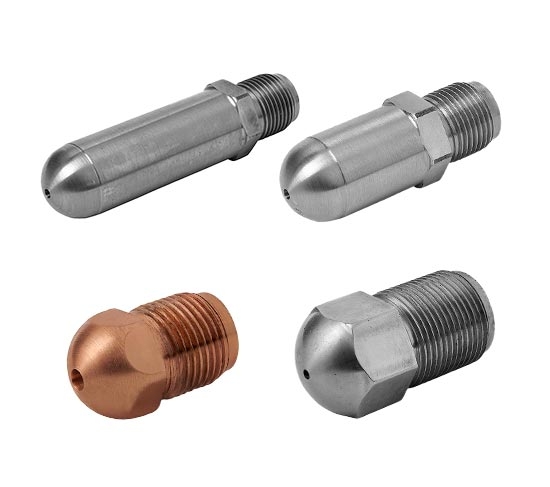

General Purpose Replacement Nozzle Tips
PCS Company's General Purpose Replacement Nozzle Tips are constructed of wear resistant tool steel plus BeCu options for better heat transfer. To be used on general purpose resins such as Polypropylene, Polyethylene, Styrenes, etc. The 7/8"-14 thread and 1/2" rear opening will accommodate the industry standards RT or replacement tip nozzles.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Length (inch) | Radius (inch) | Orifice (inch) | Rear Opening (inch) | Material | Hardness (HRC) | Heater Band Width (inch) | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| RTG121132 | 1 1/2 | 1/2 | 11/32 | 1/2 | Tool Steel | 34-36 | N/A | $20.27 | ||
| RTG12116 | 1 1/2 | 1/2 | 1/16 | 1/2 | Tool Steel | 34-36 | N/A | $20.27 | ||
| RTG1214 | 1 1/2 | 1/2 | 1/4 | 1/2 | Tool Steel | 34-36 | N/A | $20.27 | ||
| RTG1218 | 1 1/2 | 1/2 | 1/8 | 1/2 | Tool Steel | 34-36 | N/A | $20.27 | ||
| RTG12316 | 1 1/2 | 1/2 | 3/16 | 1/2 | Tool Steel | 34-36 | N/A | $20.27 | ||
| RTG12332 | 1 1/2 | 1/2 | 3/32 | 1/2 | Tool Steel | 34-36 | N/A | $20.27 | ||
| RTG1238 | 1 1/2 | 1/2 | 3/8 | 1/2 | Tool Steel | 34-36 | N/A | $20.27 | ||
| RTG12516 | 1 1/2 | 1/2 | 5/16 | 1/2 | Tool Steel | 34-36 | N/A | $20.27 | ||
| RTG12532 | 1 1/2 | 1/2 | 5/32 | 1/2 | Tool Steel | 34-36 | N/A | $20.27 | ||
| RTG12732 | 1 1/2 | 1/2 | 7/32 | 1/2 | Tool Steel | 34-36 | N/A | $20.27 | ||
| RTG12932 | 1 1/2 | 1/2 | 9/32 | 1/2 | Tool Steel | 34-36 | N/A | $20.27 | ||
| RTG341132 | 1 1/2 | 3/4 | 11/32 | 1/2 | Tool Steel | 34-36 | N/A | $20.27 | ||
| RTG34-116 | 1 1/2 | 3/4 | 1/16 | 1/2 | Tool Steel | 34-36 | N/A | $20.27 | ||
| RTG3414 | 1 1/2 | 3/4 | 1/4 | 1/2 | Tool Steel | 34-36 | N/A | $20.27 | ||
| RTG3418 | 1 1/2 | 3/4 | 1/8 | 1/2 | Tool Steel | 34-36 | N/A | $20.27 | ||
| RTG34316 | 1 1/2 | 3/4 | 3/16 | 1/2 | Tool Steel | 34-36 | N/A | $20.27 | ||
| RTG34-332 | 1 1/2 | 3/4 | 3/32 | 1/2 | Tool Steel | 34-36 | N/A | $20.27 | ||
| RTG3438 | 1 1/2 | 3/4 | 3/8 | 1/2 | Tool Steel | 34-36 | N/A | $20.27 | ||
| RTG34516 | 1 1/2 | 3/4 | 5/16 | 1/2 | Tool Steel | 34-36 | N/A | $20.27 | ||
| RTG34532 | 1 1/2 | 3/4 | 5/32 | 1/2 | Tool Steel | 34-36 | N/A | $20.27 | ||
| RTG34732 | 1 1/2 | 3/4 | 7/32 | 1/2 | Tool Steel | 34-36 | N/A | $20.27 | ||
| RTG34932 | 1 1/2 | 3/4 | 9/32 | 1/2 | Tool Steel | 34-36 | N/A | $20.27 | ||
| RTG-B121132 | 1 1/2 | 1/2 | 11/32 | 1/2 | BeCu | 12-25 | N/A | $48.29 | ||
| RTG-B12116 | 1 1/2 | 1/2 | 1/16 | 1/2 | BeCu | 12-25 | N/A | $48.29 | ||
| RTG-B1214 | 1 1/2 | 1/2 | 1/4 | 1/2 | BeCu | 12-25 | N/A | $48.29 | ||
| RTG-B1218 | 1 1/2 | 1/2 | 1/8 | 1/2 | BeCu | 12-25 | N/A | $48.29 | ||
| RTG-B12316 | 1 1/2 | 1/2 | 3/16 | 1/2 | BeCu | 12-25 | N/A | $48.29 | ||
| RTG-B12332 | 1 1/2 | 1/2 | 3/32 | 1/2 | BeCu | 12-25 | N/A | $48.29 | ||
| RTG-B1238 | 1 1/2 | 1/2 | 3/8 | 1/2 | BeCu | 12-25 | N/A | $48.29 | ||
| RTG-B12516 | 1 1/2 | 1/2 | 5/16 | 1/2 | BeCu | 12-25 | N/A | $48.29 | ||
| RTG-B12532 | 1 1/2 | 1/2 | 5/32 | 1/2 | BeCu | 12-25 | N/A | $48.29 | ||
| RTG-B12732 | 1 1/2 | 1/2 | 7/32 | 1/2 | BeCu | 12-25 | N/A | $48.29 | ||
| RTG-B12932 | 1 1/2 | 1/2 | 9/32 | 1/2 | BeCu | 12-25 | N/A | $48.29 | ||
| RTG-B341132 | 1 1/2 | 3/4 | 11/32 | 1/2 | BeCu | 12-25 | N/A | $48.29 | ||
| RTG-B34116 | 1 1/2 | 3/4 | 1/16 | 1/2 | BeCu | 12-25 | N/A | $48.29 | ||
| RTG-B3414 | 1 1/2 | 3/4 | 1/4 | 1/2 | BeCu | 12-25 | N/A | $48.29 | ||
| RTG-B3418 | 1 1/2 | 3/4 | 1/8 | 1/2 | BeCu | 12-25 | N/A | $48.29 | ||
| RTG-B34316 | 1 1/2 | 3/4 | 3/16 | 1/2 | BeCu | 12-25 | N/A | $48.29 | ||
| RTG-B34332 | 1 1/2 | 3/4 | 3/32 | 1/2 | BeCu | 12-25 | N/A | $48.29 | ||
| RTG-B3438 | 1 1/2 | 3/4 | 3/8 | 1/2 | BeCu | 12-25 | N/A | $48.29 | ||
| RTG-B34516 | 1 1/2 | 3/4 | 5/16 | 1/2 | BeCu | 12-25 | N/A | $48.29 | ||
| RTG-B34532 | 1 1/2 | 3/4 | 5/32 | 1/2 | BeCu | 12-25 | N/A | $48.29 | ||
| RTG-B34732 | 1 1/2 | 3/4 | 7/32 | 1/2 | BeCu | 12-25 | N/A | $48.29 | ||
| RTG-B34932 | 1 1/2 | 3/4 | 9/32 | 1/2 | BeCu | 12-25 | N/A | $48.29 | ||
| RTX-GR121132 | 2 3/4 | 1/2 | 11/32 | 1/2 | Tool Steel | 34-36 | 1 | $58.97 | ||
| RTX-GR12116 | 2 3/4 | 1/2 | 1/16 | 1/2 | Tool Steel | 34-36 | 1 | $58.97 | ||
| RTX-GR1214 | 2 3/4 | 1/2 | 1/4 | 1/2 | Tool Steel | 34-36 | 1 | $58.97 | ||
| RTX-GR1218 | 2 3/4 | 1/2 | 1/8 | 1/2 | Tool Steel | 34-36 | 1 | $58.97 | ||
| RTX-GR12316 | 2 3/4 | 1/2 | 3/16 | 1/2 | Tool Steel | 34-36 | 1 | $58.97 | ||
| RTX-GR12332 | 2 3/4 | 1/2 | 3/32 | 1/2 | Tool Steel | 34-36 | 1 | $58.97 | ||
| RTX-GR1238 | 2 3/4 | 1/2 | 3/8 | 1/2 | Tool Steel | 34-36 | 1 | $58.97 | ||
| RTX-GR12516 | 2 3/4 | 1/2 | 5/16 | 1/2 | Tool Steel | 34-36 | 1 | $58.97 | ||
| RTX-GR12532 | 2 3/4 | 1/2 | 5/32 | 1/2 | Tool Steel | 34-36 | 1 | $58.97 | ||
| RTX-GR12732 | 2 3/4 | 1/2 | 7/32 | 1/2 | Tool Steel | 34-36 | 1 | $58.97 | ||
| RTX-GR12932 | 2 3/4 | 1/2 | 9/32 | 1/2 | Tool Steel | 34-36 | 1 | $58.97 | ||
| RTX-GR341132 | 2 3/4 | 3/4 | 11/32 | 1/2 | Tool Steel | 34-36 | 1 | $58.97 | ||
| RTX-GR34116 | 2 3/4 | 3/4 | 1/16 | 1/2 | Tool Steel | 34-36 | 1 | $58.97 | ||
| RTX-GR3414 | 2 3/4 | 3/4 | 1/4 | 1/2 | Tool Steel | 34-36 | 1 | $58.97 | ||
| RTX-GR3418 | 2 3/4 | 3/4 | 1/8 | 1/2 | Tool Steel | 34-36 | 1 | $58.97 | ||
| RTX-GR34316 | 2 3/4 | 3/4 | 3/16 | 1/2 | Tool Steel | 34-36 | 1 | $58.97 | ||
| RTX-GR34332 | 2 3/4 | 3/4 | 3/32 | 1/2 | Tool Steel | 34-36 | 1 | $58.97 | ||
| RTX-GR3438 | 2 3/4 | 3/4 | 3/8 | 1/2 | Tool Steel | 34-36 | 1 | $58.97 | ||
| RTX-GR34516 | 2 3/4 | 3/4 | 5/16 | 1/2 | Tool Steel | 34-36 | 1 | $58.97 | ||
| RTX-GR34532 | 2 3/4 | 3/4 | 5/32 | 1/2 | Tool Steel | 34-36 | 1 | $58.97 | ||
| RTX-GR34732 | 2 3/4 | 3/4 | 7/32 | 1/2 | Tool Steel | 34-36 | 1 | $58.97 | ||
| RTX-GR34932 | 2 3/4 | 3/4 | 9/32 | 1/2 | Tool Steel | 34-36 | 1 | $58.97 | ||
| RTX-GR4121132 | 4 | 1/2 | 11/32 | 1/2 | Tool Steel | 34-36 | 2 | $72.97 | ||
| RTX-GR412116 | 4 | 1/2 | 1/16 | 1/2 | Tool Steel | 34-36 | 2 | $72.97 | ||
| RTX-GR41214 | 4 | 1/2 | 1/4 | 1/2 | Tool Steel | 34-36 | 2 | $72.97 | ||
| RTX-GR41218 | 4 | 1/2 | 1/8 | 1/2 | Tool Steel | 34-36 | 2 | $72.97 | ||
| RTX-GR412316 | 4 | 1/2 | 3/16 | 1/2 | Tool Steel | 34-36 | 2 | $72.97 | ||
| RTX-GR412332 | 4 | 1/2 | 3/32 | 1/2 | Tool Steel | 34-36 | 2 | $72.97 | ||
| RTX-GR41238 | 4 | 1/2 | 3/8 | 1/2 | Tool Steel | 34-36 | 2 | $72.97 | ||
| RTX-GR412516 | 4 | 1/2 | 5/16 | 1/2 | Tool Steel | 34-36 | 2 | $72.97 | ||
| RTX-GR412532 | 4 | 1/2 | 5/32 | 1/2 | Tool Steel | 34-36 | 2 | $72.97 | ||
| RTX-GR412732 | 4 | 1/2 | 7/32 | 1/2 | Tool Steel | 34-36 | 2 | $72.97 | ||
| RTX-GR412932 | 4 | 1/2 | 9/32 | 1/2 | Tool Steel | 34-36 | 2 | $72.97 | ||
| RTX-GR4341132 | 4 | 3/4 | 11/32 | 1/2 | Tool Steel | 34-36 | 2 | $72.97 | ||
| RTX-GR434116 | 4 | 3/4 | 1/16 | 1/2 | Tool Steel | 34-36 | 2 | $72.97 | ||
| RTX-GR43414 | 4 | 3/4 | 1/4 | 1/2 | Tool Steel | 34-36 | 2 | $72.97 | ||
| RTX-GR43418 | 4 | 3/4 | 1/8 | 1/2 | Tool Steel | 34-36 | 2 | $72.97 | ||
| RTX-GR434316 | 4 | 3/4 | 3/16 | 1/2 | Tool Steel | 34-36 | 2 | $72.97 | ||
| RTX-GR434332 | 4 | 3/4 | 3/32 | 1/2 | Tool Steel | 34-36 | 2 | $72.97 | ||
| RTX-GR43438 | 4 | 3/4 | 3/8 | 1/2 | Tool Steel | 34-36 | 2 | $72.97 | ||
| RTX-GR434516 | 4 | 3/4 | 5/16 | 1/2 | Tool Steel | 34-36 | 2 | $72.97 | ||
| RTX-GR434532 | 4 | 3/4 | 5/32 | 1/2 | Tool Steel | 34-36 | 2 | $72.97 | ||
| RTX-GR434732 | 4 | 3/4 | 7/32 | 1/2 | Tool Steel | 34-36 | 2 | $72.97 | ||
| RTX-GR434932 | 4 | 3/4 | 9/32 | 1/2 | Tool Steel | 34-36 | 2 | $72.97 | ||
| RTX-GR5121132 | 5 | 1/2 | 11/32 | 1/2 | Tool Steel | 34-36 | 3 | $92.79 | ||
| RTX-GR512116 | 5 | 1/2 | 1/16 | 1/2 | Tool Steel | 34-36 | 3 | $92.79 | ||
| RTX-GR51214 | 5 | 1/2 | 1/4 | 1/2 | Tool Steel | 34-36 | 3 | $92.79 | ||
| RTX-GR51218 | 5 | 1/2 | 1/8 | 1/2 | Tool Steel | 34-36 | 3 | $92.79 | ||
| RTX-GR512316 | 5 | 1/2 | 3/16 | 1/2 | Tool Steel | 34-36 | 3 | $92.79 | ||
| RTX-GR512332 | 5 | 1/2 | 3/32 | 1/2 | Tool Steel | 34-36 | 3 | $92.79 | ||
| RTX-GR51238 | 5 | 1/2 | 3/8 | 1/2 | Tool Steel | 34-36 | 3 | $92.79 | ||
| RTX-GR512516 | 5 | 1/2 | 5/16 | 1/2 | Tool Steel | 34-36 | 3 | $92.79 | ||
| RTX-GR512532 | 5 | 1/2 | 5/32 | 1/2 | Tool Steel | 34-36 | 3 | $92.79 | ||
| RTX-GR512732 | 5 | 1/2 | 7/32 | 1/2 | Tool Steel | 34-36 | 3 | $92.79 | ||
| RTX-GR512932 | 5 | 1/2 | 9/32 | 1/2 | Tool Steel | 34-36 | 3 | $92.79 | ||
| RTX-GR5341132 | 5 | 3/4 | 11/32 | 1/2 | Tool Steel | 34-36 | 3 | $92.79 | ||
| RTX-GR534116 | 5 | 3/4 | 1/16 | 1/2 | Tool Steel | 34-36 | 3 | $92.79 | ||
| RTX-GR53414 | 5 | 3/4 | 1/4 | 1/2 | Tool Steel | 34-36 | 3 | $92.79 | ||
| RTX-GR53418 | 5 | 3/4 | 1/8 | 1/2 | Tool Steel | 34-36 | 3 | $92.79 | ||
| RTX-GR534316 | 5 | 3/4 | 3/16 | 1/2 | Tool Steel | 34-36 | 3 | $92.79 | ||
| RTX-GR534332 | 5 | 3/4 | 3/32 | 1/2 | Tool Steel | 34-36 | 3 | $92.79 | ||
| RTX-GR53438 | 5 | 3/4 | 3/8 | 1/2 | Tool Steel | 34-36 | 3 | $92.79 | ||
| RTX-GR534516 | 5 | 3/4 | 5/16 | 1/2 | Tool Steel | 34-36 | 3 | $92.79 | ||
| RTX-GR534532 | 5 | 3/4 | 5/32 | 1/2 | Tool Steel | 34-36 | 3 | $92.79 | ||
| RTX-GR534732 | 5 | 3/4 | 7/32 | 1/2 | Tool Steel | 34-36 | 3 | $92.79 | ||
| RTX-GR534932 | 5 | 3/4 | 9/32 | 1/2 | Tool Steel | 34-36 | 3 | $92.79 | ||
| RTX-GR612-1132 | 6 | 1/2 | 11/32 | 1/2 | Tool Steel | 34-36 | 4 | $118.82 | ||
| RTX-GR612-116 | 6 | 1/2 | 1/16 | 1/2 | Tool Steel | 34-36 | 4 | $118.82 | ||
| RTX-GR612-14 | 6 | 1/2 | 1/4 | 1/2 | Tool Steel | 34-36 | 4 | $118.82 | ||
| RTX-GR612-18 | 6 | 1/2 | 1/8 | 1/2 | Tool Steel | 34-36 | 4 | $118.82 | ||
| RTX-GR612-316 | 6 | 1/2 | 3/16 | 1/2 | Tool Steel | 34-36 | 4 | $118.82 | ||
| RTX-GR612-332 | 6 | 1/2 | 3/32 | 1/2 | Tool Steel | 34-36 | 4 | $118.82 | ||
| RTX-GR612-38 | 6 | 1/2 | 3/8 | 1/2 | Tool Steel | 34-36 | 4 | $118.82 | ||
| RTX-GR612-516 | 6 | 1/2 | 5/16 | 1/2 | Tool Steel | 34-36 | 4 | $118.82 | ||
| RTX-GR612-532 | 6 | 1/2 | 5/32 | 1/2 | Tool Steel | 34-36 | 4 | $118.82 | ||
| RTX-GR612-732 | 6 | 1/2 | 7/32 | 1/2 | Tool Steel | 34-36 | 4 | $118.82 | ||
| RTX-GR612-932 | 6 | 1/2 | 9/32 | 1/2 | Tool Steel | 34-36 | 4 | $118.82 | ||
| RTX-GR634-1132 | 6 | 3/4 | 11/32 | 1/2 | Tool Steel | 34-36 | 4 | $118.82 | ||
| RTX-GR634-116 | 6 | 3/4 | 1/16 | 1/2 | Tool Steel | 34-36 | 4 | $118.82 | ||
| RTX-GR634-14 | 6 | 3/4 | 1/4 | 1/2 | Tool Steel | 34-36 | 4 | $118.82 | ||
| RTX-GR634-18 | 6 | 3/4 | 1/8 | 1/2 | Tool Steel | 34-36 | 4 | $118.82 | ||
| RTX-GR634-316 | 6 | 3/4 | 3/16 | 1/2 | Tool Steel | 34-36 | 4 | $118.82 | ||
| RTX-GR634-332 | 6 | 3/4 | 3/32 | 1/2 | Tool Steel | 34-36 | 4 | $118.82 | ||
| RTX-GR634-38 | 6 | 3/4 | 3/8 | 1/2 | Tool Steel | 34-36 | 4 | $118.82 | ||
| RTX-GR634-516 | 6 | 3/4 | 5/16 | 1/2 | Tool Steel | 34-36 | 4 | $118.82 | ||
| RTX-GR634-532 | 6 | 3/4 | 5/32 | 1/2 | Tool Steel | 34-36 | 4 | $118.82 | ||
| RTX-GR634-732 | 6 | 3/4 | 7/32 | 1/2 | Tool Steel | 34-36 | 4 | $118.82 | ||
| RTX-GR634-932 | 6 | 3/4 | 9/32 | 1/2 | Tool Steel | 34-36 | 4 | $118.82 | ||
| RTX-GR8121132 | 8 | 1/2 | 11/32 | 1/2 | Tool Steel | 34-36 | 2ea x 3 | $165.77 | ||
| RTX-GR812116 | 8 | 1/2 | 1/16 | 1/2 | Tool Steel | 34-36 | 2ea x 3 | $165.77 | ||
| RTX-GR81214 | 8 | 1/2 | 1/4 | 1/2 | Tool Steel | 34-36 | 2ea x 3 | $165.77 | ||
| RTX-GR81218 | 8 | 1/2 | 1/8 | 1/2 | Tool Steel | 34-36 | 2ea x 3 | $165.77 | ||
| RTX-GR812316 | 8 | 1/2 | 3/16 | 1/2 | Tool Steel | 34-36 | 2ea x 3 | $165.77 | ||
| RTX-GR812332 | 8 | 1/2 | 3/32 | 1/2 | Tool Steel | 34-36 | 2ea x 3 | $165.77 | ||
| RTX-GR81238 | 8 | 1/2 | 3/8 | 1/2 | Tool Steel | 34-36 | 2ea x 3 | $165.77 | ||
| RTX-GR812516 | 8 | 1/2 | 5/16 | 1/2 | Tool Steel | 34-36 | 2ea x 3 | $165.77 | ||
| RTX-GR812532 | 8 | 1/2 | 5/32 | 1/2 | Tool Steel | 34-36 | 2ea x 3 | $165.77 | ||
| RTX-GR812732 | 8 | 1/2 | 7/32 | 1/2 | Tool Steel | 34-36 | 2ea x 3 | $165.77 | ||
| RTX-GR812932 | 8 | 1/2 | 9/32 | 1/2 | Tool Steel | 34-36 | 2ea x 3 | $165.77 | ||
| RTX-GR8341132 | 8 | 3/4 | 11/32 | 1/2 | Tool Steel | 34-36 | 2ea x 3 | $165.77 | ||
| RTX-GR834116 | 8 | 3/4 | 1/16 | 1/2 | Tool Steel | 34-36 | 2ea x 3 | $165.77 | ||
| RTX-GR83414 | 8 | 3/4 | 1/4 | 1/2 | Tool Steel | 34-36 | 2ea x 3 | $165.77 | ||
| RTX-GR83418 | 8 | 3/4 | 1/8 | 1/2 | Tool Steel | 34-36 | 2ea x 3 | $165.77 | ||
| RTX-GR834316 | 8 | 3/4 | 3/16 | 1/2 | Tool Steel | 34-36 | 2ea x 3 | $165.77 | ||
| RTX-GR834332 | 8 | 3/4 | 3/32 | 1/2 | Tool Steel | 34-36 | 2ea x 3 | $165.77 | ||
| RTX-GR83438 | 8 | 3/4 | 3/8 | 1/2 | Tool Steel | 34-36 | 2ea x 3 | $165.77 | ||
| RTX-GR834516 | 8 | 3/4 | 5/16 | 1/2 | Tool Steel | 34-36 | 2ea x 3 | $165.77 | ||
| RTX-GR834532 | 8 | 3/4 | 5/32 | 1/2 | Tool Steel | 34-36 | 2ea x 3 | $165.77 | ||
| RTX-GR834732 | 8 | 3/4 | 7/32 | 1/2 | Tool Steel | 34-36 | 2ea x 3 | $165.77 | ||
| RTX-GR834932 | 8 | 3/4 | 9/32 | 1/2 | Tool Steel | 34-36 | 2ea x 3 | $165.77 | ||
| RTX-GRB121132 | 2 3/4 | 1/2 | 11/32 | 1/2 | BeCu | 12-25 | 1 | $112.18 | ||
| RTX-GRB12116 | 2 3/4 | 1/2 | 1/16 | 1/2 | BeCu | 12-25 | 1 | $112.18 | ||
| RTX-GRB1214 | 2 3/4 | 1/2 | 1/4 | 1/2 | BeCu | 12-25 | 1 | $112.18 | ||
| RTX-GRB1218 | 2 3/4 | 1/2 | 1/8 | 1/2 | BeCu | 12-25 | 1 | $112.18 | ||
| RTX-GRB12316 | 2 3/4 | 1/2 | 3/16 | 1/2 | BeCu | 12-25 | 1 | $112.18 | ||
| RTX-GRB12332 | 2 3/4 | 1/2 | 3/32 | 1/2 | BeCu | 12-25 | 1 | $112.18 | ||
| RTX-GRB1238 | 2 3/4 | 1/2 | 3/8 | 1/2 | BeCu | 12-25 | 1 | $112.18 | ||
| RTX-GRB12516 | 2 3/4 | 1/2 | 5/16 | 1/2 | BeCu | 12-25 | 1 | $112.18 | ||
| RTX-GRB12532 | 2 3/4 | 1/2 | 5/32 | 1/2 | BeCu | 12-25 | 1 | $112.18 | ||
| RTX-GRB12732 | 2 3/4 | 1/2 | 7/32 | 1/2 | BeCu | 12-25 | 1 | $112.18 | ||
| RTX-GRB12932 | 2 3/4 | 1/2 | 9/32 | 1/2 | BeCu | 12-25 | 1 | $112.18 | ||
| RTX-GRB341132 | 2 3/4 | 3/4 | 11/32 | 1/2 | BeCu | 12-25 | 1 | $112.18 | ||
| RTX-GRB34116 | 2 3/4 | 3/4 | 1/16 | 1/2 | BeCu | 12-25 | 1 | $112.18 | ||
| RTX-GRB3414 | 2 3/4 | 3/4 | 1/4 | 1/2 | BeCu | 12-25 | 1 | $112.18 | ||
| RTX-GRB3418 | 2 3/4 | 3/4 | 1/8 | 1/2 | BeCu | 12-25 | 1 | $112.18 | ||
| RTX-GRB34316 | 2 3/4 | 3/4 | 3/16 | 1/2 | BeCu | 12-25 | 1 | $112.18 | ||
| RTX-GRB34332 | 2 3/4 | 3/4 | 3/32 | 1/2 | BeCu | 12-25 | 1 | $112.18 | ||
| RTX-GRB3438 | 2 3/4 | 3/4 | 3/8 | 1/2 | BeCu | 12-25 | 1 | $112.18 | ||
| RTX-GRB34516 | 2 3/4 | 3/4 | 5/16 | 1/2 | BeCu | 12-25 | 1 | $112.18 | ||
| RTX-GRB34532 | 2 3/4 | 3/4 | 5/32 | 1/2 | BeCu | 12-25 | 1 | $112.18 | ||
| RTX-GRB34732 | 2 3/4 | 3/4 | 7/32 | 1/2 | BeCu | 12-25 | 1 | $112.18 | ||
| RTX-GRB34932 | 2 3/4 | 3/4 | 9/32 | 1/2 | BeCu | 12-25 | 1 | $112.18 |
