- Unit of Measure - Inch
- Dimensionally checked and packaged as a precision matched set
- Thickness is relieved on male insert past the parting line
- Armor Coating provides increased lubricity
- Female inserts are notched for easy removal
- Exposed edges chamfered
- Grease grooves present on male insert
Shuttle Mold Side Locks

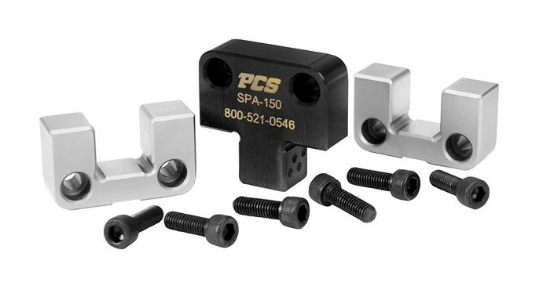

PCS Shuttle Mold Side Locks come standard with two female halves and one male half. These locks provide positive alignment between mold halves. These locks are hardened and precision ground to assure complete interchangeability. The lubricious properties of Armorclad treatment combined with the qualities of graphitic tool steel provide a dependable, smooth acting, long lasting locking system.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Width | E Base Height of Male Insert | B1 Mounting Hole Location | B2 Mounting Hole Spread | C Locking Feature Width | Overall Height Of Female Insert | F Male Alignment Feature Length | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| SPA-100 | 1 | 0.875 | 0.25 | 0.5 | 0.5 | 1.125 | 0.53 | $302.92 | ||
| SPA-125 | 1.25 | 0.875 | 0.25 | 0.75 | 0.5 | 1.125 | 0.66 | $331.49 | ||
| SPA-150 | 1.5 | 0.875 | 0.25 | 1 | 0.563 | 0.875 | 0.56 | $335.47 | ||
| SPA-200 | 2 | 0.875 | 0.312 | 1.375 | 0.75 | 1.375 | 0.66 | $359.47 | ||
| SPA-300 | 3 | 0.875 | 0.375 | 2.25 | 1.25 | 1.875 | 1.13 | $469.75 |
