- Male X Female
- Pressure rated at 600 psi (42 bars) WOG
- Fast 1/4 turn open or close operation
- Low operating torque
- Operating Temperature -22° F to 302°F
- Self-cleaning, chromium-plated solid brass ball for maximum durability
- Bottom entry, blow-out proof stem
- Deeper threads - for better connections
- Thread ends to ANSI B1.20.1
- Not Lead Free

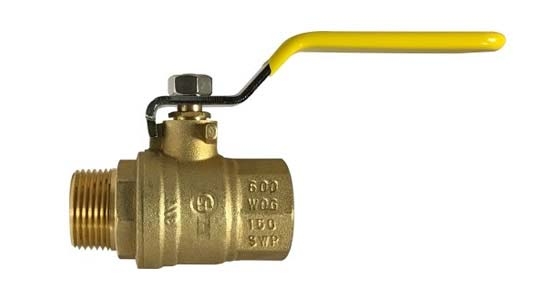

Full Port Ball Valves - Male X Female
PCS Company offers Full Port Ball Valves - Forged Brass, Male X Female which are suitable for a full range of liquids and gases. PCS Company's ball valves offer minimal pressure drop due to large full-size ports, and a bottom-loaded, pressure-retaining stem. Available in thread sizes 1/4" to 2".
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Weight(lbs.) | Size | NPT | A (OAL) | B | C (Radius of Handle) | D | E | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MFBV100 | 1.11 | 1" | 1 | 3 | 2.579 | 4.528 | 0.945 | 0.63 | $27.81 | ||
| MFBV12 | 0.47 | 1/2" | 1/2 - 14 | 2.343 | 2.05 | 3.543 | 0.583 | 0.52 | $11.51 | ||
| MFBV125 | 1.7 | 1-1/4" | 1-1/4 - 11.5 | 3.563 | 2.953 | 4.528 | 1.26 | 0.709 | $41.69 | ||
| MFBV14 | 0.29 | 1/4" | 1/4 - 18 | 2.016 | 1.689 | 2.756 | 0.315 | 0.457 | $7.47 | ||
| MFBV150 | 2.5 | 1-1/2" | 1-1/2 - 11.5 | 3.965 | 3.346 | 5.512 | 1.575 | 0.717 | $61.03 | ||
| MFBV200 | 3.57 | 2" | 2 | 4.496 | 3.681 | 5.512 | 1.969 | 0.748 | $98.52 | ||
| MFBV34 | 0.68 | 3/4" | 3/4 -14 | 2.618 | 2.2 | 3.78 | 0.748 | 0.563 | $17.74 | ||
| MFBV38 | 0.33 | 3/8" | 3/8 -18 | 2.094 | 1.89 | 3.543 | 0.394 | 0.457 | $8.89 |
