- Unit of Measure - Inch
- A & B Plates #3 Steel / All others #2 Steel
- Guided Ejection included at no extra charge
- Item Number ending with "G" - No Guided Ejection
- Clamp Slots used in solid units for greater clamping stability and larger cavities and cores
- Compatible with M.U.D.® style units
- Pry slots added to parting line
- Compatible with U Frames
- Compatible with F.I.T.S.® and MUD® U-Frames

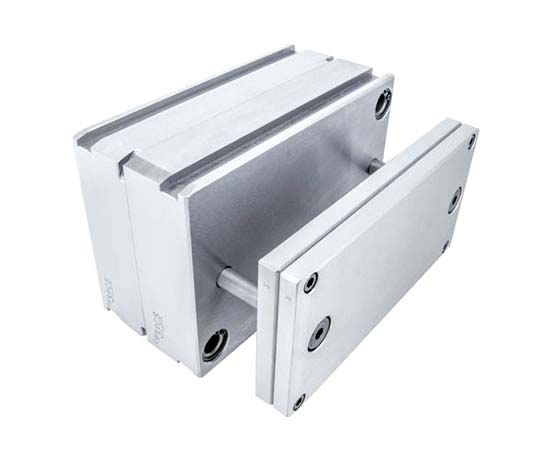

Solid F.I.T.S.® Insert - Steel
Solid inserts are the most economical and the most recommended style. These inserts are called "Solid" because the "A" and "B" plates are individually one piece of solid steel. The SOLID inserts allow room for thicker pocket walls and can be ordered with (standard) or without guided ejection. A & B Plates are made with P-20 #3 Steel, all other plates are #2 Steel.
CAD Files for F.I.T.S. inserts can be found through our CAD Library.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | A Plate Thickness | B Plate Thickness | Guided Ejection | Series | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| FTS-0809-221 | 1.376 | 1.376 | Yes | 08/09 | $618.35 | ||
| FTS-0809-221G | 1.376 | 1.376 | No | 08/09 | $618.35 | ||
| FTS-0809-222 | 1.376 | 1.876 | Yes | 08/09 | $656.25 | ||
| FTS-0809-222G | 1.376 | 1.876 | No | 08/09 | $656.26 | ||
| FTS-0809-223 | 1.876 | 1.376 | Yes | 08/09 | $652.79 | ||
| FTS-0809-223G | 1.876 | 1.376 | No | 08/09 | $652.80 | ||
| FTS-0809-224 | 1.876 | 1.876 | Yes | 08/09 | $690.69 | ||
| FTS-0809-224G | 1.876 | 1.876 | No | 08/09 | $690.70 | ||
| FTS-0809-225 | 1.876 | 2.376 | Yes | 08/09 | $728.60 | ||
| FTS-0809-225G | 1.876 | 2.376 | No | 08/09 | $728.60 | ||
| FTS-0809-226 | 2.376 | 1.876 | Yes | 08/09 | $725.16 | ||
| FTS-0809-226G | 2.376 | 1.876 | No | 08/09 | $725.17 | ||
| FTS-0809-227 | 2.376 | 2.376 | Yes | 08/09 | $763.07 | ||
| FTS-0809-227G | 2.376 | 2.376 | No | 08/09 | $763.07 | ||
| FTS-0809-228 | 2.376 | 2.876 | Yes | 08/09 | $779.09 | ||
| FTS-0809-228G | 2.376 | 2.876 | No | 08/09 | $779.10 | ||
| FTS-0809-229 | 2.876 | 2.376 | Yes | 08/09 | $783.46 | ||
| FTS-0809-229G | 2.876 | 2.376 | No | 08/09 | $783.47 | ||
| FTS-0809-230 | 2.876 | 2.876 | Yes | 08/09 | $799.49 | ||
| FTS-0809-230G | 2.876 | 2.876 | No | 08/09 | $799.49 | ||
| FTS-0810-221 | 1.376 | 1.376 | Yes | 08/10 | $785.15 | ||
| FTS-0810-221G | 1.376 | 1.376 | No | 08/10 | $785.16 | ||
| FTS-0810-222 | 1.376 | 1.876 | Yes | 08/10 | $828.57 | ||
| FTS-0810-222G | 1.376 | 1.876 | No | 08/10 | $828.58 | ||
| FTS-0810-223 | 1.876 | 1.376 | Yes | 08/10 | $829.95 | ||
| FTS-0810-223G | 1.876 | 1.376 | No | 08/10 | $829.95 | ||
| FTS-0810-224 | 1.876 | 1.876 | Yes | 08/10 | $873.37 | ||
| FTS-0810-224G | 1.876 | 1.876 | No | 08/10 | $873.37 | ||
| FTS-0810-225 | 1.876 | 2.376 | Yes | 08/10 | $921.60 | ||
| FTS-0810-225G | 1.876 | 2.376 | No | 08/10 | $921.60 | ||
| FTS-0810-226 | 2.376 | 1.876 | Yes | 08/10 | $923.73 | ||
| FTS-0810-226G | 2.376 | 1.876 | No | 08/10 | $923.74 | ||
| FTS-0810-227 | 2.376 | 2.376 | Yes | 08/10 | $971.96 | ||
| FTS-0810-227G | 2.376 | 2.376 | No | 08/10 | $971.97 | ||
| FTS-1012-224 | 1.876 | 1.876 | Yes | 10/12 | $1,339.61 | ||
| FTS-1012-224G | 1.876 | 1.876 | No | 10/12 | $1,339.62 | ||
| FTS-1012-225 | 1.876 | 2.376 | Yes | 10/12 | $1,415.42 | ||
| FTS-1012-225G | 1.876 | 2.376 | No | 10/12 | $1,415.42 | ||
| FTS-1012-226 | 2.376 | 1.876 | Yes | 10/12 | $1,408.53 | ||
| FTS-1012-226G | 2.376 | 1.876 | No | 10/12 | $1,408.53 | ||
| FTS-1012-227 | 2.376 | 2.376 | Yes | 10/12 | $1,484.33 | ||
| FTS-1012-227G | 2.376 | 2.376 | No | 10/12 | $1,484.34 | ||
| FTS-1012-228 | 2.376 | 2.876 | Yes | 10/12 | $1,494.04 | ||
| FTS-1012-228G | 2.376 | 2.876 | No | 10/12 | $1,494.04 | ||
| FTS-1012-229 | 2.876 | 2.376 | Yes | 10/12 | $1,521.35 | ||
| FTS-1012-229G | 2.876 | 2.376 | No | 10/12 | $1,521.36 | ||
| FTS-1012-230 | 2.876 | 2.876 | Yes | 10/12 | $1,531.05 | ||
| FTS-1012-230G | 2.876 | 2.876 | No | 10/12 | $1,531.06 | ||
| FTS-1014-224 | 1.876 | 1.876 | Yes | 10/14 | $1,449.89 | ||
| FTS-1014-224G | 1.876 | 1.876 | No | 10/14 | $1,449.89 | ||
| FTS-1014-225 | 1.876 | 2.376 | Yes | 10/14 | $1,539.48 | ||
| FTS-1014-225G | 1.876 | 2.376 | No | 10/14 | $1,539.49 | ||
| FTS-1014-226 | 2.376 | 1.876 | Yes | 10/14 | $1,532.59 | ||
| FTS-1014-226G | 2.376 | 1.876 | No | 10/14 | $1,532.59 | ||
| FTS-1014-227 | 2.376 | 2.376 | Yes | 10/14 | $1,622.18 | ||
| FTS-1014-227G | 2.376 | 2.376 | No | 10/14 | $1,622.19 | ||
| FTS-1014-228 | 2.376 | 2.876 | Yes | 10/14 | $1,672.65 | ||
| FTS-1014-228G | 2.376 | 2.876 | No | 10/14 | $1,672.65 | ||
| FTS-1014-229 | 2.876 | 2.376 | Yes | 10/14 | $1,666.15 | ||
| FTS-1014-229G | 2.876 | 2.376 | No | 10/14 | $1,666.15 | ||
| FTS-1014-230 | 2.876 | 2.876 | Yes | 10/14 | $1,716.61 | ||
| FTS-1014-230G | 2.876 | 2.876 | No | 10/14 | $1,716.62 | ||
| FTS-8490-221 | 1.376 | 1.376 | Yes | 84/90 | $769.55 | ||
| FTS-8490-221G | 1.376 | 1.376 | No | 84/90 | $769.56 | ||
| FTS-8490-222 | 1.376 | 1.876 | Yes | 84/90 | $817.78 | ||
| FTS-8490-222G | 1.376 | 1.876 | No | 84/90 | $817.79 | ||
| FTS-8490-223 | 1.876 | 1.376 | Yes | 84/90 | $814.32 | ||
| FTS-8490-223G | 1.876 | 1.376 | No | 84/90 | $814.33 | ||
| FTS-8490-224 | 1.876 | 1.876 | Yes | 84/90 | $862.55 | ||
| FTS-8490-224G | 1.876 | 1.876 | No | 84/90 | $862.56 | ||
| FTS-8490-225 | 1.876 | 2.376 | Yes | 84/90 | $910.84 | ||
| FTS-8490-225G | 1.876 | 2.376 | No | 84/90 | $910.84 | ||
| FTS-8490-226 | 2.376 | 1.876 | Yes | 84/90 | $907.35 | ||
| FTS-8490-226G | 2.376 | 1.876 | No | 84/90 | $907.35 | ||
| FTS-8490-227 | 2.376 | 2.376 | Yes | 84/90 | $955.63 | ||
| FTS-8490-227G | 2.376 | 2.376 | No | 84/90 | $955.64 | ||
| FTS-8490-228 | 2.376 | 2.876 | Yes | 84/90 | $976.96 | ||
| FTS-8490-228G | 2.376 | 2.876 | No | 84/90 | $976.97 | ||
| FTS-8490-229 | 2.876 | 2.376 | Yes | 84/90 | $969.45 | ||
| FTS-8490-229G | 2.876 | 2.376 | No | 84/90 | $969.45 | ||
| FTS-8490-230 | 2.876 | 2.876 | Yes | 84/90 | $990.78 | ||
| FTS-8490-230G | 2.876 | 2.876 | No | 84/90 | $990.78 |
