- Compact size works well in restricted-space locations.
- Rugged construction gives years of dependable service.
- Variety of inlet sizes provides exactly the right connection.
- 210°F (99°C) Temperature Rating allows installation into a wide range of applications.
- Operating Pressure max: 100 psi (6.9 bar)
- Optional Thermometer: 0 to 250°F (-20° to 120°C) ±2% accuracy (full scale)
- Optional Pressure Gauge: ±3% accuracy (full scale)
- No Mounting Restrictions ease installation in any position without extra brackets or hardware
- Made in the U.S.A.

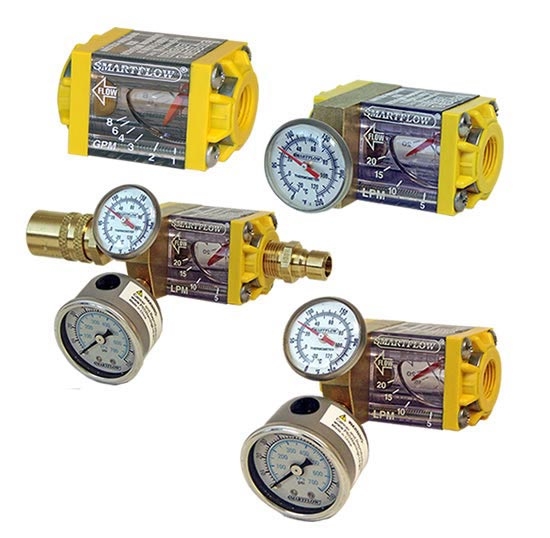

Smartflow® IceCube™ Flowmeters with Nylon Ends
PCS Company offers Smartflow® IceCube™ Flowmeters with Nylon Ends which are durable, vane-operated devices that provide visual indication of flow rate in many different styles and sizes. Rugged wetted parts are compatible with many process liquids. Optional temperature and pressure gauges add functionality and flexibility to Smartflow flowmeters. Brass quick-connect fittings are available on the smaller flowmeters to create an excellent, portable tool for determining flow and locating clogged lines.
*NEW* - Use the Manifold Builder for the Smartflow® IceCube™ Flowmeters with Nylon Ends to easily configure your regulator plus create interactive 3D visualization and CAD downloads. Once you have configured your regulator, simply shop the PCS Company website or contact PCS Company for your quotation.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Inlet Size (NPT) | End Cap | Accessories | Flow Range | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| FP2-A-100 | 1/4" | Nylon | Flowmeter only | 2 - 10 lpm | $57.00 | ||
| FP2-A-15 | 1/4" | Nylon | Flowmeter only | 0.2 - 1.5 gpm | $81.00 | ||
| FP2-A-200 | 1/4" | Nylon | Flowmeter only | 5 - 20 lpm | $57.00 | ||
| FP2-A-25 | 1/4" | Nylon | Flowmeter only | 0.5 - 2.5 gpm | $57.00 | ||
| FP2-A-300 | 1/4" | Nylon | Flowmeter only | 4 - 30 lpm | $57.00 | ||
| FP2-A-80 | 1/4" | Nylon | Flowmeter only | 1.0 - 8.0 gpm | $57.00 | ||
| FP2-B-100 | 1/4" | Nylon | Thermometer | 2 - 10 lpm | $133.00 | ||
| FP2-B-15 | 1/4" | Nylon | Thermometer | 0.2 - 1.5 gpm | $153.00 | ||
| FP2-B-200 | 1/4" | Nylon | Thermometer | 5 - 20 lpm | $133.00 | ||
| FP2-B-25 | 1/4" | Nylon | Thermometer | 0.5 - 2.5 gpm | $133.00 | ||
| FP2-B-300 | 1/4" | Nylon | Thermometer | 4 - 30 lpm | $133.00 | ||
| FP2-B-80 | 1/4" | Nylon | Thermometer | 1.0 - 8.0 gpm | $133.00 | ||
| FP2-C3-100 | 1/4" | Nylon | Thermometer and 100 psi Pressure Gauge | 2 - 10 lpm | $176.00 | ||
| FP2-C3-15 | 1/4" | Nylon | Thermometer and 100 psi Pressure Gauge | 0.2 - 1.5 gpm | $194.00 | ||
| FP2-C3-200 | 1/4" | Nylon | Thermometer and 100 psi Pressure Gauge | 5 - 20 lpm | $176.00 | ||
| FP2-C3-25 | 1/4" | Nylon | Thermometer and 100 psi Pressure Gauge | 0.5 - 2.5 gpm | $176.00 | ||
| FP2-C3-300 | 1/4" | Nylon | Thermometer and 100 psi Pressure Gauge | 4 - 30 lpm | $176.00 | ||
| FP2-C3-80 | 1/4" | Nylon | Thermometer and 100 psi Pressure Gauge | 1.0 - 8.0 gpm | $176.00 | ||
| FP2-CL-100 | 1/4" | Nylon | Thermometer and Liquid-Filled Pressure Gauge (100 psi) | 2 - 10 lpm | $194.00 | ||
| FP2-CL-15 | 1/4" | Nylon | Thermometer and Liquid-Filled Pressure Gauge (100 psi) | 0.2 - 1.5 gpm | $210.00 | ||
| FP2-CL-200 | 1/4" | Nylon | Thermometer and Liquid-Filled Pressure Gauge (100 psi) | 5 - 20 lpm | $194.00 | ||
| FP2-CL-25 | 1/4" | Nylon | Thermometer and Liquid-Filled Pressure Gauge (100 psi) | 0.5 - 2.5 gpm | $194.00 | ||
| FP2-CL-300 | 1/4" | Nylon | Thermometer and Liquid-Filled Pressure Gauge (100 psi) | 4 - 30 lpm | $194.00 | ||
| FP2-CL-80 | 1/4" | Nylon | Thermometer and Liquid-Filled Pressure Gauge (100 psi) | 1.0 - 8.0 gpm | $194.00 | ||
| FP2-D3-100 | 1/4" | Nylon | Thermometer, 100 psi Pressure Gauge, Quick Change Socket and Plug | 2 - 10 lpm | $194.00 | ||
| FP2-D3-15 | 1/4" | Nylon | Thermometer, 100 psi Pressure Gauge, Quick Change Socket and Plug | 0.2 - 1.5 gpm | $210.00 | ||
| FP2-D3-200 | 1/4" | Nylon | Thermometer, 100 psi Pressure Gauge, Quick Change Socket and Plug | 5 - 20 lpm | $194.00 | ||
| FP2-D3-25 | 1/4" | Nylon | Thermometer, 100 psi Pressure Gauge, Quick Change Socket and Plug | 0.5 - 2.5 gpm | $194.00 | ||
| FP2-D3-300 | 1/4" | Nylon | Thermometer, 100 psi Pressure Gauge, Quick Change Socket and Plug | 4 - 30 lpm | $194.00 | ||
| FP2-D3-80 | 1/4" | Nylon | Thermometer, 100 psi Pressure Gauge, Quick Change Socket and Plug | 1.0 - 8.0 gpm | $194.00 | ||
| FP2-DL-100 | 1/4" | Nylon | Thermometer, Liquid-Filled Pressure Gauge (100 psi), Quick Change Socket and Plug | 2 - 10 lpm | $215.00 | ||
| FP2-DL-15 | 1/4" | Nylon | Thermometer, Liquid-Filled Pressure Gauge (100 psi), Quick Change Socket and Plug | 0.2 - 1.5 gpm | $235.00 | ||
| FP2-DL-200 | 1/4" | Nylon | Thermometer, Liquid-Filled Pressure Gauge (100 psi), Quick Change Socket and Plug | 5 - 20 lpm | $215.00 | ||
| FP2-DL-25 | 1/4" | Nylon | Thermometer, Liquid-Filled Pressure Gauge (100 psi), Quick Change Socket and Plug | 0.5 - 2.5 gpm | $215.00 | ||
| FP2-DL-300 | 1/4" | Nylon | Thermometer, Liquid-Filled Pressure Gauge (100 psi), Quick Change Socket and Plug | 4 - 30 lpm | $215.00 | ||
| FP2-DL-80 | 1/4" | Nylon | Thermometer, Liquid-Filled Pressure Gauge (100 psi), Quick Change Socket and Plug | 1.0 - 8.0 gpm | $215.00 | ||
| FP2-E-100 | 1/4" | Nylon | Thermometer and Quick Change Socket and Plug | 2 - 10 lpm | $168.00 | ||
| FP2-E-15 | 1/4" | Nylon | Thermometer and Quick Change Socket and Plug | 0.2 - 1.5 gpm | $185.00 | ||
| FP2-E-200 | 1/4" | Nylon | Thermometer and Quick Change Socket and Plug | 5 - 20 lpm | $168.00 | ||
| FP2-E-25 | 1/4" | Nylon | Thermometer and Quick Change Socket and Plug | 0.5 - 2.5 gpm | $168.00 | ||
| FP2-E-300 | 1/4" | Nylon | Thermometer and Quick Change Socket and Plug | 4 - 30 lpm | $168.00 | ||
| FP2-E-80 | 1/4" | Nylon | Thermometer and Quick Change Socket and Plug | 1.0 - 8.0 gpm | $168.00 | ||
| FP2-F3-100 | 1/4" | Nylon | 100 psi Pressure Gauge | 2 - 10 lpm | $133.00 | ||
| FP2-F3-15 | 1/4" | Nylon | 100 psi Pressure Gauge | 0.2 - 1.5 gpm | $153.00 | ||
| FP2-F3-200 | 1/4" | Nylon | 100 psi Pressure Gauge | 5 - 20 lpm | $133.00 | ||
| FP2-F3-25 | 1/4" | Nylon | 100 psi Pressure Gauge | 0.5 - 2.5 gpm | $133.00 | ||
| FP2-F3-300 | 1/4" | Nylon | 100 psi Pressure Gauge | 4 - 30 lpm | $133.00 | ||
| FP2-F3-80 | 1/4" | Nylon | 100 psi Pressure Gauge | 1.0 - 8.0 gpm | $133.00 | ||
| FP2-FL-100 | 1/4" | Nylon | Liquid-Filled Pressure Gauge (100 psi) | 2 - 10 lpm | $147.00 | ||
| FP2-FL-15 | 1/4" | Nylon | Liquid-Filled Pressure Gauge (100 psi) | 0.2 - 1.5 gpm | $171.00 | ||
| FP2-FL-200 | 1/4" | Nylon | Liquid-Filled Pressure Gauge (100 psi) | 5 - 20 lpm | $147.00 | ||
| FP2-FL-25 | 1/4" | Nylon | Liquid-Filled Pressure Gauge (100 psi) | 0.5 - 2.5 gpm | $147.00 | ||
| FP2-FL-300 | 1/4" | Nylon | Liquid-Filled Pressure Gauge (100 psi) | 4 - 30 lpm | $147.00 | ||
| FP2-FL-80 | 3/8" | Nylon | Liquid-Filled Pressure Gauge (100 psi) | 1.0 - 8.0 gpm | $147.00 | ||
| FP3-A-100 | 3/8" | Nylon | Flowmeter Only | 2 - 10 lpm | $57.00 | ||
| FP3-A-15 | 3/8" | Nylon | Flowmeter Only | 0.2 - 1.5 gpm | $81.00 | ||
| FP3-A-200 | 3/8" | Nylon | Flowmeter Only | 5 - 20 lpm | $57.00 | ||
| FP3-A-25 | 3/8" | Nylon | Flowmeter Only | 0.5 - 2.5 gpm | $57.00 | ||
| FP3-A-300 | 3/8" | Nylon | Flowmeter Only | 4 - 30 lpm | $57.00 | ||
| FP3-A-80 | 3/8" | Nylon | Flowmeter Only | 1.0 - 8.0 gpm | $57.00 | ||
| FP3-B-100 | 3/8" | Nylon | Thermometer | 2 - 10 lpm | $133.00 | ||
| FP3-B-15 | 3/8" | Nylon | Thermometer | 0.2 - 1.5 gpm | $153.00 | ||
| FP3-B-200 | 3/8" | Nylon | Thermometer | 5 - 20 lpm | $133.00 | ||
| FP3-B-25 | 3/8" | Nylon | Thermometer | 0.5 - 2.5 gpm | $133.00 | ||
| FP3-B-300 | 3/8" | Nylon | Thermometer | 4 - 30 lpm | $133.00 | ||
| FP3-B-80 | 3/8" | Nylon | Thermometer | 1.0 - 8.0 gpm | $133.00 | ||
| FP3-C3-100 | 3/8" | Nylon | Thermometer and 100 psi Pressure Gauge | 2 - 10 lpm | $176.00 | ||
| FP3-C3-15 | 3/8" | Nylon | Thermometer and 100 psi Pressure Gauge | 0.2 - 1.5 gpm | $194.00 | ||
| FP3-C3-200 | 3/8" | Nylon | Thermometer and 100 psi Pressure Gauge | 5 - 20 lpm | $176.00 | ||
| FP3-C3-25 | 3/8" | Nylon | Thermometer and 100 psi Pressure Gauge | 0.5 - 2.5 gpm | $176.00 | ||
| FP3-C3-300 | 3/8" | Nylon | Thermometer and 100 psi Pressure Gauge | 4 - 30 lpm | $176.00 | ||
| FP3-C3-80 | 3/8" | Nylon | Thermometer and 100 psi Pressure Gauge | 1.0 - 8.0 gpm | $176.00 | ||
| FP3-CL-100 | 3/8" | Nylon | Thermometer and Liquid-Filled Pressure Gauge (100 psi) | 2 - 10 lpm | $194.00 | ||
| FP3-CL-15 | 3/8" | Nylon | Thermometer and Liquid-Filled Pressure Gauge (100 psi) | 0.2 - 1.5 gpm | $210.00 | ||
| FP3-CL-200 | 3/8" | Nylon | Thermometer and Liquid-Filled Pressure Gauge (100 psi) | 5 - 20 lpm | $194.00 | ||
| FP3-CL-25 | 3/8" | Nylon | Thermometer and Liquid-Filled Pressure Gauge (100 psi) | 0.5 - 2.5 gpm | $194.00 | ||
| FP3-CL-300 | 3/8" | Nylon | Thermometer and Liquid-Filled Pressure Gauge (100 psi) | 4 - 30 lpm | $194.00 | ||
| FP3-CL-80 | 3/8" | Nylon | Thermometer and Liquid-Filled Pressure Gauge (100 psi) | 1.0 - 8.0 gpm | $194.00 | ||
| FP3-D2-100 | 3/8" | Nylon | Thermometer, 60 psi Pressure Gauge, Quick Change Socket and Plug | 2 - 10 lpm | $194.00 | ||
| FP3-D3-100 | 3/8" | Nylon | Thermometer, 100 psi Pressure Gauge, Quick Change Socket and Plug | 2 - 10 lpm | $194.00 | ||
| FP3-D3-15 | 3/8" | Nylon | Thermometer, 100 psi Pressure Gauge, Quick Change Socket and Plug | 0.2 - 1.5 gpm | $210.00 | ||
| FP3-D3-200 | 3/8" | Nylon | Thermometer, 100 psi Pressure Gauge, Quick Change Socket and Plug | 5 - 20 lpm | $194.00 | ||
| FP3-D3-25 | 3/8" | Nylon | Thermometer, 100 psi Pressure Gauge, Quick Change Socket and Plug | 0.5 - 2.5 gpm | $194.00 | ||
| FP3-D3-300 | 3/8" | Nylon | Thermometer, 100 psi Pressure Gauge, Quick Change Socket and Plug | 4 - 30 lpm | $194.00 | ||
| FP3-D3-80 | 3/8" | Nylon | Thermometer, 100 psi Pressure Gauge, Quick Change Socket and Plug | 1.0 - 8.0 gpm | $194.00 | ||
| FP3-DL-100 | 3/8" | Nylon | Thermometer, Liquid-Filled Pressure Gauge (100 psi), Quick Change Socket and Plug | 2 - 10 lpm | $215.00 | ||
| FP3-DL-15 | 3/8" | Nylon | Thermometer, Liquid-Filled Pressure Gauge (100 psi), Quick Change Socket and Plug | 0.2 - 1.5 gpm | $235.00 | ||
| FP3-DL-200 | 3/8" | Nylon | Thermometer, Liquid-Filled Pressure Gauge (100 psi), Quick Change Socket and Plug | 5 - 20 lpm | $215.00 | ||
| FP3-DL-25 | 3/8" | Nylon | Thermometer, Liquid-Filled Pressure Gauge (100 psi), Quick Change Socket and Plug | 0.5 - 2.5 gpm | $215.00 | ||
| FP3-DL-300 | 3/8" | Nylon | Thermometer, Liquid-Filled Pressure Gauge (100 psi), Quick Change Socket and Plug | 4 - 30 lpm | $215.00 | ||
| FP3-DL-80 | 3/8" | Nylon | Thermometer, Liquid-Filled Pressure Gauge (100 psi), Quick Change Socket and Plug | 1.0 - 8.0 gpm | $215.00 | ||
| FP3-E-100 | 3/8" | Nylon | Thermometer and Quick Change Socket and Plug | 2 - 10 lpm | $168.00 | ||
| FP3-E-15 | 3/8" | Nylon | Thermometer and Quick Change Socket and Plug | 0.2 - 1.5 gpm | $185.00 | ||
| FP3-E-200 | 3/8" | Nylon | Thermometer and Quick Change Socket and Plug | 5 - 20 lpm | $168.00 | ||
| FP3-E-25 | 3/8" | Nylon | Thermometer and Quick Change Socket and Plug | 0.5 - 2.5 gpm | $168.00 | ||
| FP3-E-300 | 3/8" | Nylon | Thermometer and Quick Change Socket and Plug | 4 - 30 lpm | $168.00 | ||
| FP3-E-80 | 3/8" | Nylon | Thermometer and Quick Change Socket and Plug | 1.0 - 8.0 gpm | $168.00 | ||
| FP3-F3-100 | 3/8" | Nylon | 100 psi Pressure Gauge | 2 - 10 lpm | $133.00 | ||
| FP3-F3-15 | 3/8" | Nylon | 100 psi Pressure Gauge | 0.2 - 1.5 gpm | $153.00 | ||
| FP3-F3-200 | 3/8" | Nylon | 100 psi Pressure Gauge | 5 - 20 lpm | $133.00 | ||
| FP3-F3-25 | 3/8" | Nylon | 100 psi Pressure Gauge | 0.5 - 2.5 gpm | $133.00 | ||
| FP3-F3-300 | 3/8" | Nylon | 100 psi Pressure Gauge | 4 - 30 lpm | $133.00 | ||
| FP3-F3-80 | 3/8" | Nylon | 100 psi Pressure Gauge | 1.0 - 8.0 gpm | $133.00 | ||
| FP3-FL-100 | 3/8" | Nylon | Liquid-Filled Pressure Gauge (100 psi) | 2 - 10 lpm | $147.00 | ||
| FP3-FL-15 | 3/8" | Nylon | Liquid-Filled Pressure Gauge (100 psi) | 0.2 - 1.5 gpm | $171.00 | ||
| FP3-FL-200 | 3/8" | Nylon | Liquid-Filled Pressure Gauge (100 psi) | 5 - 20 lpm | $147.00 | ||
| FP3-FL-25 | 3/8" | Nylon | Liquid-Filled Pressure Gauge (100 psi) | 0.5 - 2.5 gpm | $147.00 | ||
| FP3-FL-300 | 3/8" | Nylon | Liquid-Filled Pressure Gauge (100 psi) | 4 - 30 lpm | $147.00 | ||
| FP3-FL-80 | 3/8" | Nylon | Liquid-Filled Pressure Gauge (100 psi) | 1.0 - 8.0 gpm | $147.00 | ||
| FP4-A-100 | 1/2" | Nylon | Flowmeter Only | 2 - 10 lpm | $57.00 | ||
| FP4-A-15 | 1/2" | Nylon | Flowmeter Only | 0.2 - 1.5 gpm | $81.00 | ||
| FP4-A-200 | 1/2" | Nylon | Flowmeter Only | 5 - 20 lpm | $57.00 | ||
| FP4-A-25 | 1/2" | Nylon | Flowmeter Only | 0.5 - 2.5 gpm | $57.00 | ||
| FP4-A-300 | 1/2" | Nylon | Flowmeter Only | 4 - 30 lpm | $57.00 | ||
| FP4-A-80 | 1/2" | Nylon | Flowmeter Only | 1.0 - 8.0 gpm | $57.00 | ||
| FP4-B-100 | 1/2" | Nylon | Thermometer | 2 - 10 lpm | $133.00 | ||
| FP4-B-15 | 1/2" | Nylon | Thermometer | 0.2 - 1.5 gpm | $153.00 | ||
| FP4-B-200 | 1/2" | Nylon | Thermometer | 5 - 20 lpm | $133.00 | ||
| FP4-B-25 | 1/2" | Nylon | Thermometer | 0.5 - 2.5 gpm | $133.00 | ||
| FP4-B-300 | 1/2" | Nylon | Thermometer | 4 - 30 lpm | $133.00 | ||
| FP4-B-80 | 1/2" | Nylon | Thermometer | 1.0 - 8.0 gpm | $133.00 | ||
| FP4-C1-80 | 1/2" | Nylon | Thermometer and 30 psi Pressure Gauge | 1.0 - 8.0 gpm | $176.00 | ||
| FP4-C3-100 | 1/2" | Nylon | Thermometer and 100 psi Pressure Gauge | 2 - 10 lpm | $176.00 | ||
| FP4-C3-15 | 1/2" | Nylon | Thermometer and 100 psi Pressure Gauge | 0.2 - 1.5 gpm | $194.00 | ||
| FP4-C3-200 | 1/2" | Nylon | Thermometer and 100 psi Pressure Gauge | 5 - 20 lpm | $176.00 | ||
| FP4-C3-25 | 1/2" | Nylon | Thermometer and 100 psi Pressure Gauge | 0.5 - 2.5 gpm | $176.00 | ||
| FP4-C3-300 | 1/2" | Nylon | Thermometer and 100 psi Pressure Gauge | 4 - 30 lpm | $176.00 | ||
| FP4-C3-80 | 1/2" | Nylon | Thermometer and 100 psi Pressure Gauge | 1.0 - 8.0 gpm | $176.00 | ||
| FP4-CL-100 | 1/2" | Nylon | Thermometer and Liquid-Filled Pressure Gauge (100 psi) | 2 - 10 lpm | $176.00 | ||
| FP4-CL-15 | 1/2" | Nylon | Thermometer and Liquid-Filled Pressure Gauge (100 psi) | 0.2 - 1.5 gpm | $210.00 | ||
| FP4-CL-200 | 1/2" | Nylon | Thermometer and Liquid-Filled Pressure Gauge (100 psi) | 5 - 20 lpm | $194.00 | ||
| FP4-CL-25 | 1/2" | Nylon | Thermometer and Liquid-Filled Pressure Gauge (100 psi) | 0.5 - 2.5 gpm | $194.00 | ||
| FP4-CL-300 | 1/2" | Nylon | Thermometer and Liquid-Filled Pressure Gauge (100 psi) | 4 - 30 lpm | $194.00 | ||
| FP4-CL-80 | 1/2" | Nylon | Thermometer and Liquid-Filled Pressure Gauge (100 psi) | 1.0 - 8.0 gpm | $194.00 | ||
| FP4-D2-300 | 1/2" | Nylon | Thermometer, 60 psi Pressure Gauge, Quick Change Socket and Plug | 4 - 30 lpm | $210.00 | ||
| FP4-D3-100 | 1/2" | Nylon | Thermometer, 100 psi Pressure Gauge, Quick Change Socket and Plug | 2 - 10 lpm | $210.00 | ||
| FP4-D3-15 | 1/2" | Nylon | Thermometer, 100 psi Pressure Gauge, Quick Change Socket and Plug | 0.2 - 1.5 gpm | $224.00 | ||
| FP4-D3-200 | 1/2" | Nylon | Thermometer, 100 psi Pressure Gauge, Quick Change Socket and Plug | 5 - 20 lpm | $210.00 | ||
| FP4-D3-25 | 1/2" | Nylon | Thermometer, 100 psi Pressure Gauge, Quick Change Socket and Plug | 0.5 - 2.5 gpm | $210.00 | ||
| FP4-D3-300 | 1/2" | Nylon | Thermometer, 100 psi Pressure Gauge, Quick Change Socket and Plug | 4 - 30 lpm | $210.00 | ||
| FP4-D3-80 | 1/2" | Nylon | Thermometer, 100 psi Pressure Gauge, Quick Change Socket and Plug | 1.0 - 8.0 gpm | $210.00 | ||
| FP4-DL-100 | 1/2" | Nylon | Thermometer, Liquid-Filled Pressure Gauge (100 psi), Quick Change Socket and Plug | 2 - 10 lpm | $231.00 | ||
| FP4-DL-15 | 1/2" | Nylon | Thermometer, Liquid-Filled Pressure Gauge (100 psi), Quick Change Socket and Plug | 0.2 - 1.5 gpm | $249.00 | ||
| FP4-DL-200 | 1/2" | Nylon | Thermometer, Liquid-Filled Pressure Gauge (100 psi), Quick Change Socket and Plug | 5 - 20 lpm | $231.00 | ||
| FP4-DL-25 | 1/2" | Nylon | Thermometer, Liquid-Filled Pressure Gauge (100 psi), Quick Change Socket and Plug | 0.5 - 2.5 gpm | $231.00 | ||
| FP4-DL-300 | 1/2" | Nylon | Thermometer, Liquid-Filled Pressure Gauge (100 psi), Quick Change Socket and Plug | 4 - 30 lpm | $231.00 | ||
| FP4-DL-80 | 1/2" | Nylon | Thermometer, Liquid-Filled Pressure Gauge (100 psi), Quick Change Socket and Plug | 1.0 - 8.0 gpm | $231.00 | ||
| FP4-E-100 | 1/2" | Nylon | Thermometer and Quick Change Socket and Plug | 2 - 10 lpm | $184.00 | ||
| FP4-E-15 | 1/2" | Nylon | Thermometer and Quick Change Socket and Plug | 0.2 - 1.5 gpm | $215.00 | ||
| FP4-E-200 | 1/2" | Nylon | Thermometer and Quick Change Socket and Plug | 5 - 20 lpm | $184.00 | ||
| FP4-E-25 | 1/2" | Nylon | Thermometer and Quick Change Socket and Plug | 0.5 - 2.5 gpm | $184.00 | ||
| FP4-E-300 | 1/2" | Nylon | Thermometer and Quick Change Socket and Plug | 4 - 30 lpm | $184.00 | ||
| FP4-E-80 | 1/2" | Nylon | Thermometer and Quick Change Socket and Plug | 1.0 - 8.0 gpm | $184.00 | ||
| FP4-F3-100 | 1/2" | Nylon | 100 psi Pressure Gauge | 2 - 10 lpm | $133.00 | ||
| FP4-F3-15 | 1/2" | Nylon | 100 psi Pressure Gauge | 0.2 - 1.5 gpm | $153.00 | ||
| FP4-F3-200 | 1/2" | Nylon | 100 psi Pressure Gauge | 5 - 20 lpm | $133.00 | ||
| FP4-F3-25 | 1/2" | Nylon | 100 psi Pressure Gauge | 0.5 - 2.5 gpm | $133.00 | ||
| FP4-F3-300 | 1/2" | Nylon | 100 psi Pressure Gauge | 4 - 30 lpm | $133.00 | ||
| FP4-F3-80 | 1/2" | Nylon | 100 psi Pressure Gauge | 1.0 - 8.0 gpm | $133.00 | ||
| FP4-FL-100 | 1/2" | Nylon | Liquid-Filled Pressure Gauge (100 psi) | 2 - 10 lpm | $147.00 | ||
| FP4-FL-15 | 1/2" | Nylon | Liquid-Filled Pressure Gauge (100 psi) | 0.2 - 1.5 gpm | $171.00 | ||
| FP4-FL-200 | 1/2" | Nylon | Liquid-Filled Pressure Gauge (100 psi) | 5 - 20 lpm | $147.00 | ||
| FP4-FL-25 | 1/2" | Nylon | Liquid-Filled Pressure Gauge (100 psi) | 0.5 - 2.5 gpm | $147.00 | ||
| FP4-FL-300 | 1/2" | Nylon | Liquid-Filled Pressure Gauge (100 psi) | 4 - 30 lpm | $147.00 | ||
| FP4-FL-80 | 1/2" | Nylon | Liquid-Filled Pressure Gauge (100 psi) | 1.0 - 8.0 gpm | $147.00 |
