- Reduce cycle time
- Retrofit standard B series sprue bushings
- Recommended where sprue mass is limiting cycle time
- Lower scrap rate
- Increase efficiency
- Better process control
- Custom sizes available
- Stainless steel construction
- 44-48 HRC

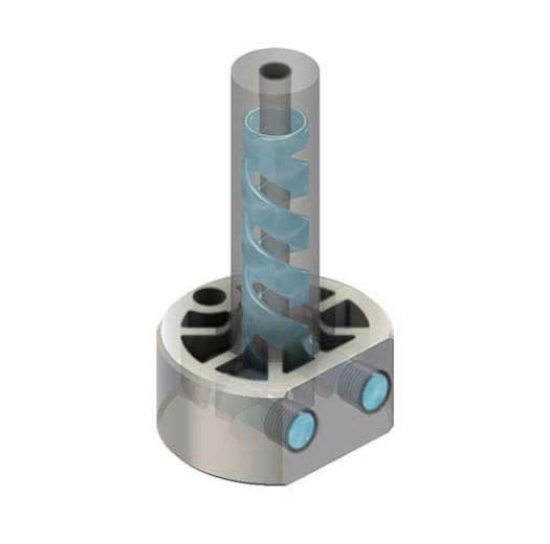

Conformal Cooled Sprue Bushing B Series - Dia 1"
PCS Company provides a cycle improvement product with PCS Conformal Cooled Sprue Bushings. Replace a standard B series sprue bushing with an efficient conformal cooled sprue bushing in either 1/2" or 3/4" radius. Stainless steel construction provides corrosion resistance and longevity. Choose from 12 standard sizes or contact PCS for a custom conformal cooled sprue bushing.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | D Body Diameter | A Body Length | L Overall Length | Orifice | Radius | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|
| B-602-51C | 1.000 | 1.906 | 2.781 | 5/32 | 1/2 | $890.95 | ||
| B-602-53C | 1.000 | 1.906 | 2.781 | 5/32 | 3/4 | $849.75 | ||
| B-602-71C | 1.000 | 1.906 | 2.781 | 7/32 | 1/2 | $890.95 | ||
| B-602-73C | 1.000 | 1.906 | 2.781 | 7/32 | 3/4 | $849.75 | ||
| B-603-51C | 1.000 | 2.406 | 3.281 | 5/32 | 1/2 | $973.35 | ||
| B-603-53C | 1.000 | 2.406 | 3.281 | 5/32 | 3/4 | $963.05 | ||
| B-603-71C | 1.000 | 2.406 | 3.281 | 7/32 | 1/2 | $973.35 | ||
| B-603-73C | 1.000 | 2.406 | 3.281 | 7/32 | 3/4 | $963.05 | ||
| B-604-51C | 1.000 | 2.906 | 3.781 | 5/32 | 1/2 | $1,060.90 | ||
| B-604-53C | 1.000 | 2.906 | 3.781 | 5/32 | 3/4 | $1,009.40 | ||
| B-604-71C | 1.000 | 2.906 | 3.781 | 7/32 | 1/2 | $1,060.90 | ||
| B-604-73C | 1.000 | 2.906 | 3.781 | 7/32 | 3/4 | $1,009.40 |
