- Unit of Measure: Inch
- Material: Brass
- Exclusive angular connecting hole allows pipes to be torqued tight without choking off flow
- Easy socket wrench installation requires minimal turning clearance
- One piece construction ensures complete removal
- Made in U.S.A.

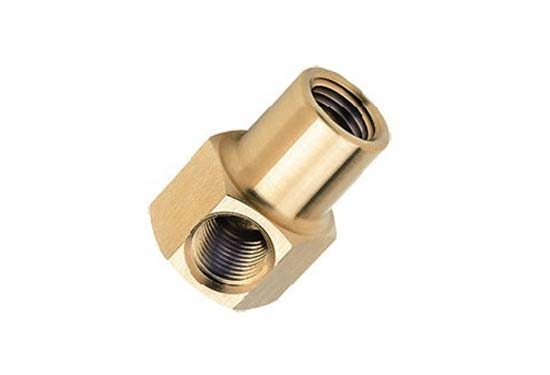

Brass Hex Elbows
PCS Company offers Brass Hex Elbows which require minimal clearance for installation and removal. Full flow path allows connecting fittings to be torqued tight without restricting flow.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Material | A Input Pipe Size | B Output Pipe Size | D Wrench Clearance | Hex Size | E Input Pipe Location | L Overall Length | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| HS-0-B | Brass | 1/16 | 1/16 | 1 | 9/16 | 7/32 | 13/16 | $5.12 | ||
| HS-1-B | Brass | 1/8 | 1/8 | 1-1/4 | 3/4 | 9/32 | 1 | $3.75 | ||
| HS-2-B | Brass | 1/8 | 1/4 | 1-1/4 | 3/4 | 9/32 | 1-1/4 | $4.68 | ||
| HS-3-B | Brass | 1/4 | 1/4 | 1-3/8 | 7/8 | 11/32 | 1-3/8 | $4.99 | ||
| HS-4-B | Brass | 1/4 | 3/8 | 1-3/8 | 7/8 | 11/32 | 1-3/8 | $5.39 | ||
| HS-5-B | Brass | 3/8 | 3/8 | 1-1/2 | 1 | 1/2 | 1-5/8 | $5.66 | ||
| HS-6-B | Brass | 1/2 | 1/2 | 1-7/8 | 1-1/4 | 9/16 | 1-7/8 | $9.68 | ||
| HS-7-B | Brass | 3/4 | 3/4 | 2-1/4 | 1-1/2 | 5/8 | 2-1/4 | $15.16 |
