- Unit of Measure - Metric
- Hardness 62-64 HRC
- Material: 5732 Stainless Steel

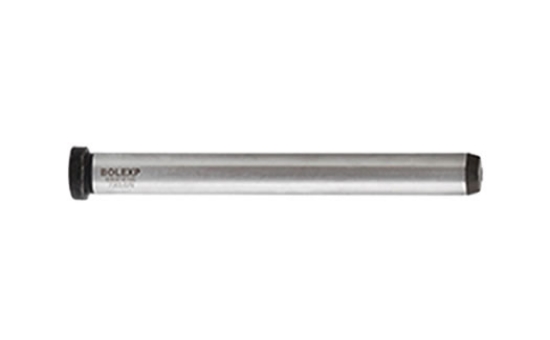

Metric Leader Pin - Column - B818
The Bolexp metric leader pins are made of surface hardened steel that leaves the core soft to absorb any bending that my occur.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | d1 Pin Diameter | L Overall Length | d2 Head Diameter | a Head Thickness | b Lead Length | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|
| B81812080 | 12 | 80 | 16 | 4 | 4 | $13.43 | ||
| B81812100 | 12 | 100 | 16 | 4 | 4 | $15.52 | ||
| B81812120 | 12 | 120 | 16 | 4 | 4 | $17.60 | ||
| B81812140 | 12 | 140 | 16 | 4 | 4 | $22.85 | ||
| B81818100 | 18 | 100 | 22 | 6 | 7 | $20.54 | ||
| B81818120 | 18 | 120 | 22 | 6 | 7 | $23.70 | ||
| B81818140 | 18 | 140 | 22 | 6 | 7 | $26.82 | ||
| B81818160 | 18 | 160 | 22 | 6 | 7 | $28.31 | ||
| B81818200 | 18 | 200 | 22 | 6 | 7 | $29.76 | ||
| B81824160 | 24 | 160 | 28 | 6 | 7 | $29.56 | ||
| B81824200 | 24 | 200 | 28 | 6 | 7 | $33.95 | ||
| B81824240 | 24 | 240 | 28 | 6 | 7 | $40.25 | ||
| B81824300 | 24 | 300 | 28 | 6 | 7 | $49.47 | ||
| B81830160 | 30 | 160 | 36 | 6 | 7 | $35.86 | ||
| B81830200 | 30 | 200 | 36 | 6 | 7 | $37.09 | ||
| B81830240 | 30 | 240 | 36 | 6 | 7 | $48.83 | ||
| B81830300 | 30 | 300 | 36 | 6 | 7 | $74.62 |
