- Unit of Measure - Inch
- Thickness is relieved on male insert past the parting line
- Armor Coating provides increased lubricity
- Female inserts are notched for easy removal
- Exposed edges chamfered
- Grease grooves present on male insert
- Radius on all four corners

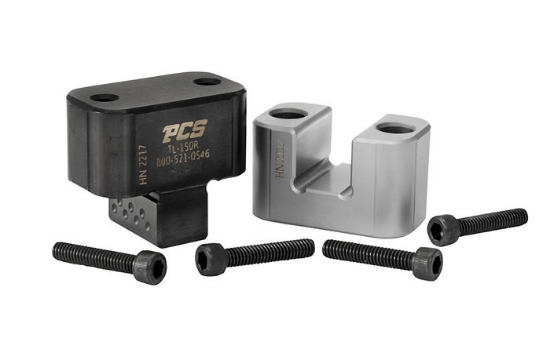

Radius Top Locks
PCS Company's Radius Top Locks provide positive alignment between mold halves and come standard with dual radii which allows for them to be mounted internally. These locks are hardened and precision ground to assure complete interchangeability. The lubricious properties of Armor Coating treatment combined with the qualities of graphitic tool steel provide a dependable, smooth acting, long lasting locking system.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | W Lock Width | T Size Across | C Locking Feature Width | D Female Lock Height | E Male Base Height | F Locking Feature Length | R Corner Radius | SHCS Male | SHCS Female | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TL-100R | 1.0000 | 0.500 | 0.3750 | 0.500 | 0.375 | 0.275 | 0.187 | 6-32 x 1/2 | 6-32 x 1/2 | $176.58 | ||
| TL-125R | 1.2500 | 0.625 | 0.4380 | 0.625 | 0.500 | 0.375 | 0.250 | 6-32 x 5/8 | 6-32 x 5/8 | $195.51 | ||
| TL-150R | 1.5000 | 0.875 | 0.5000 | 0.875 | 0.750 | 0.500 | 0.250 | 8-32 x 7/8 | 8-32 x 7/8 | $215.71 | ||
| TL-200R | 2.0000 | 1.000 | 0.7500 | 1.125 | 0.750 | 0.625 | 0.375 | 10-32 x 7/8 | 10-32 x 7/8 | $274.79 | ||
| TL-300R | 3.0000 | 1.125 | 1.1250 | 1.500 | 0.750 | 0.750 | 0.500 | 1/4-20 x 7/8 | 1/4-20 x 7/8 | $342.40 |
