- Unit of Measure - Inch
- Modular construction
- 6061-T6 Aluminum Material
- Anodized for corrosion protection
- Pre-drilled mounting holes
- Viton O-Rings and Tie Rods included
- 90° inlet available
- Maximum operating temperature – 400F/204C
- Made in the U.S.A.

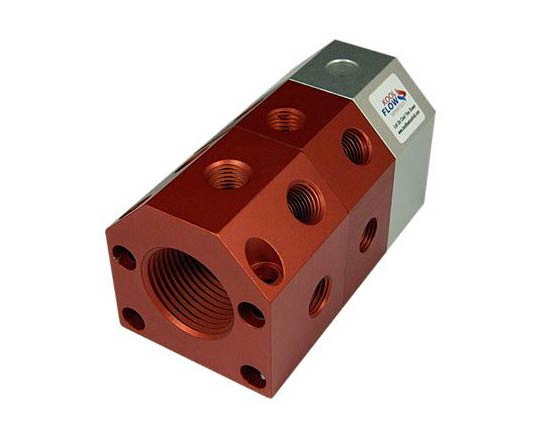

FB4 Port-to-Blank Assemblies
The modular design of the Kool Flow Manifold™ allows for changes to be made at any time according to your needs. FB4 Series manifolds have a 2” inlet hole size and a ¾”outlet hole size. The Port to Divide Assembly combines your cooling needs into one manifold. Separate hot and cold with a mid block and mount in one easy location. Kool Flow Manifolds are also available with a 90° inlet option.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | 90° Inlet | Block Size | Dimension A | Dimension B | Inlet Hole Size | Block Color | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| FB4-1-10-B-PB | N/A | 3.50 x 3.50 | 3.13 | 4.5 | 2 in NPT | Blue | $134.35 | ||
| FB4-1-10-R-PB | N/A | 3.50 x 3.50 | 3.13 | 4.5 | 2 in NPT | Red | $134.35 | ||
| FB4-2-10-B-PB | N/A | 3.50 x 3.50 | 5.13 | 6.5 | 2 in NPT | Blue | $197.76 | ||
| FB4-2-10-R-PB | N/A | 3.50 x 3.50 | 5.13 | 6.5 | 2 in NPT | Red | $197.76 | ||
| FB4-3-10-B-PB | N/A | 3.50 x 3.50 | 7.13 | 8.5 | 2 in NPT | Blue | $285.00 | ||
| FB4-3-10-R-PB | N/A | 3.50 x 3.50 | 7.13 | 8.5 | 2 in NPT | Red | $285.00 | ||
| FB4-4-10-B-PB | N/A | 3.50 x 3.50 | 9.13 | 10.5 | 2 in NPT | Blue | $327.00 | ||
| FB4-4-10-R-PB | N/A | 3.50 x 3.50 | 9.13 | 10.5 | 2 in NPT | Red | $327.00 | ||
| FB4-5-10-B-PB | N/A | 3.50 x 3.50 | 11.13 | 12.5 | 2 in NPT | Blue | $385.00 | ||
| FB4-5-10-R-PB | N/A | 3.50 x 3.50 | 11.13 | 12.5 | 2 in NPT | Red | $385.00 | ||
| FB490-1-10-R-PB | Yes | 3.50 x 3.50 | 4.13 | 5.5 | 2 in NPT | Red | $175.00 | ||
| FB490-1-8-B-PB | Yes | 3.50 x 3.50 | 4.13 | 5.5 | 2 in NPT | Blue | $140.62 | ||
| FB490-1-8-R-PB | Yes | 3.50 x 3.50 | 4.13 | 5.5 | 2 in NPT | Red | $140.62 | ||
| FB490-2-10-B-PB | Yes | 3.50 x 3.50 | 6.13 | 7.5 | 2 in NPT | Blue | $227.78 | ||
| FB490-2-10-R-PB | Yes | 3.50 x 3.50 | 6.13 | 7.5 | 2 in NPT | Red | $227.78 | ||
| FB490-2-8-B-PB | Yes | 3.50 x 3.50 | 6.13 | 7.5 | 2 in NPT | Blue | $191.43 | ||
| FB490-2-8-R-PB | Yes | 3.50 x 3.50 | 6.13 | 7.5 | 2 in NPT | Red | $191.43 | ||
| FB490-3-10-B-PB | Yes | 3.50 x 3.50 | 8.13 | 9.5 | 2 in NPT | Blue | $295.00 | ||
| FB490-3-10-R-PB | Yes | 3.50 x 3.50 | 8.13 | 9.5 | 2 in NPT | Red | $295.00 | ||
| FB490-3-8-B-PB | Yes | 3.50 x 3.50 | 8.13 | 9.5 | 2 in NPT | Blue | $242.00 | ||
| FB490-3-8-R-PB | Yes | 3.50 x 3.50 | 8.13 | 9.5 | 2 in NPT | Red | $242.00 | ||
| FB490-4-10-B-PB | Yes | 3.50 x 3.50 | 10.13 | 11.5 | 2 in NPT | Blue | $350.00 | ||
| FB490-4-10-R-PB | Yes | 3.50 x 3.50 | 10.13 | 11.5 | 2 in NPT | Red | $350.00 | ||
| FB490-4-8-B-PB | Yes | 3.50 x 3.50 | 10.13 | 11.5 | 2 in NPT | Blue | $293.05 | ||
| FB490-4-8-R-PB | Yes | 3.50 x 3.50 | 10.13 | 11.5 | 2 in NPT | Red | $293.05 | ||
| FB490-5-10-B-PB | Yes | 3.50 x 3.50 | 12.13 | 13.5 | 2 in NPT | Blue | $410.00 | ||
| FB490-5-10-R-PB | Yes | 3.50 x 3.50 | 12.13 | 13.5 | 2 in NPT | Red | $410.00 | ||
| FB490-5-8-B-PB | Yes | 3.50 x 3.50 | 12.13 | 13.5 | 2 in NPT | Blue | $343.86 | ||
| FB490-5-8-R-PB | Yes | 3.50 x 3.50 | 12.13 | 13.5 | 2 in NPT | Red | $343.86 |
