- Unit of Measure - Inch
- Easy installation and removal using hex key
- Compact design allows for minimum clearance installation
- 12" High Flow Stainless Steel Tube included
- 2" long Stainless Steel Pipe Nipple included
- Stainless Steel Heads available upon request
- Made in the U.S.A.

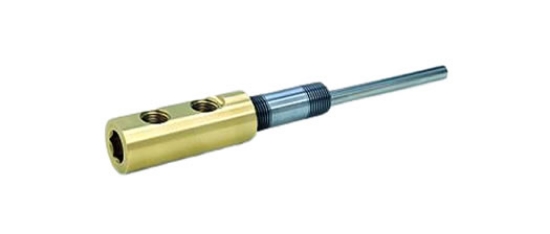

Hex Key Cascade Assemblies
PCS Company's Hex Key Cascade Assemblies can be installed and removed in very tight spaces with a hex key wrench. The high flow tubes ensure flow is maintained in these very tight spaces. Assemblies include brass head, 12" high flow stainless tube and 2" pipe nipples.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Pipe Tap Size (NPT) | Mold Nipple (NPT) M | Tube Thread Size | High Flow Tube | L Length | C Outlet Hole Spread | A Outlet Hole Location | Hex Key Size | Nominal Clearance Drill | O.D. | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E121N-4 | 1/4 | 1/2 | 7/16-20 | HF375T-12 | 2.812 | 1 | 1 | 1/2 | 1-1/4 | 1.235 | $36.67 | ||
| E141N | 1/8 | 1/4 | 5/16-24 | HF250T-12 | 2.5 | 1 | 13/16 | 1/2 | 1 | 0.985 | $26.36 | ||
| E141N-4 | 1/4 | 1/4 | 5/16-24 | HF250T-12 | 2.625 | 1 | 7/8 | 1/2 | 1 | 0.985 | $26.87 | ||
| E146N | 1/8 | 1/4 | 5/16-24 | HF250T-12 | 2.187 | 11/16 | 13/16 | 1/2 | 1 | 0.985 | $23.98 | ||
| E146N-4 | 1/4 | 1/4 | 5/16-24 | HF250T-12 | 2.312 | 11/16 | 7/8 | 1/2 | 1 | 9.85 | $26.87 | ||
| E16N | 1/16 | 1/16 | 10-32 | HF125T-12 | 1.625 | 9/16 | 1/2 | 5/16 | 5/8 | 0.61 | $26.11 | ||
| E16N-2 | 1/16 | 1/16 | 1/4-28 | HF187T-12 | 1.687 | 9/16 | 9/16 | 3/8 | 3/4 | 0.735 | $26.11 | ||
| E181N | 1/8 | 1/8 | 1/4-28 | HF187T-12 | 2.187 | 1 | 9/16 | 3/8 | 7/8 | 0.86 | $24.70 | ||
| E186N | 1/8 | 1/8 | 1/4-28 | HF187T-12 | 1.875 | 11/16 | 9/16 | 3/8 | 7/8 | 0.86 | $24.44 | ||
| E381N-4 | 1/4 | 3/8 | 3/8-24 | HF312T-12 | 2.625 | 1 | 7/8 | 1/2 | 1 | 0.985 | $28.16 |
