- Unit of Measure - Inch
- Diverter Plugs are solid brass
- Locking Screw included
- Used with PCS diverter rods
- Used to redirect water flow
- Made in the U.S.A.

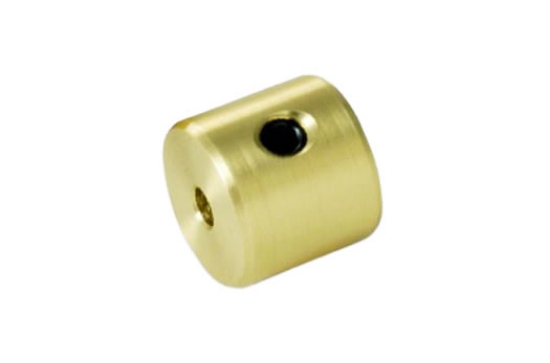

Diverter Plugs
Diverter Plugs are made of a solid brass construction. The locking screw is included with each plug. Diverter Plugs lock into position on a stainless steel diverter rod and are installed within the cooling channel.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Material Type | Diverter Length | Diverter O.D. | Diverter O.D. Tolerance | Fits Rod Diameter | For Pipe Size ( NPT ) | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| D-125 | Brass | 3/8 | 0.339 | +.000 -.005 | 3/32 | 1/8 | $3.75 | ||
| D-250 | Brass | 7/16 | 0.432 | +.000 -.005 | 1/8 | 1/4 | $4.13 | ||
| D-375 | Brass | 1/2 | 0.557 | +.000 -.005 | 1/8 | 3/8 | $4.50 | ||
| D-500 | Brass | 3/4 | 0.682 | +.000 -.005 | 3/16 | 1/2 | $4.89 | ||
| D-500-OS | Brass | 3/4 | 0.712 | +.000 -.005 | 3/16 | 1/2 | $4.57 | ||
| D-750 | Brass | 3/4 | 0.932 | +.000 -.005 | 3/16 | 3/4 | $5.31 |
