- Maximum Operating Temperature - 300°F (149°C)
- Air Pressure Range - 80-100 psi
- Pull Stud Material - Hardened Steel ( 58-62 Rc)
- Knockout Bar and Coupler Material - High Strength Steel
- Threaded Studs - B7 Alloy or Comparable
- Air Manifold Material - Aluminum
- Air Tubing Material - 1/8"OD Nylon
- Made in the U.S.A.

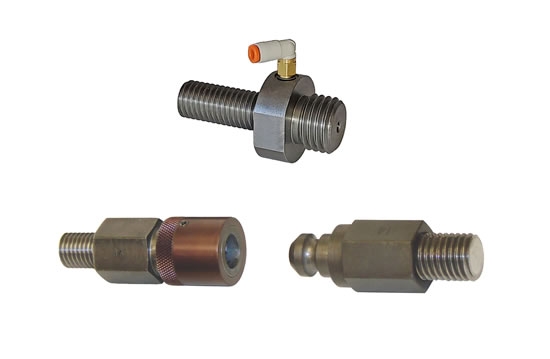

Smartflow® FasTie® 1-3/8" Components
PCS Company offers Smartflow® FasTie® 1-3/8" Components which include couplers, pull studs and center adapters. Ejection applications range from typical, alternate and center ejection. Complete the form for Finished Bar Fixed Length Knockout to be used in a typical application.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Description | Thread Length | Thread | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|
| FTCA1.4-75 | Center Adapter | 1.5" | 3/4-10 | $118.00 | ||
| FTCA1.4-M16 | Center Adapter | 1.5" | M16 x 2 | $164.00 | ||
| FTCA1.4-M20 | Center Adapter | 1.5" | M20 x 2.5 | $164.00 | ||
| FTF1.4-50 | Coupler | 1" | 1/2-13 | $496.00 | ||
| FTF1.4-63 | Coupler | 1" | 5/8-11 | $496.00 | ||
| FTF1.4-75 | Coupler | 1" | 3/4-10 | $496.00 | ||
| FTF1.4-88X | Coupler | 1" | 7/8-9 (F) | $482.00 | ||
| FTF1.4-M16 | Coupler | 1" | M16 x 2 | $514.00 | ||
| FTF1.4-M20 | Coupler | 1" | M20 x 2.5 | $514.00 | ||
| FTM1.4-50 | Pull Stud | 1.25" | 1/2-13 | $89.00 | ||
| FTM1.4-63 | Pull Stud | 1.25" | 5/8-11 | $89.00 | ||
| FTM1.4-75 | Pull Stud | 1.25" | 3/4-10 | $89.00 | ||
| FTM1.4-M16 | Pull Stud | 1.25" | M16 x 2 | $112.00 | ||
| FTM1.4-M20 | Pull Stud | 1.25" | M20 x 2.5 | $112.00 |
