- Unit of measure - Millimeters
- Available in 3mm to 16mm body diameters
- Fast change design reduces production downtime
- Fastening thread ensures secure attachment
- Max mold temperature: Ø3 - Ø4mm: 662°F (350°), Ø5 - Ø16mm: Ø5 - Ø16mm: 932°F (500°C)
- Material: 1.4034 (~420) Stainless Steel
- Hardness: 54-58 HRC
Standard Locking Detent Body - Months

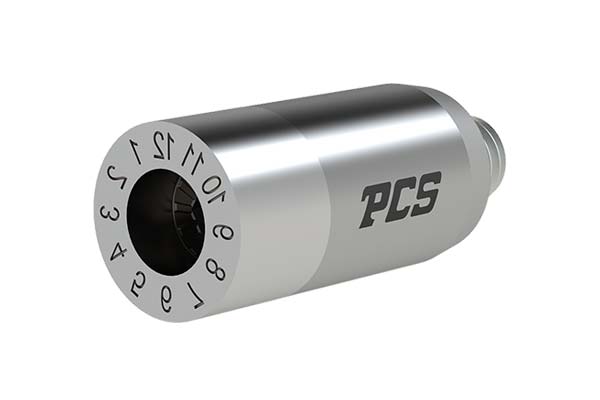

PCS Company's Locking Detent Date Stamp, 12 Month Body, designed for easy installation and removal from parting line using the included set screw. Alternatively, the body can be retained from the back using a socket head cap screw. Removal from parting line is made easy with the hexagonal socket in body ID and the h6 tolerance on OD . The locking detent feature prevents the plug from spinning and misaligning the marking during injection molding. Suitable for high-temperature applications, providing reliability and safety in demanding environments. Body Only (DNP series center insert sold separately).
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Engraved Lettering | B Body Diameter | L Body Length | C Center Insert Hole Dia. | M Thread | T | SW Hex Socket Width | Engraving Depth | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DN03 | 12 Months | 3 | 14 | 1.6 | M2x0.4 | 3 | 1.3 | 0.1 | $104.75 $78.56 | ||
| DN04 | 12 Months | 4 | 14 | 2.5 | M2x0.4 | 3 | 1.5 | 0.15 | $104.75 $78.56 | ||
| DN05 | 12 Months | 5 | 17 | 3.1 | M3x0.5 | 3 | 2 | 0.2 | $104.75 $78.56 | ||
| DN06 | 12 Months | 6 | 17 | 3.1 | M3x0.5 | 3 | 2 | 0.2 | $104.75 $78.56 | ||
| DN08 | 12 Months | 8 | 20 | 4.6 | M4x0.7 | 4 | 3 | 0.2 | $104.75 $78.56 | ||
| DN10 | 12 Months | 10 | 20 | 4.6 | M5x0.8 | 4 | 3 | 0.2 | $104.75 $78.56 | ||
| DN12 | 12 Months | 12 | 25 | 6.4 | M6x1.0 | 6 | 4 | 0.3 | $104.75 $78.56 | ||
| DN16 | 12 Months | 16 | 33 | 8.4 | M8x1.25 | 8 | 4 | 0.3 | $104.75 $78.56 |
