- Metric threads: M64 → M100
- Usable for any kind of lifting operation (straight lifts, with angle, turning, rotating)
- Optimized WLL/dimensions and weight ratio
- Safety factor 4:1 and 5:1
- Individual traceability number
- Operating temperature: -20°C to 200°C / -4°F to 392°F
- Clear markings (CE, WLL, tightening torque)
- Anti-corrosion coating (zinc coating) on bolt and base
- Built in anti-tribocorrosion grease, easy rotation under load

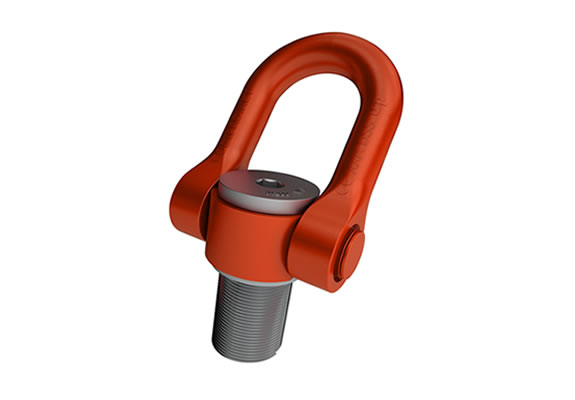

Codipro Mega DSS Double Swivel Shackle - Metric
PCS Company offers the Codipro Mega DSS, metric double swivel shackle. The Mega DSS is a double swivel ring that is specially designed for simultaneously lifting and rotating loads. Its double swivel action ensures perfect alignment with the sling. The ring swivels 180°, but has a rotating range of 360°. See instructions under Resources for further info. Register your Codipro Eyebolt at Coditracer.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Thread Size | SF 5:1 WLL (t) | Thread Length L1 (mm) | Torque (Nm) | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| MEGA.DSSM100UP | M100x6 | 48 | 150 | 1000 | $7,901.26 | ||
| MEGA.DSSM64UP | M64x6 | 26 | 100 | 600 | $6,115.64 | ||
| MEGA.DSSM72UP | M72x6 | 28 | 110 | 700 | $6,421.43 | ||
| MEGA.DSSM72x4UP | M72x4 | 28 | 110 | 700 | $6,804.34 | ||
| MEGA.DSSM80UP | M80x6 | 32 | 120 | 800 | $6,836.18 | ||
| MEGA.DSSM90UP | M90x6 | 36 | 135 | 900 | $7,293.47 |
