- Manufactured from SAE 1040 steel
- Protect mold base plates from deflection
- Helps to reduce flash
- Unit of Measure - Inch

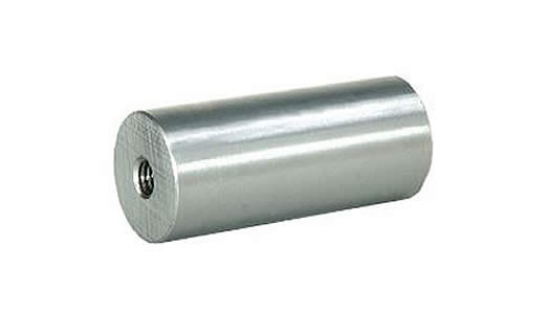

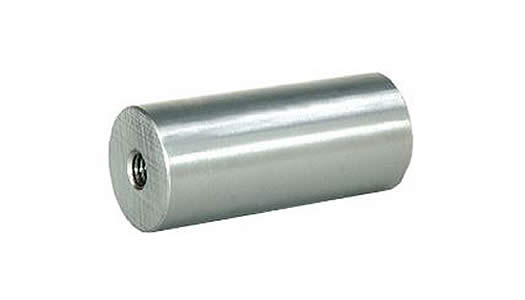

Support Pillars - Drilled & Counterbored
PCS Support Pillars are used to give added support to cavities, sprue and runner systems with the mold. A single row of support pillars can increase the permissible cavity load up to 4 times. Additional rows of support pillars can be added to further increase the permissible cavity load.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | D Diameter | E Head Depth | L Overall Length +.002 +.001 | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|
| DC-1035 | 1 | 0.562 | 3.500 | $22.92 | ||
| DC-1040 | 1 | 0.562 | 4.000 | $24.94 | ||
| DC-1225 | 1.25 | 0.562 | 2.500 | $19.74 | ||
| DC-1230 | 1.25 | 0.562 | 3.000 | $20.09 | ||
| DC-1235 | 1.25 | 0.562 | 3.500 | $21.91 | ||
| DC-1240 | 1.25 | 0.562 | 4.000 | $24.74 | ||
| DC-1250 | 1.25 | 0.562 | 5.000 | $26.51 | ||
| DC-1260 | 1.25 | 0.562 | 6.000 | $29.95 | ||
| DC-1530 | 1.5 | 0.562 | 3.000 | $23.04 | ||
| DC-1535 | 1.5 | 0.562 | 3.500 | $24.06 | ||
| DC-1540 | 1.5 | 0.562 | 4.000 | $26.29 | ||
| DC-1550 | 1.5 | 0.562 | 5.000 | $30.56 | ||
| DC-1560 | 1.5 | 0.562 | 6.000 | $35.15 | ||
| DC-2030 | 2 | 0.562 | 3.000 | $31.38 | ||
| DC-2040 | 2 | 0.562 | 4.000 | $34.40 | ||
| DC-2050 | 2 | 0.562 | 5.000 | $37.58 | ||
| DC-2060 | 2 | 0.562 | 6.000 | $42.45 | ||
| DC-3050 | 3 | 0.75 | 5.000 | $56.85 | ||
| DC-3060 | 3 | 0.75 | 6.000 | $71.02 | ||
| DC-3080 | 3 | 0.75 | 8.000 | $82.75 |
