- UNC threads: UNC 1/4’’-20 → UNC 1’’ 1/4-7
- Two possibilities of tightening and protection of bolt head
- Usable for any kind of lifting operation (straight lifts, with angle, turning, rotating)
- Individual traceability number
- Operating temperature: -20°C to 200°C / -4°F to 392°F
- Clear markings (CE, WLL, tightening torque)
- Anti-corrosion coating (zinc coating) on bolt and base
- Provides maximum corrosion resistance
- Automatic orientation in the direction of pulling
- 7 year warranty when registered thru Codipro

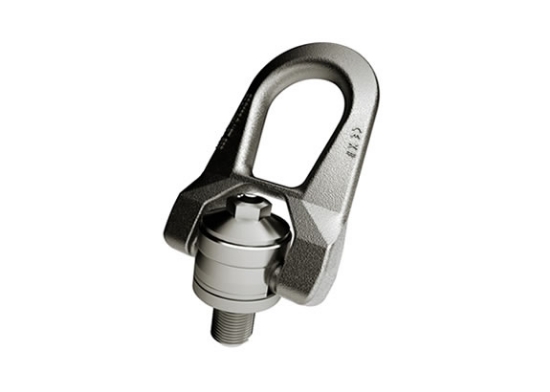

Codipro Stainless Steel Double Swivel Lifting Ring - Inch
PCS Company offers the Codipro SS.DSR, stainless steel double swivel lifting ring. It is specially designed for simultaneously lifting and rotating loads. Its double swivel action ensures perfect alignment with the sling. Consists of a stainless steel ring that provides maximum corrosion resistance. Swiveling under load, the ring swivels 180°, but has a rotating range of 360°. See instructions under Resources for further info. See instructions under Resources for further info. Register your Codipro Eyebolt at Coditracer.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | SF 5:1 WLL (lbs) | Thread Size (mm) | Thread Length L1 (mm) | Torque (ft-lb) | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| SS.DSRU025 | 600 | UNC 5/16’’- 18 | 15 | 5 | $364.28 | ||
| SS.DSRU038 | 1000 | UNC 3/8"- 16 | 17 | 8 | $393.73 | ||
| SS.DSRU050 | 1800 | UNC 1/2"- 13 | 21 | 12 | $407.13 | ||
| SS.DSRU058 | 2500 | UNC 5/8"- 11 | 27 | 40 | $506.23 | ||
| SS.DSRU075 | 3600 | UNC 3/4"- 10 | 30 | 80 | $560.86 | ||
| SS.DSRU078 | 5000 | UNC 7/8"- 9 | 33 | 90 | $844.00 | ||
| SS.DSRU100 | 6000 | UNC 1"- 8 | 36 | 125 | $876.35 | ||
| SS.DSRU516 | 400 | UNC 1/4"- 20 | 13 | 3 | $377.66 |
