Metric DIN Leader Pins

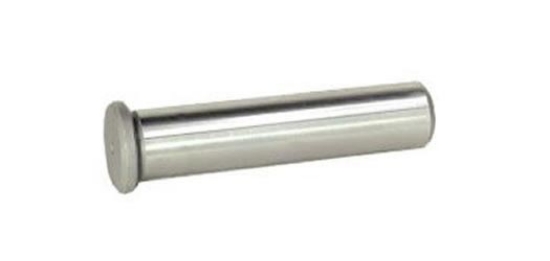

Picture of Metric DIN Leader Pins

Leader Pins provide initial alignment of cavity and core halves. PCS Metric DIN Leader Pins are manufactured from 4150 steel and case-hardened 58 - 60 HRC. These leader pins can be used with PCS standard bushings.

Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
Item NumberD Pin DiameterH Head DiameterL Overall LengthPF Press Fit DiameterPFL Press Fit LengthT Head ThicknessCAD FilesPrice (USD)Quantity
MLP-20 X 100202510020255$20.69
MLP-20 X 120202512020355$21.41
MLP-20 X 140202514020355$22.11
MLP-20 X 160202516020455$22.84
MLP-20 X 180202518020455$23.62
MLP-20 X 200202520020455$24.09
MLP-20 X 220202522020455$25.02
MLP-20 X 240202524020455$25.77
MLP-20 X 5020255020255$18.86
MLP-20 X 6020256020255$19.27
MLP-20 X 7020257020255$18.93
MLP-20 X 8020258020255$20.02
MLP-20 X 9020259020255$20.39
MLP-25 X 100253110025256$23.39
MLP-25 X 120253112025356$24.52
MLP-25 X 140253114025356$25.75
MLP-25 X 160253116025356$26.79
MLP-25 X 180253118025456$27.93
MLP-25 X 200253120025456$29.13
MLP-25 X 220253122025456$30.27
MLP-25 X 240253124025456$31.40
MLP-25 X 260253126025456$32.52
MLP-25 X 280253128025456$33.67
MLP-25 X 300253130025456$34.43
MLP-25 X 5025315025256$19.18
MLP-25 X 6025316025256$19.82
MLP-25 X 7025317025256$19.87
MLP-25 X 8025318025256$22.22
MLP-25 X 9025319025256$22.80
MLP-30 X 100303610030258$26.69
MLP-30 X 120303612030358$29.13
MLP-30 X 140303614030358$30.74
MLP-30 X 160303616030358$32.37
MLP-30 X 180303618030458$33.96
MLP-30 X 200303620030458$35.67
MLP-30 X 220303622030458$37.30
MLP-30 X 240303624030458$38.88
MLP-30 X 260303626030458$40.56
MLP-30 X 280303628030458$42.15
MLP-30 X 300303630030458$43.85
MLP-30 X 7030367030258$25.06
MLP-30 X 8030368030258$24.84
MLP-30 X 9030369030258$25.67
MLP-40 X 100404610040358$28.68
MLP-40 X 120404612040358$36.16
MLP-40 X 140404614040358$38.29
MLP-40 X 160404616040358$40.80
MLP-40 X 180404618040458$43.37
MLP-40 X 200404620040458$45.88
MLP-40 X 220404622040458$48.45
MLP-40 X 240404624040458$50.94
MLP-40 X 260404626040458$53.51
MLP-40 X 280404628040458$56.04
MLP-40 X 300404630040458$58.62
MLP-40 X 9040469040358$30.65
MLP-50 X 150505615050458$52.67
MLP-50 X 175505617550458$61.49
MLP-50 X 200505620050458$70.31
MLP-50 X 225505622550458$76.00
MLP-50 X 250505625050458$84.40
MLP-50 X 275505627550458$96.52
MLP-50 X 300505630050458$105.45
MLP-50 X 325505632550458$114.25
MLP-50 X 350505635050458$123.16
MLP-50 X 375505637550458$130.48
MLP-50 X 400505640050458$135.18
MLP-60 X 150606615060608$65.26
MLP-60 X 175606617560608$73.85
MLP-60 X 200606620060608$84.38
MLP-60 X 225606622560608$97.85
MLP-60 X 250606625060608$108.95
MLP-60 X 275606627560608$120.71
MLP-60 X 300606630060608$130.41
MLP-60 X 325606632560608$137.27
MLP-60 X 350606635060608$152.00
MLP-60 X 375606637560608$163.13
MLP-60 X 400606640060608$168.87
