- Ideal for core pulls, verifiying mold component position to help prevent damage to valuable tooling
- Fits behind core in an injection mold
- One million cycle mechanical life
- Adjustable operating point
- Electrical capacity at 240VAC, 5 Amps Resistive, 3 Amps Inductive
- SPDT switch action
- 6ft (1.8M) wire leads stripped and tinned
- Stainless Steel Plunger
- Anodized Aluminum/Epoxy Body
- Optional bracket for ease of installation and height adjustment
- Made in the U.S.A.

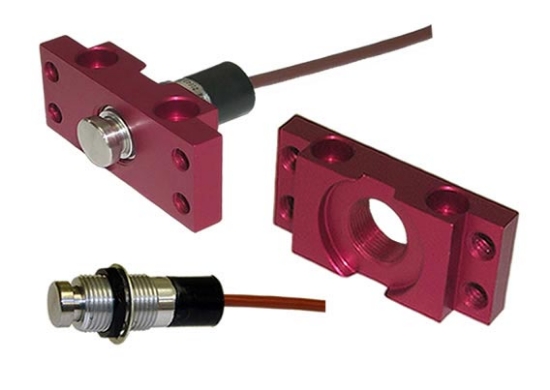

Smartflow® Versaswitch™ Limit Switch
PCS Company offers Smartflow Versaswitch Limit Switch which installs into an injection mold to indicate location of the core, preventing tool damage. Versaswitch is easily installed into a 5/8"-24 female thread. The switch actuates when 3.5 lbs of force is applied to the plunger. Actuation height is adjusted by threading the switch to the correct position in the installation. The switch is held in place via a lock-washer and hex nut. SPDT snap action switch provides a simple, positive indication of the mold or core location.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Length | Electrical | Operating Temperature | Operating Force | Material | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|
| V-222 | 1.37" | 240VAC | 180°F max (82°C max.) | 3.5 lbs (1.6 kg) | N/A | $121.00 | ||
| VB-222-A | 2.25" | N/A | 180°F max (82°C max.) | 3.5 lbs (1.6 kg) | Red Anodized Aluminum | $41.00 |
