- Temperature: -40°F to 212°F or -40°C to 100°C (Normal Service)
- Temperature: +160°F or -40°C to +71°C (Air Only)
- Max. Working Pressure: 300 psi.
- Min. Burst Pressure - 1200 psi
- Tube: Type C Nytrile (Black)
- Reinforcement: Braided,synthetic textile
- Cover: Type C2 (Modified Nitrile)
- Use with Push-Lok / Lock-On or standard barbed style fittings
- Sold in reels or by the foot
- Made in the U.S.A.
Hose

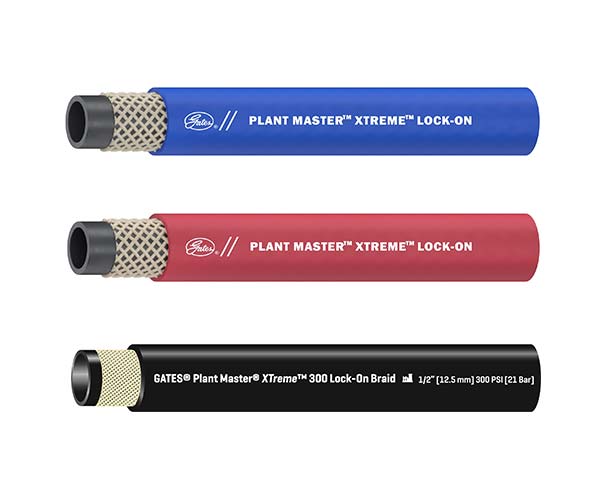

PCS Company offers Gates® Plant Master ™ Xtreme™ 300 Lock-On Braid Hose in red, blue and black. The Xtreme 300 hose is used primarily with Lock-On or Push-Lok fittings for quick and secure connections. Working environments include petroleum-based hydraulic oils, water, glycol anti-freeze solution, hot lubricating oils and air. Hose I.D. is offered in 1/4", 3/8", 5/16" and 1/2" in red, blue and black. Under normal service requirements the working temperatures range from -40°F to 212°F or -40°C to 100°C with maximum working pressure of 300 psi. If you require your hose cut to length, please complete and submit the hose length request form.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Color | I.D. (Inch) | I.D. (mm) | Hose O.D. (Inch) | Hose O.D. (mm) | Max. W.P. (psi) | Max. W.P. (Bar) | Wt. Per Ft. ( lbs) | Reel Length (ft) | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BSG250-300 | Blue | 1/4" | 6.4 | 0.47" | 11.9 | 300 | 20.7 | 0.09 | 300 | $818.00 | ||
| BSG380-300 | Blue | 3/8" | 9.5 | 0.63" | 16 | 300 | 20.7 | 0.11 | 300 | $859.55 | ||
| BSG500-300 | Blue | 1/2" | 12.7 | 0.77" | 19.6 | 300 | 20.7 | 0.15 | 300 | $981.41 | ||
| BSG750-225 | Blue | 3/4" | 19.1 | 1.06" | 26.9 | 300 | 20.7 | 0.24 | 225 | $1,550.00 | ||
| RSG250-300 | Red | 1/4" | 6.4 | 0.47" | 11.9 | 300 | 20.7 | 0.09 | 300 | $818.00 | ||
| RSG380-300 | Red | 3/8" | 9.5 | 0.63" | 16 | 300 | 20.7 | 0.11 | 300 | $930.00 | ||
| RSG500-300 | Red | 1/2" | 12.7 | 0.77" | 19.6 | 300 | 20.7 | 0.15 | 300 | $972.51 | ||
| RSG750-225 | Red | 3/4" | 19.1 | 1.06" | 26.9 | 300 | 20.7 | 0.24 | 225 | $1,633.05 | ||
| SG380-300 | Black | 3/8" | 9.5 | 0.63" | 16 | 300 | 20.7 | 0.11 | 300 | $831.36 | ||
| SG500-300 | Black | 1/2" | 12.7 | 0.77" | 19.6 | 300 | 20.7 | 0.15 | 300 | $976.43 | ||
| SG750-225 | Black | 3/4" | 19.1 | 1.06" | 26.9 | 300 | 20.7 | 0.24 | 225 | $1,429.00 |
