- Available in sizes 5/16 to 1-1/4 Inch & M8 to M30 Metric
- Clear identification of working load limit (WLL)
- Wear marks in the main load directions 45, 30, and 0
- Not suitable for permanent swiveling under full load, especially in 90 direction
- Safety factor of 4:1 in all directions
- Body and bolt 100% electromagnetic crack tested in accordance with specification EN 1677
- Distinct Florescent pink powder-coating changes its color when temperatures exceed 437F (200C)
- Includes RFID Tag

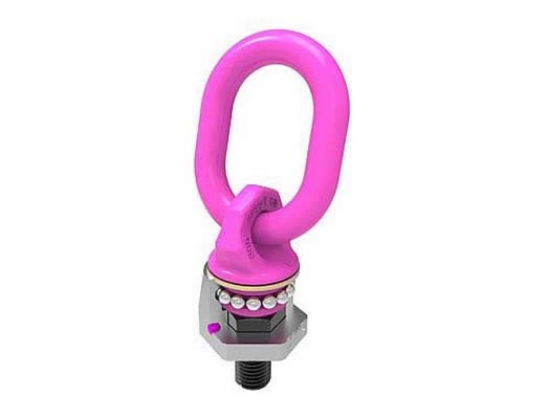

VWBG Load Ring
The RUD VWBG Load Ring is suitable for all loads which swivel and tilt, so it can be loaded in all directions with a 4:1 safety factor.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Thread Size | WLL ( lb ) | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|
| VWBG-1147-X11000 | 1 1/4 -7 UNC | 11000 | $889.13 | ||
| VWBG-1213-X1320 | 1/2 - 13 UNC | 1320 | $297.83 | ||
| VWBG-18-X7700 | 1 - 8 UNC | 7700 | $678.26 | ||
| VWBG-3410-X4400 | 3/4 - 10 UNC | 4400 | $488.04 | ||
| VWBG-3816-X990 | 3/8 - 16 UNC | 990 | $271.74 | ||
| VWBG-51618-X660 | 5/16 - 18 UNC | 660 | $263.04 | ||
| VWBG-5811-X2860 | 5/8 - 11 UNC | 2860 | $321.74 | ||
| VWBG-M10 | M10 | 990 | $211.96 | ||
| VWBG-M12 | M12 | 1320 | $216.30 | ||
| VWBG-M14 | M14 | 2200 | $480.43 | ||
| VWBG-M16 | M16 | 2860 | $231.52 | ||
| VWBG-M18 | M18 | 3960 | $625.00 | ||
| VWBG-M20 | M20 | 4400 | $373.91 | ||
| VWBG-M22 | M22 | 4400 | $575.00 | ||
| VWBG-M24 | M24 | 7700 | $519.57 | ||
| VWBG-M27 | M27 | 7700 | $769.57 | ||
| VWBG-M30 | M30 | 11000 | $692.39 | ||
| VWBG-M8 | M8 | 660 | $197.83 |
