- Unit of Measure - Inch
- Surface hardness 65-74 Rc
- Core hardness 35-40 Rc
- Ground, Nitrided
Standard Angle Pins

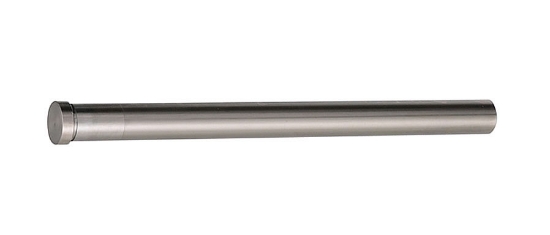

PCS Angle Pins are manufactured from precision ground hotwork steel. These pins are commonly used for slides and are press-fit into place. The surface hardness of each pin is nitrided to 65 - 74 Rc with a core hardness of 35 - 40 Rc.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Nominal Pin Diameter | Actual Pin Diameter | PF Pressfit Diameter | PFL Pressfit Length | H Head Diameter | L Overall Length | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| A25-L10 | 3/8 | 0.374 | 0.376 | 1.375 | 0.5 | 10 | $15.57 | ||
| A25-L6 | 3/8 | 0.374 | 0.376 | 0.875 | 0.5 | 6 | $14.07 | ||
| A33-L10 | 1/2 | 0.499 | 0.501 | 1.375 | 0.625 | 10 | $16.94 | ||
| A33-L6 | 1/2 | 0.499 | 0.501 | 0.875 | 0.625 | 6 | $14.21 | ||
| A37-L10 | 5/8 | 0.624 | 0.626 | 1.375 | 0.75 | 10 | $18.25 | ||
| A37-L6 | 5/8 | 0.624 | 0.626 | 0.875 | 0.75 | 6 | $15.40 | ||
| A41-L10 | 3/4 | 0.749 | 0.751 | 1.375 | 0.875 | 10 | $22.79 |
