- Operating Temperature: 0°C to 120°C (32°F to 248°F)
- Operating Pressure: 10.3 bar max. (150 psi max.)
- No moving parts for reliable operation
- Flow and Temperature Sensors in one unit for compact installation
- Quick temperature response from direct media contact
- Economical and versatile construction with corrosion-resistant materials
- Installs easily onto Smartflow Aluminum Manifolds to interface with Smartlink™ for total injection mold cooling water process control
- 3/8" & 1/2" Body Size - Glass-Filled Nylon Flow Body with Brass or Nylon End Caps
- 3/4" thru 1-1/2" Body Size - Anodized Aluminum or Stainless Steel Flow Body
- Made in the U.S.A.

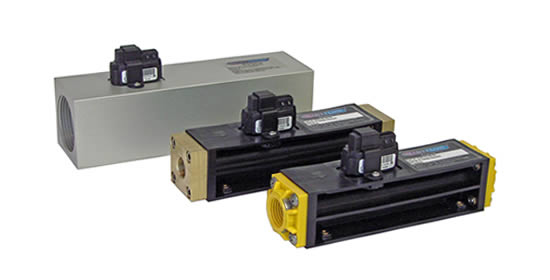

Smartflow® Tracer®VM Base Flowmeter
PCS Company offers Smartflow® Tracer®VM Base Flowmeters which is a non-display sensor. The sensor provides a 0.5 to 3.5 volt output for process flow rate and 0.5 to 4.1 volt output for process temperature. No moving parts makes the vortex sensor highly accurate and repeatable. The flow reading is directional which is indicated by an arrow on the base flowmeter. The connection to the process is with standard NPT pipe threads ranging from 3/8" to 1-1/2". The flow body materials are brass, nylon, anodized aluminum and stainless steel making corrosion resistant. Utilize the Smartflow® Scientific Cooling Calculator.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Body Material | Body Size ( NPT ) | Range (GPM) | Range (LPM) | Interface | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|
| VM12-AL-200H-B | Aluminum | 1-1/2 " | 2.6 to 52.8 | 10 to 200 | Base | $513.00 | ||
| VM12-SS-200H-B | Stainless Steel | 1-1/2 " | 2.6 to 52.8 | 10 to 200 | Base | $755.00 | ||
| VM3-B-18H-B | Brass and Nylon | 3/8 " | .3 to 4 | 1 to 18 | Base | $258.00 | ||
| VM3-B-40H-B | Brass and Nylon | 3/8 " | .5 to 10.6 | 2 to 40 | Base | $258.00 | ||
| VM3-N-18H-B | Nylon | 3/8 " | .3 to 4 | 1 to 18 | Base | $236.00 | ||
| VM3-N-40H-B | Nylon | 3/8 " | .5 to 10.6 | 2 to 40 | Base | $236.00 | ||
| VM4-B-18H-B | Brass and Nylon | 1/2 " | .3 to 4 | 1 to 18 | Base | $258.00 | ||
| VM4-B-40H-B | Brass and Nylon | 1/2 " | .5 to 10.6 | 2 to 40 | Base | $258.00 | ||
| VM4-N-18H-B | Nylon | 1/2 " | .3 to 4 | 1 to 18 | Base | $236.00 | ||
| VM4-N-40H-B | Nylon | 1/2 " | .5 to 10.6 | 2 to 40 | Base | $236.00 | ||
| VM6-AL-100H-B | Aluminum | 3/4 " | 1.3 to 26.4 | 5 to 100 | Base | $410.00 | ||
| VM6-SS-100H-B | Stainless Steel | 3/4 " | 1.3 to 26.4 | 5 to 100 | Base | $605.00 | ||
| VM8-AL-100H-B | Aluminum | 1 " | 1.3 to 26.4 | 5 to 100 | Base | $410.00 | ||
| VM8-AL-200H-B | Aluminum | 1 " | 2.6 to 52.8 | 10 to 200 | Base | $444.00 | ||
| VM8-SS-100H-B | Stainless Steel | 1 " | 1.3 to 26.4 | 5 to 100 | Base | $605.00 | ||
| VM8-SS-200H-B | Stainless Steel | 1 " | 2.6 to 52.8 | 10 to 200 | Base | $651.00 |
