- 2 Flute Solid Carbide
- Extra long shanks for hard to reach machining
- Premium micro grain carbide
- H6 Shank tolerance for heat shrink applications
- Cutting diameter tolerance +.0000 - .0015
- Shorter flute length for maximum strength
- 30° helix general purpose ball nose
- Made in the U.S.A.

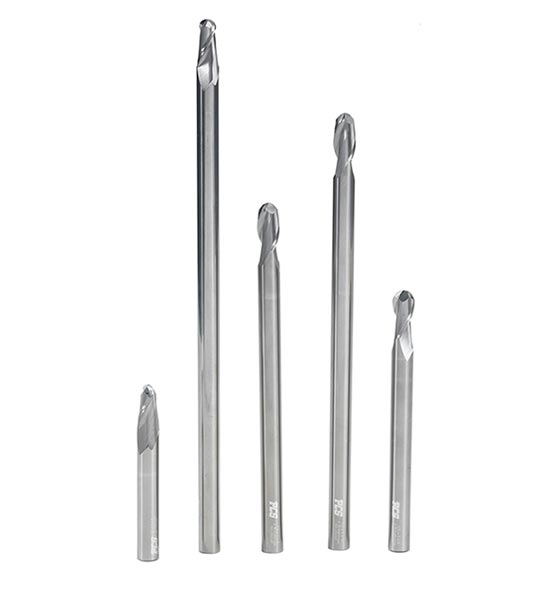

Ball Nose End Mill (for Machining Aluminum)
Great for cutting Aluminum, this extended reach tool adds extra length to normal diameters for deeper cuts.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Flute Diameter | Flute Length | Overall Length | Shank Diameter | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| 50-2125P | 1/8 | 1/2 | 4 | 0.125 | $24.37 | ||
| 50-2126P | 1/8 | 1/2 | 6 | 0.125 | $31.41 | ||
| 50-2187P | 3/16 | 5/8 | 4 | 0.1875 | $30.75 | ||
| 50-2188P | 3/16 | 5/8 | 6 | 0.1875 | $39.56 | ||
| 50-2250P | 1/4 | 3/4 | 4 | 0.25 | $40.60 | ||
| 50-2251P | 1/4 | 3/4 | 6 | 0.25 | $51.73 | ||
| 50-2312P | 5/16 | 7/8 | 4 | 0.3125 | $59.12 | ||
| 50-2313P | 5/16 | 7/8 | 6 | 0.3125 | $72.22 | ||
| 50-2375P | 3/8 | 7/8 | 4 | 0.375 | $73.13 | ||
| 50-2376P | 3/8 | 7/8 | 6 | 0.375 | $87.98 | ||
| 50-2377P | 3/8 | 7/8 | 8 | 0.375 | $133.65 | ||
| 50-2500P | 1/2 | 1 | 4 | 0.5 | $106.73 | ||
| 50-2501P | 1/2 | 1 | 6 | 0.5 | $136.99 | ||
| 50-2502P | 1/2 | 1 | 8 | 0.5 | $186.10 | ||
| 50-2503P | 1/2 | 1 | 10 | 0.5 | $284.42 | ||
| 50-2504P | 1/2 | 1 | 12 | 0.5 | $338.75 | ||
| 50-2626P | 5/8 | 1 1/4 | 6 | 0.625 | $207.00 | ||
| 50-2751P | 3/4 | 1 1/2 | 6 | 0.75 | $298.09 |
