- Metric threads: M12 → M24
- Usable for any kind of lifting operation (straight lifts, with angle, turning, rotating)
- Safety factor 4:1 and 5:1
- Individual traceability number
- Operating temperature: -20°C to 200°C / -4°F to 392°F
- Clear markings (CE, WLL, tightening torque)
- Provides maximum corrosion resistance
- Built in anti-tribocorrosion grease, easy rotation under load
- Automatic orientation in the direction of pulling
- 7 year warranty when registered thru Codipro

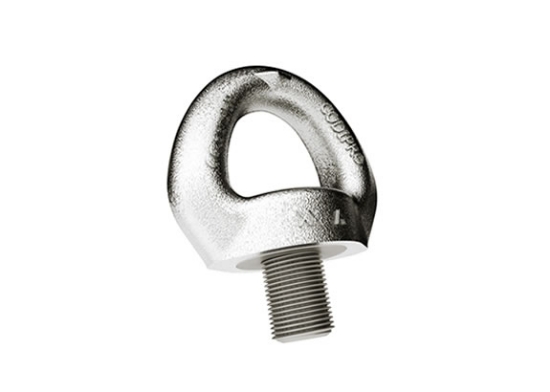

Codipro Stainless Steel SEB Swivel Eye Bolts - Metric
PCS Company offers the Codipro metric SS.SEB stainless steel single swivel lifting ring. Equipped with "the Pyramid of Steel" that always guides it perfectly in the direction of the sling. It is specially designed for lifting, including rotating under load. Register your Codipro Eyebolt at Coditracer.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | SF 5:1 WLL (t) | Thread Size (mm) | Thread Length L1 (mm) | Torque (Nm) | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| SS.SEBM12 | 0.55 | M12x1.75 | 21 | 15 | $334.36 | ||
| SS.SEBM16 | 1.2 | M16x2 | 27 | 50 | $339.75 | ||
| SS.SEBM20 | 1.5 | M20x2.5 | 30 | 100 | $342.45 | ||
| SS.SEBM24 | 2.5 | M24x3 | 36 | 100 | $347.84 |
