C-Sert™ Permanent Thread Repair - Standard

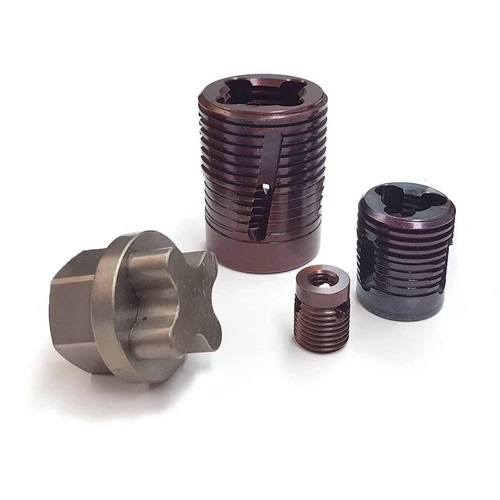

Picture of C-Sert™ Permanent Thread Repair - Standard

PCS Company offers C-Sert™ Thread Repair - Standard inserts to be used for permanent thread repair for platens or equipment. The C-Sert can be considered a precision tap that are self aligning and self tapping. The patented design of the C-Sert allows for faster installation and chip removal due to the design of the cutting surfaces. Kit options are available with or without the corresponding drill bit to make the low torque installation fast and easy using either a medium duty impact driver or hand tool. Select from either inch threads ranging from 1/4" - 20 to 1 3/4" - 5 or metric threads ranging from M6 x 1.0 to M42 x 3.0. C-Serts are suitable for most repairs of OEM threaded holes and they are thick enough to replace failed Heli-Coils, Keenserts, E-Z Lok, Hole Savers and other brands of thread repair.

Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
Item NumberThreadThread SizePackage Qty.Drill Bit OptionCAD FilesPrice (USD)Quantity
C1000Inch1" - 84 PiecesNo$1,176.00
C1000-FInch1" - 144 PiecesNo$1,176.00
C1125Inch1 1/8" - 73 PiecesNo$1,260.00
C1250Inch1 1/4" - 73 PiecesNo$1,260.00
C1500Inch1 1/2" - 62 PiecesNo$1,440.00
C1750Inch1 3/4" - 52 PiecesNo$1,686.00
C625Inch5/8" - 116 PiecesNo$660.00
C625-FInch5/8" - 186 PiecesNo$660.00
C750Inch3/4" - 106 PiecesNo$826.00
C750-FInch3/4" - 166 PiecesNo$826.00
C875Inch7/8" - 94 PiecesNo$898.00
CDS250Inch1/4" - 206 PiecesNo$182.00
CDS250-FInch1/4" - 286 PiecesNo$182.00
CDS312Inch5/16" - 186 PiecesNo$244.00
CDS312-FInch5/16" - 246 PiecesNo$244.00
CDS375Inch3/8" - 166 PiecesNo$346.00
CDS375-FInch3/8" - 246 PiecesNo$346.00
CDS500Inch1/2" - 136 PiecesNo$456.00
CDS500-FInch1/2" - 206 PiecesNo$456.00
CDSM10MetricM19 x 1.506 PiecesNo$346.00
CDSM10-FMetricM10 x 1.256 PiecesNo$346.00
CDSM12MetricM12 x 1.756 PiecesNo$456.00
CDSM6MetricM6 x 1.06 PiecesNo$182.00
CDSM8MetricM8 x 1.256 PiecesNo$244.00
K-C1000Inch1" - 84 PiecesYes$1,222.00
K-C1000-FInch1" - 144 PiecesYes$1,222.00
K-C625Inch5/8" - 116 PiecesYes$718.00
K-C625-FInch5/8" - 186 PiecesYes$718.00
K-C750Inch3/4" - 106 PiecesYes$860.00
K-C750-FInch3/4" - 166 PiecesYes$860.00
K-C875Inch7/8" - 94 PiecesYes$974.00
K-CDS250Inch1/4" - 206 PiecesYes$202.00
K-CDS250-FInch1/4" - 286 PiecesYes$202.00
K-CDS312Inch5/16" - 186 PiecesYes$268.00
K-CDS312-FInch5/16" - 246 PiecesYes$268.00
K-CDS375Inch3/8" - 166 PiecesYes$382.00
K-CDS375-FInch3/8" - 246 PiecesYes$382.00
K-CDS500Inch1/2" - 136 PiecesYes$504.00
K-CDS500-FInch1/2" - 206 PiecesYes$490.00
K-CDSM10MetricM10 x 1.506 PiecesYes$382.00
K-CDSM10-FMetricM10 x 1.256 PiecesYes$382.00
K-CDSM12MetricM12 x 1.756 PiecesYes$504.00
K-CDSM6MetricM6 x 1.06 PiecesYes$202.00
K-CDSM8MetricM8 x 1.256 PiecesYes$268.00
K-M14MetricM14 x 2.06 PiecesYes$718.00
K-M16MetricM16 x 2.06 PiecesYes$718.00
K-M18MetricM18 x 2.56 PiecesYes$852.00
K-M20MetricM20 x 2.54 PiecesYes$984.00
K-M24MetricM24 x 3.04 PiecesYes$1,214.00
M14MetricM14 x 2.06 PiecesNo$660.00
M16MetricM16 x 2.06 PiecesNo$660.00
M18MetricM18 x 2.56 PiecesNo$826.00
M20MetricM20 x 2.54 PiecesNo$989.00
M27MetricM27 x 3.03 PiecesNo$1,260.00
M30MetricM30 x 3.53 PiecesNo$1,260.00
M36MetricM36 x 4.02 PiecesNo$1,440.00
M42-FMetricM42 x 3.02 PiecesNo$1,686.00
