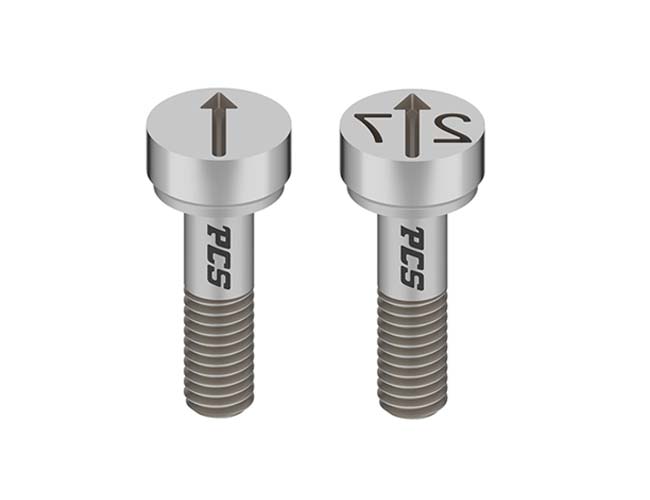

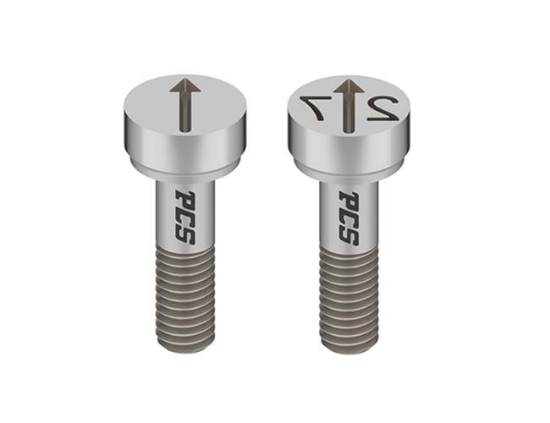

DS Series Locking Center Inserts

PCS Company's DS Series Center Inserts provides a locking ceneter insert that pairs with DS Series Locking Date Stamp bodies. The DS Series uses an easy to adjust axial locking system that locks the center insert into place. DS Series inserts allow fast adjustment and installation from the parting line with a standard screwdriver. Suitable for high-temperature applications, providing reliability and safety in demanding environments. Please note, DS Series and Standard Date Stamps do not have compatible or shared components.

Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
Item NumberYearEngraved LetteringØC Insert DiameterJ Overall LengthK Head ThicknessP ThreadA Arrow DepthCAD FilesPrice (USD)Quantity
DPL 10717N/AArrow Only1115.84.5M4x0.350.6$48.97
DPL 10717-2727Year & Arrow1115.84.5M4x0.350.6$65.29
DPL 2275N/AArrow Only2.54.91.2M1.4x0.20.3$45.95
DPL 2275-2727Year & Arrow2.54.91.2M1.4x0.20.3$45.95
DPL 3075N/AArrow Only3.17.82M1.6x0.20.4$45.95
DPL 3075-2727Year & Arrow3.17.82M1.6x0.20.4$45.95
DPL 3217N/AArrow Only3.17.82M1.6x0.20.4$45.95
DPL 3217-2727Year & Arrow3.17.82M1.6x0.20.4$45.95
DPL 4717N/AArrow Only4.49.82.5M2.3x0.250.4$45.95
DPL 4717-2727Year & Arrow4.49.82.5M2.3x0.250.4$45.95
DPL 5717N/AArrow Only5.211.83M2.5x0.350.4$45.95
DPL 5717-2727Year & Arrow5.211.83M2.5x0.350.4$45.95
DPL 6717N/AArrow Only6.213.83M3x0.350.6$48.97
DPL 6717-2727Year & Arrow6.213.83M3x0.350.6$48.97
DPL 8717N/AArrow Only8.213.83.5M4x0.350.6$48.97
DPL 8717-2727Year & Arrow8.213.83.5M4x0.350.6$48.97
