- Unit of measure - Millimeters
- Available for body diameters 3mm to 20mm
- Compact height for applications with limited space
- Fast change insert reduces production downtime
- Sits flush in body
- Max mold temperature: DTNP04 and smaller: 662°F (350°C), DTNP05 and larger: 932°F (500°C)
- Material: 1.4034 Stainless Steel (~420)
- Hardness: 54-58 HRC
- Compatible with PCS Compact Locking Detent DTN series body
Compact Locking Detent Center Insert

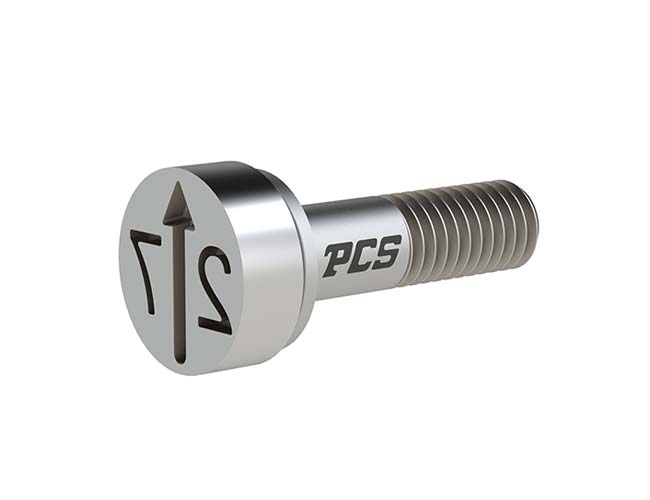

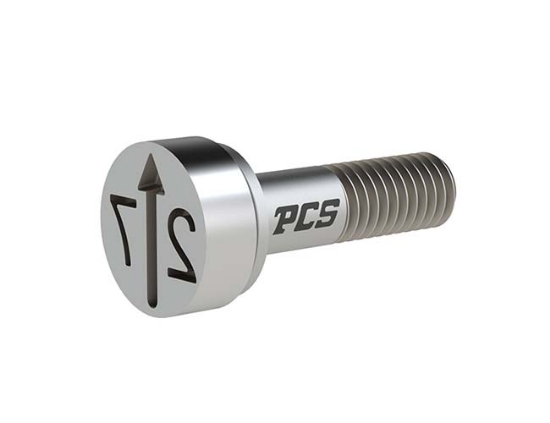

PCS Company's Compact Locking Detent Date Stamp Center Insert with Year and Arrow allows easy installation and adjustments of the insert from the parting line with a standard screwdriver. The locking detent feature ensures the plug remains secure, preventing movement or rotation during molding. Suitable for high-temperature applications, providing reliability and safety in demanding environments. Insert Only (DTN series body sold separately).
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Year | Engraved Lettering | K Head Thickness | C Insert Diameter | J Overall Length | P Thread | A Arrow Depth | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| DTNP03-26 | 26 | Year and Arrow | 1 | 1.6 | 3.9 | M1x0.25 | 0.2 | $42.08 $31.56 | ||
| DTNP03-27 | 27 | Year and Arrow | 1 | 1.6 | 3.9 | M1x0.25 | 0.2 | $43.34 $32.50 | ||
| DTNP04-26 | 26 | Year and Arrow | 1.2 | 2.5 | 4.9 | M1.4x0.2 | 0.3 | $42.08 $31.56 | ||
| DTNP04-27 | 27 | Year and Arrow | 1.2 | 2.5 | 4.9 | M1.4x0.2 | 0.3 | $43.34 $32.50 | ||
| DTNP05-26 | 26 | Year and Arrow | 2 | 3.1 | 7.8 | M1.6x0.2 | 0.4 | $42.08 $31.56 | ||
| DTNP05-27 | 27 | Year and Arrow | 2 | 3.1 | 7.8 | M1.6x0.2 | 0.4 | $43.34 $32.50 | ||
| DTNP06-25 | 25 | Year and Arrow | 2 | 3.1 | 7.8 | M1.6x0.2 | 0.4 | $42.08 $31.56 | ||
| DTNP06-26 | 26 | Year and Arrow | 2 | 3.1 | 7.8 | M1.6x0.2 | 0.4 | $42.08 $31.56 | ||
| DTNP06-27 | 27 | Year and Arrow | 2 | 3.1 | 7.8 | M1.6x0.2 | 0.4 | $43.34 $32.50 | ||
| DTNP08-26 | 26 | Year and Arrow | 2.5 | 4.4 | 9.8 | M2.3x0.25 | 0.4 | $42.08 $31.56 | ||
| DTNP08-27 | 27 | Year and Arrow | 2.5 | 4.4 | 9.8 | M2.3x0.25 | 0.4 | $43.34 $32.50 | ||
| DTNP10-26 | 26 | Year and Arrow | 3 | 5.2 | 11.8 | M2.5x0.35 | 0.4 | $42.08 $31.56 | ||
| DTNP10-27 | 27 | Year and Arrow | 3 | 5.2 | 11.8 | M2.5x0.35 | 0.4 | $43.34 $32.50 | ||
| DTNP12-26 | 26 | Year and Arrow | 3 | 6.2 | 13.8 | M3x0.35 | 0.6 | $42.08 $31.56 | ||
| DTNP12-27 | 27 | Year and Arrow | 3 | 6.2 | 13.8 | M3x0.35 | 0.6 | $43.34 $32.50 | ||
| DTNP16-26 | 26 | Year and Arrow | 3.5 | 8.2 | 13.8 | M4x0.35 | 0.6 | $42.08 $31.56 | ||
| DTNP16-27 | 27 | Year and Arrow | 3.5 | 8.2 | 13.8 | M4x0.35 | 0.6 | $43.34 $32.50 | ||
| DTNP20-26 | 26 | Year and Arrow | 4.5 | 11 | 15.8 | M4x0.35 | 0.6 | $42.08 $31.56 | ||
| DTNP20-27 | 27 | Year and Arrow | 4.5 | 11 | 15.8 | M4x0.35 | 0.6 | $43.34 $32.50 |
