- Unit of Measure: Millimeter (mm)
- Concentricity: 0.003 or less
- Material: SKD11 or equivalent
- Hardness: 58-62 HRC

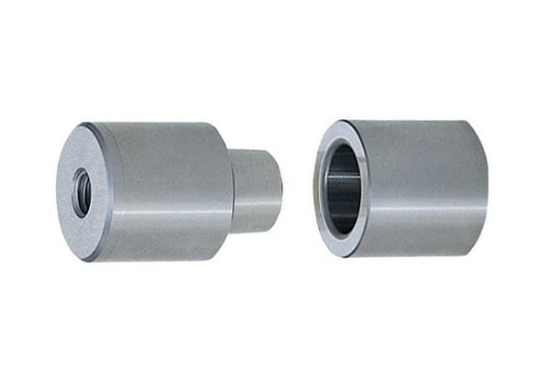

Metric JIS Tapered Round Locks - Standard Installation - Extra Precision
PCS Company offers Misumi Metric JIS Extra Precision Round Taper Locks in full sets, pin only or bushing only. Lock diameters range from 8mm to 25mm. Select from taper angles of 0.5, 1, 3 or 5 degrees. The extra precision round taper locks are made of SKD11 with a hardness of 58-62 HRC. Purchase the full set to include the pin (male) and bushing (female) or the pin and bushing individually.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Type | D OD | D Tolerance | A Angle | L Shoulder Length | V Pin Major Diameter | E Pin Projection | F | M Thread | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ZTPN10-0.5 | Full Set | 10 | +0.005/-0 | 0.5° | 14 | 7 | 6 | 5 | M4 | $158.89 | ||
| ZTPN10-1 | Full Set | 10 | +0.005/-0 | 1° | 14 | 7 | 6 | 5 | M4 | $158.75 | ||
| ZTPN10-3 | Full Set | 10 | +0.005/-0 | 3° | 14 | 7 | 6 | 5 | M4 | $158.75 | ||
| ZTPN10-5 | Full Set | 10 | +0.005/-0 | 5° | 14 | 7 | 6 | 5 | M4 | $158.75 | ||
| ZTPN13-0.5 | Full Set | 13 | +0.005/-0 | 0.5° | 14 | 7 | 6 | 5 | M4 | $158.89 | ||
| ZTPN13-1 | Full Set | 13 | +0.005/-0 | 1° | 14 | 7 | 6 | 5 | M4 | $158.75 | ||
| ZTPN13-3 | Full Set | 13 | +0.005/-0 | 3° | 14 | 7 | 6 | 5 | M4 | $158.75 | ||
| ZTPN13-5 | Full Set | 13 | +0.005/-0 | 5° | 14 | 7 | 6 | 5 | M4 | $158.75 | ||
| ZTPN16-0.5 | Full Set | 16 | +0.005/-0 | 0.5° | 14 | 10 | 6 | 5 | M5 | $164.21 | ||
| ZTPN16-1 | Full Set | 16 | +0.005/-0 | 1° | 14 | 10 | 6 | 5 | M5 | $164.07 | ||
| ZTPN16-3 | Full Set | 16 | +0.005/-0 | 3° | 14 | 10 | 6 | 5 | M5 | $164.07 | ||
| ZTPN16-5 | Full Set | 16 | +0.005/-0 | 5° | 14 | 10 | 6 | 5 | M5 | $164.07 | ||
| ZTPN20-0.5 | Full Set | 20 | +0.005/-0 | 0.5° | 19 | 13 | 9 | 8 | M6 | $178.30 | ||
| ZTPN20-1 | Full Set | 20 | +0.005/-0 | 1° | 19 | 13 | 9 | 8 | M6 | $178.14 | ||
| ZTPN20-3 | Full Set | 20 | +0.005/-0 | 3° | 19 | 13 | 9 | 8 | M6 | $178.14 | ||
| ZTPN20-5 | Full Set | 20 | +0.005/-0 | 5° | 19 | 13 | 9 | 8 | M6 | $178.14 | ||
| ZTPN25-0.5 | Full Set | 25 | +0.005/-0 | 0.5° | 24 | 16 | 12 | 11 | M8 | $188.89 | ||
| ZTPN25-1 | Full Set | 25 | +0.005/-0 | 1° | 24 | 16 | 12 | 11 | M8 | $188.72 | ||
| ZTPN25-3 | Full Set | 25 | +0.005/-0 | 3° | 24 | 16 | 12 | 11 | M8 | $188.72 | ||
| ZTPN25-5 | Full Set | 25 | +0.005/-0 | 5° | 24 | 16 | 12 | 11 | M8 | $188.72 | ||
| ZTPN8-1 | Full Set | 8 | +0.005/-0 | 1° | 13 | 5 | 6 | 5 | M3 | $151.69 | ||
| ZTPNB10-1 | Bushing (Female) Only | 10 | +0.005/-0 | 1° | 14 | 7 | 6 | 5 | M4 | $79.38 | ||
| ZTPNB10-3 | Bushing (Female) Only | 10 | +0.005/-0 | 3° | 14 | 7 | 6 | 5 | M4 | $79.38 | ||
| ZTPNB10-5 | Bushing (Female) Only | 10 | +0.005/-0 | 5° | 14 | 7 | 6 | 5 | M4 | $79.38 | ||
| ZTPNB13-1 | Bushing (Female) Only | 13 | +0.005/-0 | 1° | 14 | 7 | 6 | 5 | M4 | $79.38 | ||
| ZTPNB13-3 | Bushing (Female) Only | 13 | +0.005/-0 | 3° | 14 | 7 | 6 | 5 | M4 | $79.38 | ||
| ZTPNB13-5 | Bushing (Female) Only | 13 | +0.005/-0 | 5° | 14 | 7 | 6 | 5 | M4 | $79.38 | ||
| ZTPNB16-1 | Bushing (Female) Only | 16 | +0.005/-0 | 1° | 14 | 10 | 6 | 5 | M5 | $82.04 | ||
| ZTPNB16-3 | Bushing (Female) Only | 16 | +0.005/-0 | 3° | 14 | 10 | 6 | 5 | M5 | $82.04 | ||
| ZTPNB16-5 | Bushing (Female) Only | 16 | +0.005/-0 | 5° | 14 | 10 | 6 | 5 | M5 | $82.04 | ||
| ZTPNB20-1 | Bushing (Female) Only | 20 | +0.005/-0 | 1° | 19 | 13 | 9 | 8 | M6 | $89.08 | ||
| ZTPNB20-3 | Bushing (Female) Only | 20 | +0.005/-0 | 3° | 19 | 13 | 9 | 8 | M6 | $89.08 | ||
| ZTPNB20-5 | Bushing (Female) Only | 20 | +0.005/-0 | 5° | 19 | 13 | 9 | 8 | M6 | $89.08 | ||
| ZTPNB25-1 | Bushing (Female) Only | 25 | +0.005/-0 | 1° | 24 | 16 | 12 | 11 | M8 | $94.38 | ||
| ZTPNB25-3 | Bushing (Female) Only | 25 | +0.005/-0 | 3° | 24 | 16 | 12 | 11 | M8 | $94.38 | ||
| ZTPNB25-5 | Bushing (Female) Only | 25 | +0.005/-0 | 5° | 24 | 16 | 12 | 11 | M8 | $94.38 | ||
| ZTPNB8-1 | Bushing (Female) Only | 8 | +0.005/-0 | 1° | 13 | 5 | 6 | 5 | M3 | $79.38 | ||
| ZTPNP10-1 | Pin (Male) Only | 10 | +0.005/-0 | 1° | 14 | 7 | 6 | 5 | M4 | $158.75 | ||
| ZTPNP10-3 | Pin (Male) Only | 10 | +0.005/-0 | 3° | 14 | 7 | 6 | 5 | M4 | $79.38 | ||
| ZTPNP10-5 | Pin (Male) Only | 10 | +0.005/-0 | 5° | 14 | 7 | 6 | 5 | M4 | $79.38 | ||
| ZTPNP13-1 | Pin (Male) Only | 13 | +0.005/-0 | 1° | 14 | 7 | 6 | 5 | M4 | $164.07 | ||
| ZTPNP13-3 | Pin (Male) Only | 13 | +0.005/-0 | 3° | 14 | 7 | 6 | 5 | M4 | $79.38 | ||
| ZTPNP13-5 | Pin (Male) Only | 13 | +0.005/-0 | 5° | 14 | 7 | 6 | 5 | M4 | $79.38 | ||
| ZTPNP16-1 | Pin (Male) Only | 16 | +0.005/-0 | 1° | 14 | 10 | 6 | 5 | M5 | $178.14 | ||
| ZTPNP16-3 | Pin (Male) Only | 16 | +0.005/-0 | 3° | 14 | 10 | 6 | 5 | M5 | $82.04 | ||
| ZTPNP16-5 | Pin (Male) Only | 16 | +0.005/-0 | 5° | 14 | 10 | 6 | 5 | M5 | $82.04 | ||
| ZTPNP20-1 | Pin (Male) Only | 20 | +0.005/-0 | 1° | 19 | 13 | 9 | 8 | M6 | $188.72 | ||
| ZTPNP20-3 | Pin (Male) Only | 20 | +0.005/-0 | 3° | 19 | 13 | 9 | 8 | M6 | $89.08 | ||
| ZTPNP20-5 | Pin (Male) Only | 20 | +0.005/-0 | 5° | 19 | 13 | 9 | 8 | M6 | $89.08 | ||
| ZTPNP25-1 | Pin (Male) Only | 25 | +0.005/-0 | 1° | 24 | 16 | 12 | 11 | M8 | $75.86 | ||
| ZTPNP25-3 | Pin (Male) Only | 25 | +0.005/-0 | 3° | 24 | 16 | 12 | 11 | M8 | $94.38 | ||
| ZTPNP25-5 | Pin (Male) Only | 25 | +0.005/-0 | 5° | 24 | 16 | 12 | 11 | M8 | $94.38 | ||
| ZTPNP8-1 | Pin (Male) Only | 8 | +0.005/-0 | 1° | 13 | 5 | 6 | 5 | M3 | $158.75 |
