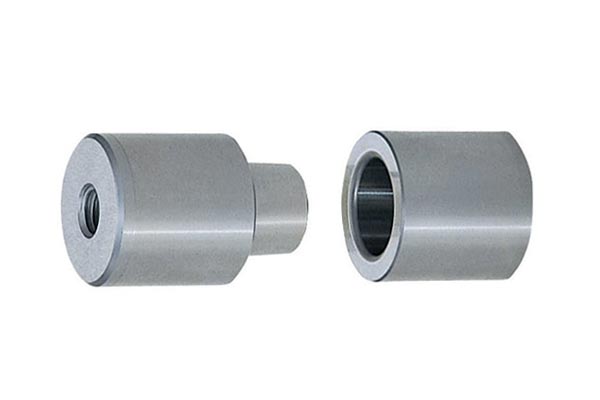

Picture of ZTPN25-3 Picture of ZTPN25-3 Picture of ZTPN25-3 Picture of ZTPN25-3

ZTPN25-3

$188.72
PCS Company's Metric JIS Extra Precision Tapered Round Locks, Standard Installation, Concentricity 0.003 or less, Full Set
The actual product may differ slightly from the image displayed on the website.
Product specifications
Type Full Set
D OD 25
D Tolerance +0.005/-0
A Angle 3°
L Shoulder Length 24
V Pin Major Diameter 16
E Pin Projection 12
F 11
M Thread M8
